Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
3 pin female socket
Type :
XLR connector
Application :
Power
Gender :
Female
Industrial electronics :
accessories
MOQ :
2 pieces
Price :
CN¥10.95/pieces 2-99 pieces
Description
Products Description

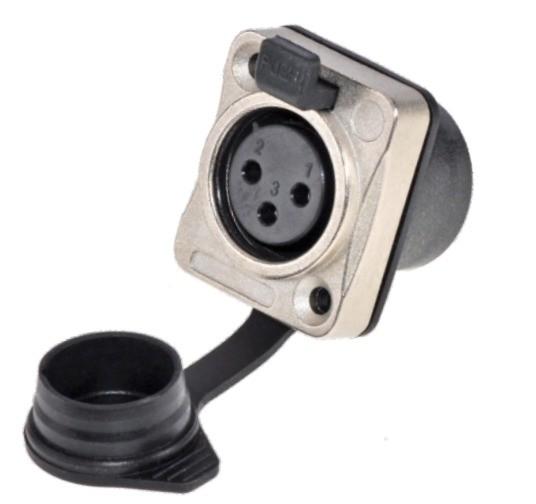

Waterproof XLR connector-3 pin female socket
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender

☑One hand can operation, push the button to pull it out
☑The contact pin is gold-plated
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Waterproof IP65
☑Wire diameter range: 5-8mm
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
3 pin female socket
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
3 pin female socket
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
3 pin male plug
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
3 pin male plug
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
3 pin male socket
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
3 pin male socket
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
3 pin female plug
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
3 pin female plug
1.Product parameters
Connection Type
XLR
Gender
female
2.Electrical parameters
Capacitance between contacts
≤4pF
Contact resistance
≤3mΩ
Dielectric strength
1.5kVdc
Insulation resistance
> 10GΩ (initial)
Rated current per contact
16A
Rated voltage
<50V
3.Mechanical parameters
Sign Cable O.D.
5-8mm
Insertion force
≤ 20N
Withdrawal force
≤ 20N
Service life
＞1000 mating cycles
Wire size
Max. 2.5 mm²
Wire size
Max. 14 AWG
Locking device
Latch lock
4.Material and environmental parameters
Boot
Polyurethan
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 HB
Protection class
IP65
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
Application area
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
Company Information
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
Patent & Certification
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
Exhibition activities
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
Packaging reference
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
Payment and logistics
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
FAQ
Outdoor Audio Video Connector Waterproof 3 Pin XLR Plug With Female Gender
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
