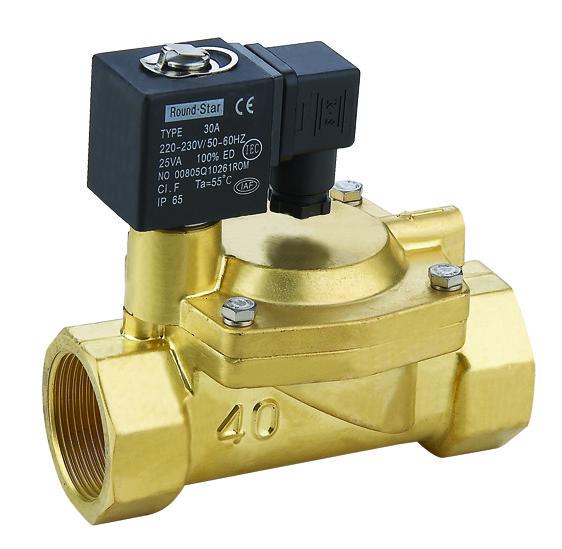

Brass Low Power Solenoid Valve Electric Air Valve Solenoid Direct Acting
Brass Low Power Solenoid Valve Electric Air Valve Solenoid Direct Acting
Specifications
Brand Name :
ROUND STAR
Model Number :
DFD-80ES
Certification :
CE
Place of Origin :
CHINA
MOQ :
5PCS
Price :
20-100
Supply Ability :
500
Packaging Details :
exporting standard package
1 :
1.Use on AC/DC solenoid valve，not change original solenoid valves structure
2 :
2.maintain low power，only 20% of normal coil power
3 :
Slowly heating-up, under long-time power-on working status,
4 :
4.the coils temperature≤40℃, longer life time
5 :
5.Instant and Strong electromagnetic attraction, 3 times more powerful than normal coil，enhance max working pressure
6 :
No abnormal noise when using AC voltage
MEDIUM TEMPERATURE :
LESS THAN 80 DEGREE
Description

G3" low power Slowly heating-up energy saving solenoid valve

  1. the direct-acting type diaphragm structure without pressure to open to extend the using field.
  2. Using the plate diaphragm structure opening and closing with reliable. Then extent product life.
  3. Can choose plastic type,. Explosion-proof energy-saving.

Mechanical properties:
1. Body material: Standard stainless steel, special selection of copper;
2, the internal components: Stainless Steel;
3, the sealing material: rubber (standard). Many other special composite materials;
4, hole diameter: 1/32 (specific models refer to the table);
5, connecting thread diameter: 1/8 NPT standard;
6, the electrical connection diameter: Explosion-proof pipe connection 1 / 2NPT;
7, protection class (UL & CSA certification): Class I, Div 1, Group C and D - Class II, Div 1, Groups E, F, and G; Div 2, Groups C, D, E, F, and G;
8, life: ≥500 million times, depending on the application and maintenance;
9, unit product weight: 0.3KG.

Brass Low Power Solenoid Valve Electric Air Valve Solenoid Direct Acting

Brass Low Power Solenoid Valve Electric Air Valve Solenoid Direct Acting
