Small Diaphragm Water Solenoid Valve , 1/2 Inch Solenoid Valve Two Way
Small Diaphragm Water Solenoid Valve , 1/2 Inch Solenoid Valve Two Way
Specifications
Brand Name :
ROUND STAR
Model Number :
RSP-A
Certification :
ISO CE ROHS
Place of Origin :
CHINA (YUYAO CITY)
MOQ :
negotiation
Price :
USD
Payment Terms :
T/T, Western Union
Supply Ability :
ask for advice
Delivery Time :
depend on the order quantity
Packaging Details :
package for exporting standard
voltage :
AC220～240V AC110V 50/60Hz 22VA DC24V DC12V 13W
interface size :
1/4＂ ～ 1/2＂
interface :
G thread NPT thread Rc thread
sealing material :
NBR(-5～80℃) EPDM VITON
working pressure :
0~16 bar
medium :
water、liquid、air、light oil（viscosity≤20cst）
Description

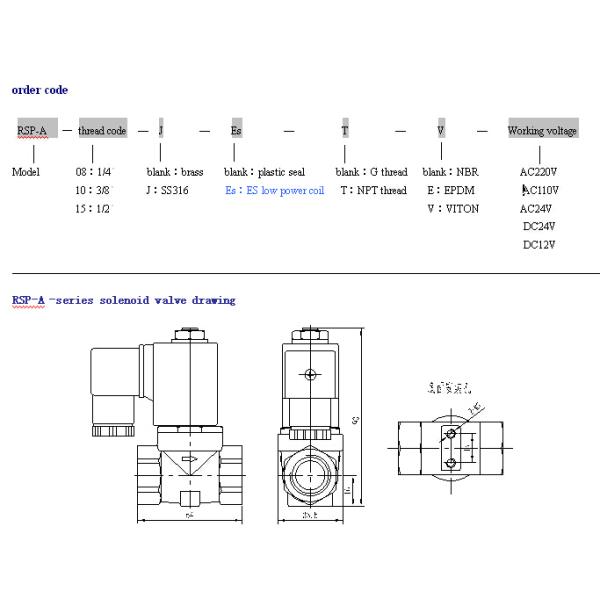

RSP-A mini diaphragm normally closed brass SS316 water air solenoid valve 1/4＂ ～ 1/2＂

RSP-A -series mini diaphragm(NC)solenoid valve specification table

(ES coil can match EPDM and VITON, but medium temperature must be ≤80℃)

interface

orifice

(mm)

Cv

 working pressure(bar)

medium

temperature

℃

seal

material

coil

insulation

 power

normal order code

min

pressure

 Max pressure normal coil Es coil

plastic seal

AC220V

G thread

sealing material:blank:NBR E:EPDM V:VITON

air gas

water

liquid light oil

 VA W

VA

W

AC

220

V

DC

24

V

AC

220

V

DC

24

V
AC DC brass SS316
1/4〃 10.5 1.5 0 16 16 80 NBR H 22 13 3 3 RSP-A-08W-AC220V RSP-A-08WJ-AC220V
10.5 1.5 0 16 16 130 EPDM H 22 13 RSP-A-08W-E-AC220V RSP-A-08WJ-E-AC220V
10.5 1.5 0 16 16 120 VITON H 22 13 RSP-A-08W-V-AC220V RSP-A-08WJ-V-AC220V

3/8〃

 10.5 1.5 0 16 16 80 NBR H 22 13 3 3 RSP-A-10W-AC220V RSP-A-10WJ-AC220V
10.5 1.5 0 16 16 130 EPDM H 22 13 RSP-A-10W-E-AC220V RSP-A-10WJ-E-AC220V
10.5 1.5 0 16 16 120 VITON H 22 13 RSP-A-10W-V-AC220V RSP-A-10WJ-V-AC220V
1/2〃 10.5 1.5 0 16 16 80 NBR H 22 13 3 3 RSP-A-15W-AC220V RSP-A-15WJ-AC220V
10.5 1.5 0 16 16 130 EPDM H 22 13 RSP-A-15W-E-AC220V RSP-A-15WJ-E-AC220V
10.5 1.5 0 16 16 120 VITON H 22 13 RSP-A-15W-V-AC220V RSP-A-15WJ-V-AC220V
1/4〃 10.5 1.5 0.1 16 16 80 NBR H 22 13 3 3 RSP-A-08-AC220V RSP-A-08J-AC220V
10.5 1.5 0.1 16 16 130 EPDM H 22 13 RSP-A-08-E-AC220V RSP-A-08J-E-AC220V
10.5 1.5 0.1 16 16 120 VITON H 22 13 RSP-A-08-V-AC220V RSP-A-08J-V-AC220V

3/8〃

 10.5 1.5 0.1 16 16 80 NBR H 22 13 3 3 RSP-A-10-AC220V RSP-A-10J-AC220V
10.5 1.5 0.1 16 16 130 EPDM H 22 13 RSP-A-10-E-AC220V RSP-A-10J-E-AC220V
10.5 1.5 0.1 16 16 120 VITON H 22 13 RSP-A-10-V-AC220V RSP-A-10J-V-AC220V
1/2〃 10.5 1.5 0.1 16 16 80 NBR H 22 13 3 3 RSP-A-15-AC220V RSP-A-15J-AC220V
10.5 1.5 0.1 16 16 130 EPDM H 22 13 RSP-A-15-E-AC220V RSP-A-15J-E-AC220V
10.5 1.5 0.1 16 16 120 VITON H 22 13 RSP-A-15-V-AC220V RSP-A-15J-V-AC220V

Small Diaphragm Water Solenoid Valve , 1/2 Inch Solenoid Valve Two Way

Founded in 1965, Yuyao No.4 Instrument Factory has been a professional manufacturer of solenoid valves and has enjoyed an excellent reputation through the past more than 50 years in China. With the introduction of foreign cutting-edge technology, and the sustained innovation and self-improving, the company has mastered the key technology and is keeping pioneer position in the field of fluid solenoid valve.

The company is equipped with superior production machines, advanced process flows, complete testing systems; the products have sophisticated structure, reliable performance, fine outlook and reasonable price, covering over 40 series and 3000 specifications, having been exported to all over the whole world since 2004.

Small Diaphragm Water Solenoid Valve , 1/2 Inch Solenoid Valve Two Way

Small Diaphragm Water Solenoid Valve , 1/2 Inch Solenoid Valve Two WaySmall Diaphragm Water Solenoid Valve , 1/2 Inch Solenoid Valve Two WaySmall Diaphragm Water Solenoid Valve , 1/2 Inch Solenoid Valve Two WaySmall Diaphragm Water Solenoid Valve , 1/2 Inch Solenoid Valve Two Way
