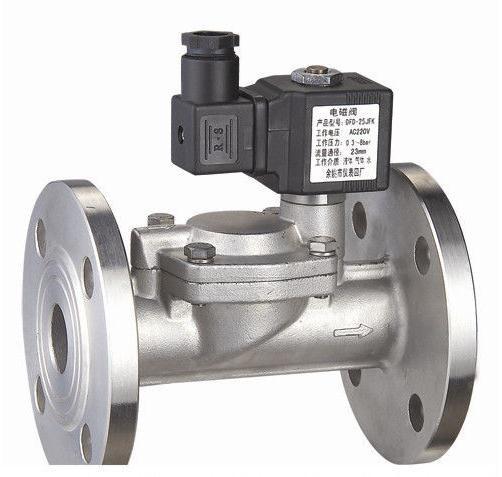

Water Air Gas Fuel NO Solenoid Valve 2 Way Pilot Operated Stainless Steel
Water Air Gas Fuel NO Solenoid Valve 2 Way Pilot Operated Stainless Steel
Specifications
Brand Name :
ROUND STAR
Model Number :
DFD
Certification :
ISO CE ROHS
Place of Origin :
CHINA
MOQ :
5 pieces
Price :
USD
Payment Terms :
T/T, Western Union
Supply Ability :
ask for advice
Delivery Time :
3~14 working days
Packaging Details :
carton pallet
material :
stainless steel cast iron
interface type :
flange
interface :
2-way
operate :
pilot operated
working type :
normally open
medium :
water air liquid
Description

Water Air Gas Fuel NO Solenoid Valve 2 Way Pilot Operated Stainless Steel

Water solenoid valve is a pressure difference between the use of media work in direct acting solenoid valve, which uses membrane structure, with opening and closing fast, stable performance, ease of use, reliability, long life and other characteristics; the valve dirt adept can be used in rivers, lakes, sea and a variety of long-term artificial waters

Water Air Gas Fuel NO Solenoid Valve 2 Way Pilot Operated Stainless Steel

DFD-series flange(NO)solenoid valve dimensions table (PN=1.6MPa GB/T9113.1-2000)

model

L

D

H

 K

d

C

f

n-φ

 valvebody material weight(Kg)
DFD-25JFK 141 115 165 85 65 16 3 4-φ14 SS304 2.9
DFD-32JFK 158 145 185 100 76 18 3 4-φ18 4.4
DFD-40JFK 173 150 196 110 84 18 3 4-φ18 5.1

DFD-50JFK

204

165

200

 125

99

20

3

4-φ18

 7.7
DFD-65JFK 256 185 248 145 118 20 3 4-φ18 12.5
DFD-80JFK 277 200 268 160 132 20 3 8-φ18 15.3
DFD-100JFK

350

220

290

180

156

22

3

 8-φ18 23.2
DFD-150JFK 450 285 402 240 211 24 3 8-φ22 62
DFD-40CFK 168 150 196 110 84 18 3 4-φ18 Cast iron 6

DFD-50CFK

200

165

200

125

99

20

3

4-φ18

 9.2
DFD-65CFK 259 185 277 145 118 20 3 4-φ18 15.1

DFD-80CFK

278

200

289

160

132

20

3

8-φ18

 17

DFD-100CFK

350

220

316

180

156

22

3

8-φ18

 23.2
DFD-125CFK 425 250 398 210 186 22 3

8-φ18

 54.7
DFD-150CFK 450 285 430 240 211 24 3 8-φ22 55.2
DFD-200CFK 560 340 516 295 266 24 3 12-φ22 112

DFD-series SS304 and cast iron flange connection(NO)solenoid valve specification table

(ES coil can match EPDM and VITON, but medium temperature must be ≤80℃)

model

orifice

(mm)

Cv

 working pressure(bar)

max

medium

temp.

℃

coil

insulation

degree

 power normal order code

min

pressure

 Max working pressure normal coil Es coil

plastic seal

AC220V

sealing material:NBR
water hotwater air liquid light oil VA W VA W

AC

220

V

DC

24

V

AC

220

V

DC

24

V
AC DC
DFD-25JFK 25 12 0.3 8 8 80 H 18 14 4 4 DFD-25JFK - AC220V
DFD-32JFK 32 24 0.3 8 6 80 H 18 14 4 4 DFD-32JFK - AC220V
DFD-40JFK 40 30 0.3 8 6 80 H 18 14 4 4 DFD-40JFK - AC220V

DFD-50JFK

 50 48 0.3 8 6 80 H 18 14 4 4 DFD-50JFK - AC220V
DFD-65JFK 65 52 0.3 8 6 80 H 18 14 4 4 DFD-65JFK - AC220V
DFD-80JFK 80 82 0.3 8 6 80 H 18 14 4 4 DFD-80JFK - AC220V
DFD-100JFK 100 128 0.3 8 6 80 H 18 14 4 4 DFD-100JFK - AC220V
DFD-150JFK 150 292 0.3 8 6 80 H 45 30 5 6 DFD-150JFK - AC220V
DFD-40CFK 40 30 0.3 8 6 80 H 18 14 4 4 DFD-40CFK - AC220V

DFD-50CFK

 50 48 0.3 8 6 80 H 18 14 4 4 DFD-50CFK - AC220V
DFD-65CFK 65 52 0.3 8 6 80 H 18 14 4 4 DFD-65CFK- AC220V

DFD-80CFK

 80 82 0.3 8 6 80 H 18 14 4 4 DFD-80CFK - AC220V

DFD-100CFK

 100 128 0.3 8 6 80 H 18 14 4 4 DFD-100CFK - AC220V
DFD-125CFK 125 222 0.3 8 6 80 H 45 30 5 6 DFD-125CFK - AC220V
DFD-150CFK 150 292 0.3 8 6 80 H 45 30 5 6 DFD-150CFK - AC220V
DFD-200CFK 200 513 0.3 8 6 80 H 45 30 5 6 DFD-200CFK - AC220V
