3/4 Inch Normally Closed High Pressure Solenoid Valve Water Stainless Steel
3/4 Inch Normally Closed High Pressure Solenoid Valve Water Stainless Steel
Specifications
Brand Name :
ROUND STAR
Model Number :
YSE
Certification :
ISO CE ROHS
Place of Origin :
CHINA (YUYAO CITY)
MOQ :
negotiation
Price :
USD
Payment Terms :
T/T, Western Union
Supply Ability :
consult
Delivery Time :
3 working days~ 2 weeks
Packaging Details :
carton pallet for exporting standard
material :
stainless steel
interface size :
1/4＂ ～ 1＂
working pressure :
0~250 bar
operate :
DN1～3 direct acting DN10～25 pilot operated
sealing material :
PTFE
medium :
water、liquid、air、light oil（viscosity≤20cst）
Description

YSE series 2-way Stainless Steel normally closed high pressure solenoid valve 1/4＂ ～ 1＂

normally closed high pressure solenoid valve working principle

NC: When the coil is energized, the pilot spool pull the pilot hole is open, the pressure relief valve chamber, the piston on the lower chamber medium pressure to promote the solenoid valve is opened; When the coil power, the pilot valve by spring return, pilot hole is closed, valve chamber and pressurized by the piston return spring throttle thrust, the solenoid valve is closed.

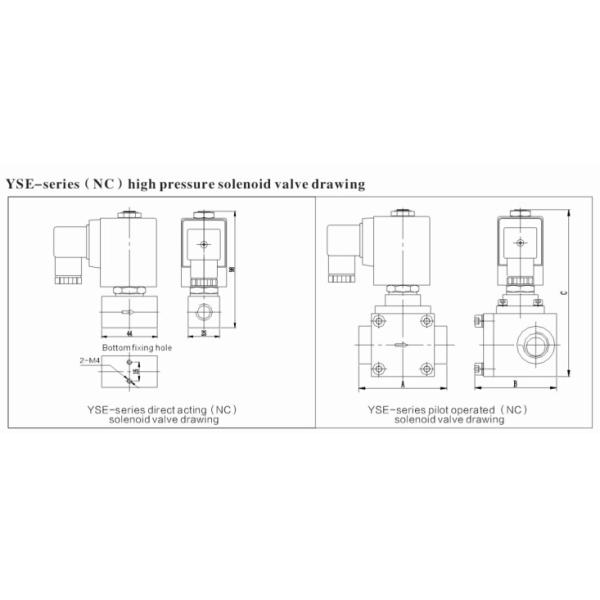

YSE-series(NC)high pressure solenoid valve specification table

model

Orifice size

( mm)

 interface

Cv

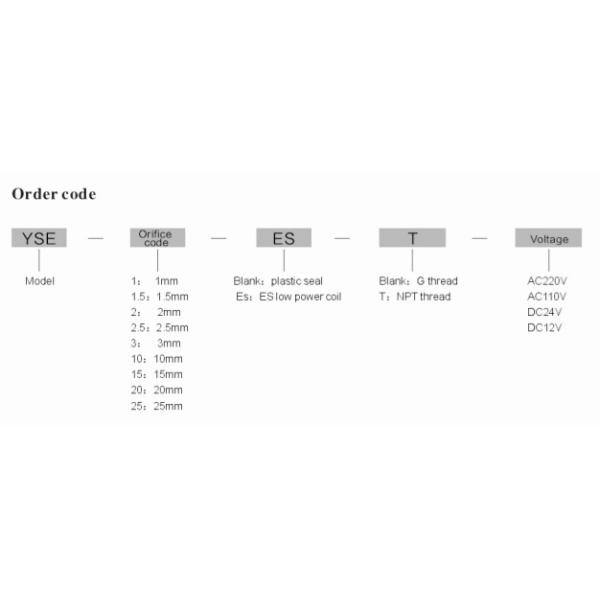

 working pressure(bar) dimension normal order code

weight

( Kg)

AC

220V

DC

24V

length×width×height

A×B×C

( mm )

Plastic seal

AC220V

G thread
YSE-1 1

1/4＂

or

3/8＂

 0.04 0～250 0～200 44×25×98 YSE-1- AC220V 0.65
YSE-1.5 1.5 0.08 0～160 0～120 44×25×98 YSE-1.5-AC220V 0.65
YSE-2 2 0.15 0～130 0～80 44×25×98 YSE-2- AC220V 0.65
YSE-2.5 2.5 0.20 0～80 0～60 44×25×98 YSE-2.5-AC220V 0.65
YSE-3 3 0.25 0～60 0～40 44×25×98 YSE-3- AC220V 0.65
YSE-10 10 3/8＂ 3.5 6～160 6～120 60×55×126 YSE-10 - AC220V 1.20
YSE-15 15 1/2＂ 4.7 6～160 6～120 70×65×138 YSE-15 - AC220V 1.55
YSE-20 20 3/4＂ 7.0 6～160 6～120 80×74×142 YSE-20 - AC220V 1.93
YSE-25 25 1＂ 11.0 6～160 6～120 90×87×152 YSE-25 - AC220V 2.64

3/4 Inch Normally Closed High Pressure Solenoid Valve Water Stainless Steel

3/4 Inch Normally Closed High Pressure Solenoid Valve Water Stainless Steel

3/4 Inch Normally Closed High Pressure Solenoid Valve Water Stainless Steel

Founded in 1965, Yuyao No.4 Instrument Factory has been a professional manufacturer of solenoid valves and has enjoyed an excellent reputation through the past more than 40 years in China. With the introduction of foreign cutting-edge technology, and the sustained innovation and self-improving, the company has mastered the key technology and is keeping pioneer position in the field of fluid solenoid valve.

3/4 Inch Normally Closed High Pressure Solenoid Valve Water Stainless Steel
