Electric Air Solenoid Valve , Air Actuated Solenoid Valve Normally Closed 2 Inch
Electric Air Solenoid Valve , Air Actuated Solenoid Valve Normally Closed 2 Inch
Specifications
Brand Name :
ROUND STAR
Model Number :
ZW
Certification :
ISO CE ROHS
Place of Origin :
CHINA (YUYAO CITY)
MOQ :
negotiation
Price :
USD
Payment Terms :
T/T, Western Union
Supply Ability :
consult
Delivery Time :
3 working days~ 2 weeks
Packaging Details :
carton pallet for exporting standard
material :
brass SS304
interface size :
3/8＂ ～ 2＂
interface :
G thread NPT thread
working pressure :
0~10 bar
sealing material :
NBR EPDM VITON
medium :
water、liquid、air、light oil（viscosity≤20cst）
Description

ZW series 2-way semi direct acting normally closed water air solenoid valve 3/8＂ ～ 2＂

Characteristic:

1. Direct lifting diaphragm construction;
2. Open from zero bar for low pressure system use;
3. High frequency of flying lead coil.

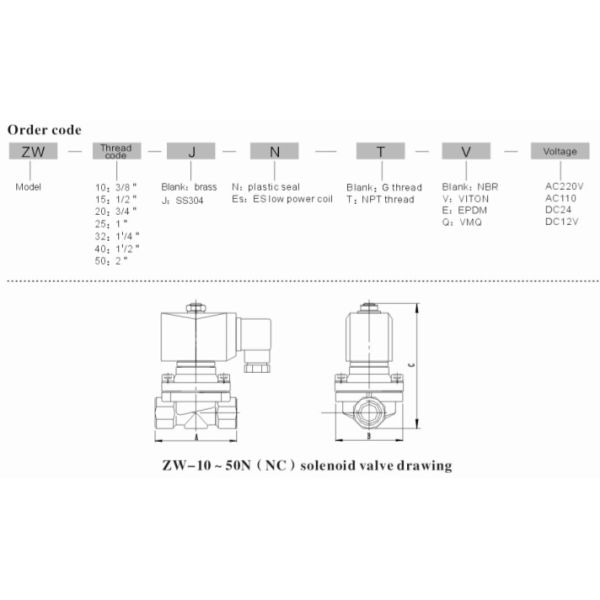

Electric Air Solenoid Valve , Air Actuated Solenoid Valve Normally Closed 2 Inch

ZW-series(NC)solenoid valve specification table

model

orifice size

( mm )

 interface size Cv working pressure(bar

length×width×height

( mm )

 Weight (Kg)
AC220V DC24V brass SS
ZW-10N 15 3/8＂ 3.5 0～10 0～8 60×45×101 0.7 0.62
ZW-15N 15 1/2＂ 3.5 0～10 0～8 60×45×101 0.7 0.62
ZW-20N 20 3/4＂ 7.6 0～10 0～8 67×50×107 0.74 0.62
ZW-25N 25 1＂ 12 0～10 0～8 82×66×115 1.1 1.0
ZW-32N 32 11/4＂ 24 0～10 0～6 102×82×147 2.0 1.8
ZW-40N 40 11/2＂ 29 0～10 0～6 110×85×153 2.2 2.0
ZW-50N 50 2＂ 48 0～10 0～6 134×108×166 3.1 2.8

ptions:

EPDM(-10～130℃) VITON(-10～120℃)

Es low power energy saving coil, LED light connector

Rc thread, lead wire iron coil

Founded in 1965, Yuyao No.4 Instrument Factory has been a professional manufacturer of solenoid valves and has enjoyed an excellent reputation through the past more than 40 years in China. With the introduction of foreign cutting-edge technology, and the sustained innovation and self-improving, the company has mastered the key technology and is keeping pioneer position in the field of fluid solenoid valve.
