Rsz Series Self Sustaining Bistable Solenoid Valve 3/8 - 2
Rsz Series Self Sustaining Bistable Solenoid Valve 3/8 - 2
Rsz Series Self Sustaining Bistable Solenoid Valve 3/8 - 2
Rsz Series Self Sustaining Bistable Solenoid Valve 3/8 - 2
Specifications
Brand Name :
Round Star
Model Number :
RSZ
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
3,000pcs per month
Delivery Time :
10 working days after received your payment
Packaging Details :
Carton, wooden case, exporting condition
working medium :
liquid、water、air、light oil
medium temperature :
-5 ～ 80℃
working pressure :
0.3～8bar
working type :
pilot operated
valvebody material :
brass SS316
sealing material :
NBR
interface :
G thread NPT thread
working voltage :
DC6V DC9V DC12V DC24V 3W IP67 H degree
Description

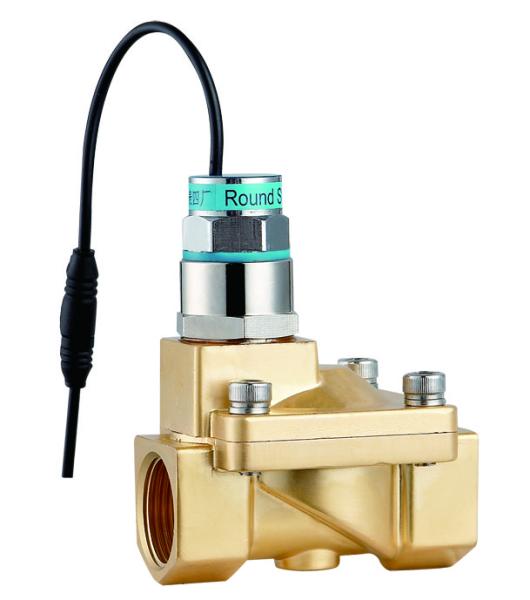

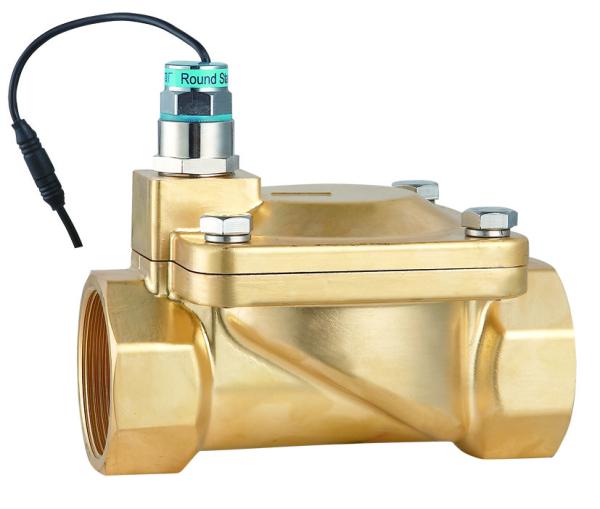

RSZ series 2-way bistable self-sustaining pulse solenoid valve 3/8＂～ 2＂

Widely used in water-saving irrigation, automatic induction sanitary ware, landscaping, automatic irrigation, drip irrigation and other automation control.

working medium:air water liquid

medium temperature:-5～80℃

Working type:direct current pulse type(NC )

valvebody material:brass SS316

sealing material:NBR

interface:G thread NPT thread

working voltage:DC2.5～6.5V IP67

coil resistance:25Ω

min current:190mA

pulse width:≥10ms

Rsz Series Self Sustaining Bistable Solenoid Valve 3/8

Rsz Series Self Sustaining Bistable Solenoid Valve 3/8

RSZ series specification

model

Orifice

( mm )

 interface Cv

Working pressure

(bar)

A×B×C

( mm )

 Normal order code Weight(Kg)

Voltage DC6V

Copper body G thread
RSZ - 10 13 3/8＂ 3.5 0.3～8 66×48×94 RSZ–10 - DC6V 0.5
RSZ - 15 13 1/2＂ 3.5 0.3～8 66×48×94 RSZ–15 - DC6V 0.5
RSZ - 20 20 3/4＂ 7.6 0.3～8 75×58×100 RSZ–20 - DC6V 0.65
RSZ - 25 25 1＂ 12 0.3～8 96×69×107 RSZ–25 - DC6V 1.2
RSZ - 32 32 11/4＂ 20 0.3～8 131×96×132 RSZ–25 - DC6V 2.6
RSZ - 40 40 11/2＂ 30 0.3～8 131×96×132 RSZ–40 - DC6V 2.4
RSZ - 50 50 2＂ 48 0.3～8 165×120×147 RSZ–50 - DC6V 3.7

Rsz Series Self Sustaining Bistable Solenoid Valve 3/8
