18.9L Manual Bottle Blowing Equipment Machine For 5 Gallon PET Bottle
18.9L Manual Bottle Blowing Equipment Machine For 5 Gallon PET Bottle
18.9L Manual Bottle Blowing Equipment Machine For 5 Gallon PET Bottle
18.9L Manual Bottle Blowing Equipment Machine For 5 Gallon PET Bottle
18.9L Manual Bottle Blowing Equipment Machine For 5 Gallon PET Bottle
18.9L Manual Bottle Blowing Equipment Machine For 5 Gallon PET Bottle
Specifications
Brand Name :
Waterpro
Model Number :
SBM-18.9L
Place of Origin :
China
MOQ :
1 set
Price :
USD6600-USD9800/set
Payment Terms :
T/T
Supply Ability :
10 set/month
Delivery Time :
30days
Packaging Details :
export wooden case
Neck Diameter(mm) :
55mm
Bottle Volume(ml) :
18.9L
cavity: :
one cavity
Max.Bottle Height(mm) :
550mm
Max.Bottle Diameter(mm) :
300mm
Voltage :
380V/220V
Weight (KG) :
2000 KG
Blow Moulding Type :
Stretch Blow Moulding
Machine size :
2100*700*1900mm
Description

18.9L Manual Semi Automatic Pet Bottle Pet Blowing Machine For 5 Gallon PET bottle

Description:

3 to 5 gallon pet bottle Blowing molding machine, 15L 20L 5 Gallon water bottle container blow
Product Description
1. Using the new clamping system with double crank four tie-bars,the cross balanced fixed glide.
2. The seal,the stretch use the parallel bars union and combined design,which is advantageous to the product formation.
3. The advanced air course design,the single-channel or single-channel air admission;low pressure for clamping,sealing and stretching;the high pressre for blowing the bottle.
4. PLC control system,the operaton is easy.

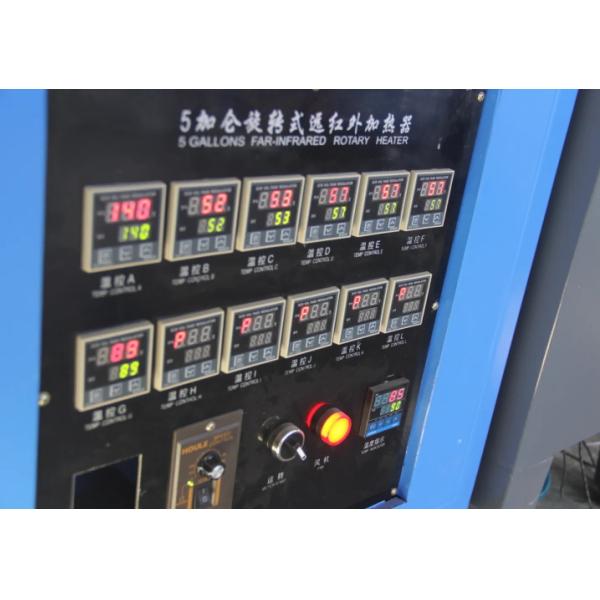

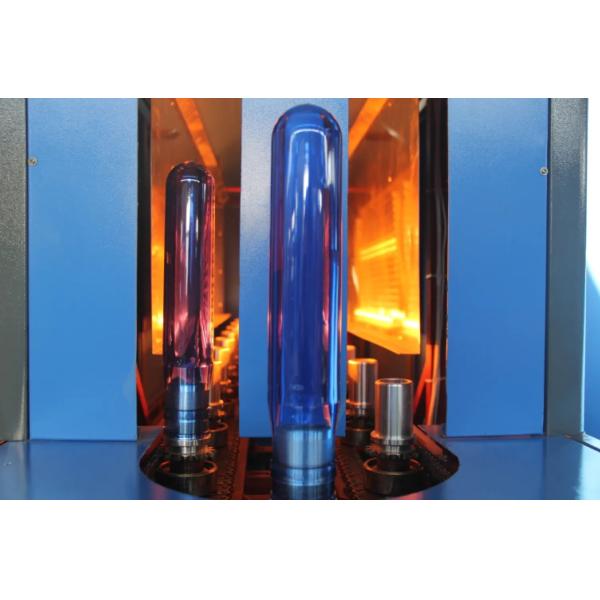

5. With infrared heating,controllable constant pressure control,frequency conversion,thus achieves blows the perfect bottle.

Specification:

Model
SBM-18.9L
(One Blower, One Heater)
Clamping Force
220KN
Clamping Stroke
450 MM
Max. Stretching Stroke
660MM
Number of Cavities
1 Cavity
Theoretical Output
80-100 BPH(7-25L, 1cav)
Max. Mold Thickness
400MM
Voltage Standard
380v/3PH/50Hz
Total Power (Full Loaded)
20-25KW
Max. Container Volume
20L
Neck Diameter Range
50-120mm
Max. Container Diameter
400mm
Max. Container Height
600mm
Low Air compressor
10Bar
High Air compressor
30-40Bar
Blow molding machine
2100*700*1900mm
Preform Heater
2200*700*1600mm
Net Weight
2000kgs

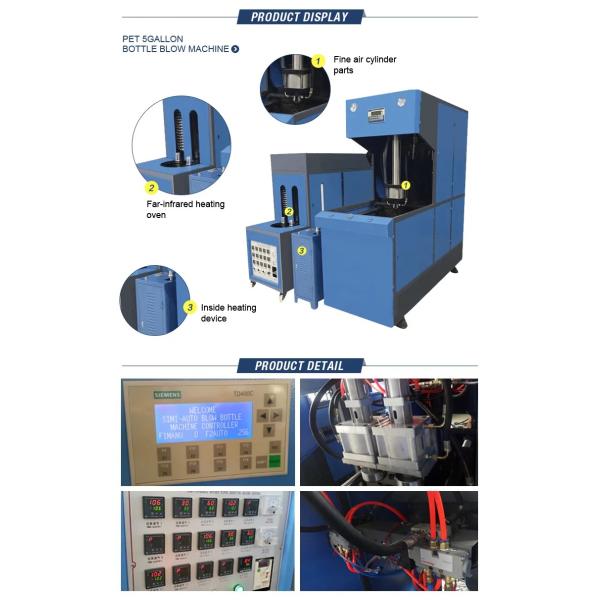

Product details:

18.9L Manual Bottle Blowing Equipment Machine For 5 Gallon PET Bottle

18.9L Manual Bottle Blowing Equipment Machine For 5 Gallon PET Bottle

18.9L Manual Bottle Blowing Equipment Machine For 5 Gallon PET Bottle

18.9L Manual Bottle Blowing Equipment Machine For 5 Gallon PET Bottle

18.9L Manual Bottle Blowing Equipment Machine For 5 Gallon PET Bottle
