Specifications
Brand Name :
DSSD
Model Number :
kaplan turbine
Certification :
iso,tuv
Place of Origin :
china
MOQ :
1
Price :
Negotiation
Payment Terms :
D/P, D/A, L/C, T/T
Supply Ability :
1000SET
Delivery Time :
6 months
Packaging Details :
Wooden packing
Runner material :
Stainless steel ZG06Cr13Ni4Mo or casting iron
Oem :
Yes
Rated rotor speed :
200rpm 300rpm 500rpm 600rpm 750rpm 1000rpm
Frequency :
50Hz/60Hz
Product name :
Water turbine,Hydro Power Generator Stator and Rotor,river dam small hydro pelton wheel hydro turbine,Hydro Turbine Type Equipment Water Turbine and Generator,Pelton Water Turbina Wheel with Nozzles and Pelton Generator for Sale
Color :
Customer's Requirements
Rated voltage :
400V 800V 6300V 10500V
Power range :
50KW-70MW
Description

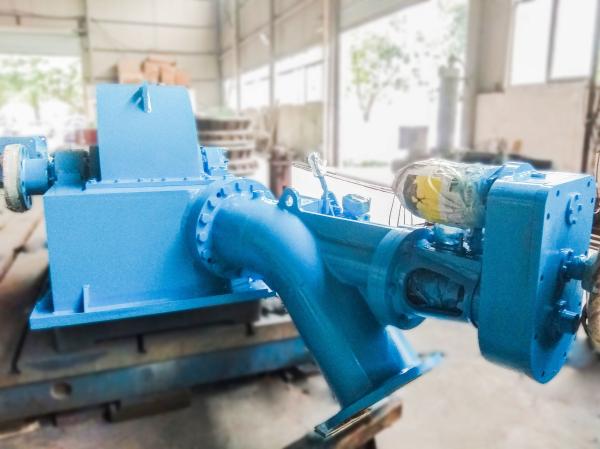

100kw 500kw Turgo Hydro Turbine With Synchronous/Customized Turgo Generator

PRODUCT DESCRIPTION
Turgo is a kind of impulse turbine. Its nozzle make the angle of 22.5°with the rotating plane of the runner.

The Turgo turbine is an impulse water turbine designed for medium head applications. It is a modification of Pelton wheel where the runnner is a cast wheel whose shape generallly resembes a fian blade that is closed on the outer edges. Operational Turgo turbines achieve efficiencies of about 87%. In factory and lad tests, Turgo turbines perform with efficiencies of up to 90%. It works with net heads between 15 and 300m.

PRODUCT DETAILS

100kw 500kw Turgo Turbine Generator With Synchronous High Flow Ability

Water Head15m-300m
Runner Diameters0.45m-5m
Power Range100KW to 70MW
Frequency50HZ/60HZ
Generator Voltage400V, 800V, 6300V, 10500V
Layout patternHorizontal or Vertical
Material(blades)Stainless Steel ZG0Cr13Ni4Mo
ExcitationBrushless or Static excitation system
Generator InsulationF/F
Lifespan30~50 years
ManufacturerDeyang Dongsen Hydropower Equipment Co., Ltd.

PROJECT APPLICATION
100kw 500kw Turgo Turbine Generator With Synchronous High Flow Ability
This belongs to customized products. We could design products according to your requirement. All of our products are strictly designed and manufactured under ISO9001 quality management system and TUV, BV.
