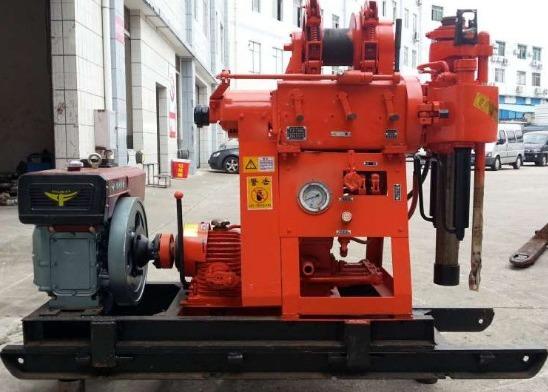

Multifunction Water Borehole Drilling Machine For Different Field Drilling
Multifunction Water Borehole Drilling Machine For Different Field Drilling
Multifunction Water Borehole Drilling Machine For Different Field Drilling
Multifunction Water Borehole Drilling Machine For Different Field Drilling
Specifications
Brand Name :
Shitan
Model Number :
XY-1
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Plastic film and Standard export wooden box
Product name :
Geological Drilling Rig Machine
Weight :
600 KG
Geological :
soil, rock, hard rock,
Drilling depth :
50-100 Meter
Type :
portable type
Application :
Different Field Drilling
Power type :
Diesel
Usage :
Water Well,Geotechnical engineering,physical prospecting
Name :
Borehole Drilling Machine,Water Well Drilling Machine
Drilling angle :
90 ~75°
Description

Multifunction Geological Drilling Rig Machine For Different Field Drilling

Product description

Shitan geological drilling machine is multifuntion type drilling rig.

1. It can be used in geological drilling or soil sampling investigation

2. It is also widely used in shallow water well drilling, it is more inexpensive for home to get a well

3. Irrigation drilling also can use this machine

Product technical data
Type Geological Drilling Rig Machine
Drill Swivel Head

Drilling depth

 Max.100m

Spindle speed

(3-speed)

142, 285, 570 r/m

Initial Hole diameter

 110mm Spindle stroke 450kmm
Drill rod diameter 42mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN

Product features

1. The oil pressure feeding mechanism can improve drilling efficiency and reduce the labor intensity.

2. A ball mounted card blessing mechanism replaces the chuck which can carry out without stopping the lever, easy to operate, safe and reliable.

3. Handle concentration, easy operation.

4. It is compact.The drill, water pump and diesel engine are installed on the same base, which occupies a small area.

5. It is light in weight, strong in decomposition and easy to remove .And it can be used in plains and mountains

Clients' questions
1. How much will it take to buy one set drilling rig ?
Kindly know that we are a factory, the price ranges from 1500 US dallars to 5000 US dallars. We'd like to introduce
the most suitable type for you based on your requirements.
2. How long will it take to drilling a new water well?
With our drilling rig, the drill efficiency for your reference ,
6-9 meters per hour for drilling soil
2-3 meters per hour for drilling rock
3. How to install this rig? How to operate this rig?

Don't worry, buy our products, we will give you professional guidance.

Working photos
Multifunction Water Borehole Drilling Machine For Different Field DrillingMultifunction Water Borehole Drilling Machine For Different Field DrillingMultifunction Water Borehole Drilling Machine For Different Field DrillingMultifunction Water Borehole Drilling Machine For Different Field Drilling
