ST-180 Hydraulic Driven Core Drilling Rig Machine Flexible for Core Drilling and Mining
ST-180 Hydraulic Driven Core Drilling Rig Machine Flexible for Core Drilling and Mining
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST-180
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-10 days
Drilling Depth :
Max. 180m
Hole Diameter :
100mm
Max Speed :
790
Weight :
620kg
Drill Rod :
42 or 50 mm
Description

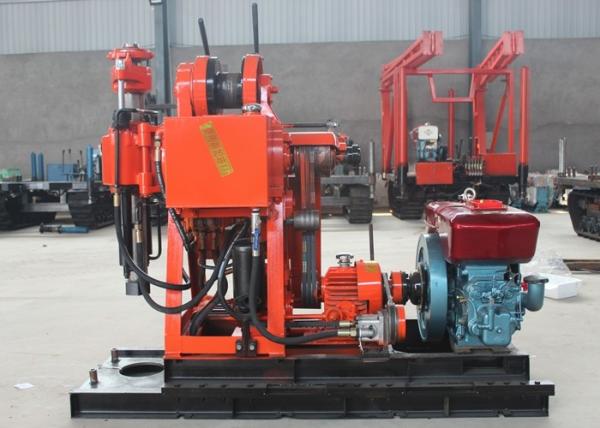

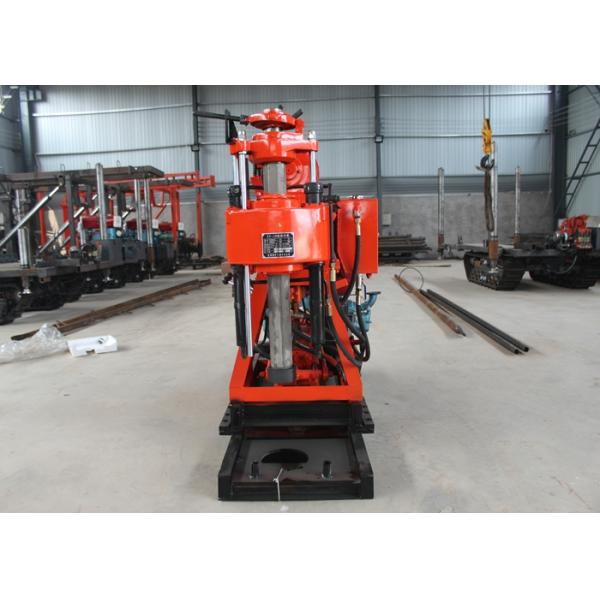

ST-180 Hydraulic-Driven Core Drilling Rig Machine Flexible for Core Drilling and Mining

Product Introduction:

ST-180 core drilling rig machine is a kind of hydraulic-driven,spindle, small-diameter core drill with fairly powerful drilling force. It is mainly suitable for exploration of metal or non-mental solid mineral ore bed.It is widely applied in core drill with diamond bit or tungsten-carbide tipped bit in the field of geology,metallurgy,coal mine,hydrological and engineering drilling.It can also be used in the fields of superficial-zone petroleum and natural gas mining,mines’ gallery ventilation and water discharge tunnel drilling as well as large-diameter hole foundation stake drilling.

The machine is fit for engineering works of inclined and vertical hole drilling.It is compact in construction,rational in overall arrangement,moderate in weight,convenient in assembling and wide in range of rotation speed.Equipped with water brake.

Product Parameter:

Drilling Rig
Drilling diameter(mm) 75,91,110,130,150,300
Drilling depth (m) 180,150,100,70,50,30
Drill pipe diameter (mm) 42,50
Drilling angle(°) 90~75
Equipment size(L * B * H) 1750 * 780 * 1273 (mm)
Rig weight (except engine) 595
Gyrator
Spindle speed (four gear) (r/min) 71,182,310,790
Spindle maximum feed pressure(KN) 15
Spindle maximum lifting force(KN) 25
Spindle maximum output torque(KN• m) 1.5
Winch assembly
Winch maximum lifting force (single rope) 20
Reel speed (r/min) 20,39,85,170
Reel circumferential speed(m/s) 0.172,0.345,0.738,1.476
Reel diameter(mm) 140
Wire rope diameter(mm) 9.3
Wire rope density (m) 40
Brake diameter(mm) 278
Brake band width (mm) 50
Water pump
Pump type Horizontal single cylinder double acting
Maximum displacement (motor)(L/min) 95(77)
Work pressure (Mpa) 1.2
Cylinder diameter (mm) 80
Piston stroke(mm) 100
The maximum allowable pressure (Mpa) 1.2
Oil pump
Oil pump type YBC -20/125
Nominal pressure (Mpa) 12.5
Rated flow(ml/r) 20
Rated speed(r/min) 800-1500
Diesel engine or motor
Diesel engine ZS 1115
Rated power (KW) 16.2
Rated speed (r/min) 2200
Rated pressure(Mpa) 11
Motor type Y160 - 4
