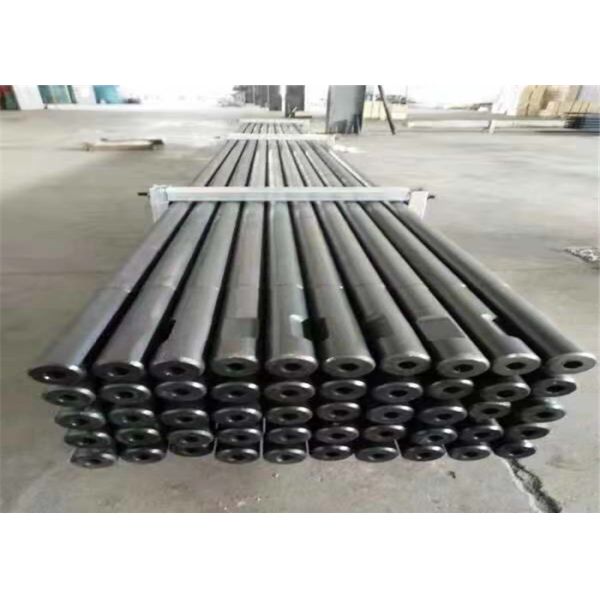

Crawler Mounted Core Drilling Rod For Geology Investigation Q345 Cr Steel Materials
Crawler Mounted Core Drilling Rod For Geology Investigation Q345 Cr Steel Materials
Crawler Mounted Core Drilling Rod For Geology Investigation Q345 Cr Steel Materials
Crawler Mounted Core Drilling Rod For Geology Investigation Q345 Cr Steel Materials
Specifications
Brand Name :
ShiTan
Model Number :
T51
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
USD20-23/PC
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
2000000PCS/YEAR
Delivery Time :
Within 7-12 days
Packaging Details :
No Packing
Name :
Crawler-Mounted Core Drilling Rod
Material :
Q345 Cr steel
No. :
Φ75
Type :
spiral
length :
1000-3000mm
Brand :
Shitan
Description

Quality Crawler-Mounted Core Drilling Rod Used For Geology Investigation

Characteristics

1. It adopts plug-in threaded connection, which is convenient and quick to disassemble, good in sealing,

high in tensile strength and high in pile quality. Good verticality for easy disassembly and installation.
2. This product adopts A3, 4mm thick coiled plate, ribbed joint adopts 35# cast steel piece, and pipe

joint is welded on both sides.
3. This product is tested by water and gas mixed test before leaving the factory.

Technical Parameter

No. Diameter Length Form of screw-thread Production technology Male and female connect
1 34mm 500-300mm Taper thread Friction welding Male and female connect
2 42mm 500-300mm Taper thread Friction welding Male and female connect
3 50mm 500-300mm Taper thread Friction welding Male and female connect
4 63.5mm 500-300mm Taper thread Friction welding Male and female connect
5 73mm 500-300mm Taper thread Friction welding Male and female connect
6 89mm 500-300mm Taper thread Friction welding Male and female connect
7 35mm 500-300mm Taper thread Ontology threading Joint connect
8 42mm 500-300mm Taper thread Ontology threading Joint connect
9 50mm 500-300mm Taper thread Ontology threading Joint connect
10 60mm 500-300mm Taper thread Ontology threading Joint connect

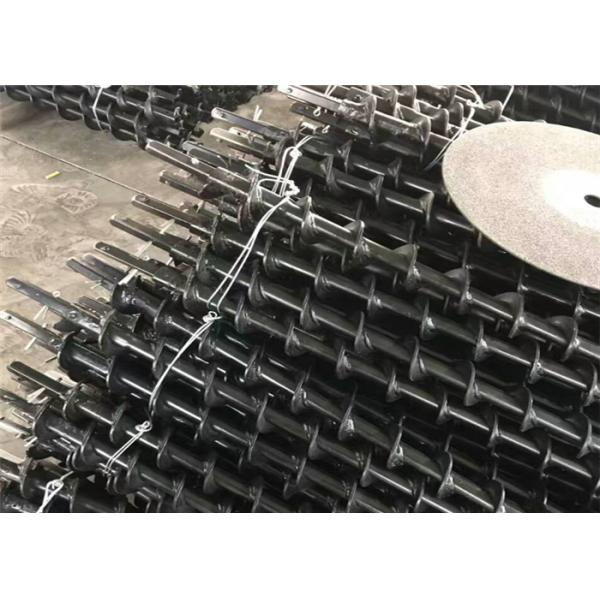

Core drilling rod introduction

The drilling rod adopts the quick connection method of square or hexagon. When used, it is automatically

locked by spring pin. It is equipped with U-shaped or semi-ring type anti-off-pin to make the torque of the

drill pipe reach the best state. This series of products is mainly used with portable or hand-held drilling rigs.

The drill pipe is light weight, quick connection, fast slag discharge speed and greatly improved work efficiency.

It is called high-efficiency auger drill pipe.


The drilling rod are widely used in the drilling of water exploration gas in coal seam and near coal seam

geological conditions, divided into water-passing type and non-water-passing type.
