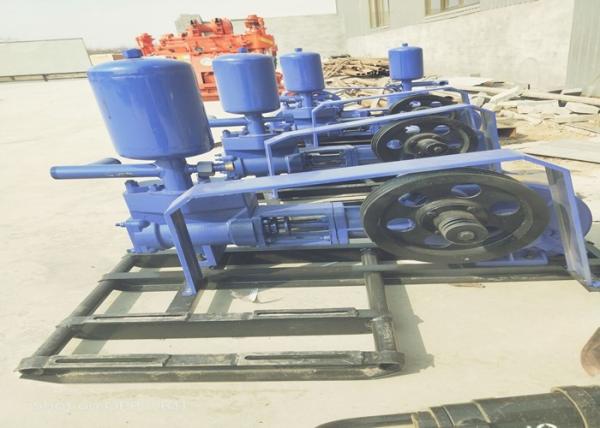

High Quality BW 90 Mud Pump for Construction and Geothermal Water Well Drilling
High Quality BW 90 Mud Pump for Construction and Geothermal Water Well Drilling
Specifications
Brand Name :
JINZHOU SHITAN
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20000 sets per year
Delivery Time :
7-10 days
Packaging Details :
Standard Export Package
Type :
Drilling Mud Pump
Model Number :
BW90, BW-90
Product Name :
Mud Pump for Well Drilling
Power :
5.5 KW
Mud Pump Cylinder :
65 mm
Weight :
205 Kgs
Stroke Raing SPM :
50
Packing Size :
1260*600*550mm
Condition :
New
Description

High Quality BW 90 Mud Pump for Construction and Geothermal Water Well Drilling

Product Description:

1. Horizontal, triplex, single acting reciprocation piston pumps. The pump can choose diesel motor power, It has simple operation, convenient, can achieve close range or remote control.

2. This pump is a compact structure, smooth operation, high output pressure, longer life expectancy,stable performance, good general and so on.

3. This pump adopts the car transmission,Can get six different discharge and pressure,Reasonable configuration parameters selection,The construction technology can satisfy different requirements.

4. Mainly used drilling fluid in supply for 2000m about core drilling coal field geology,metallurgy geology,hydrogeololgy,drilling fluid can use mud and water, the coal water etc.

Product Parameter:

Type

Horizontal Three Cylinder Reciprocating Single Acting Piston Pump

Cylinder Diameter

65 mm

Stroke

50 mm

Pump Speed

204 times/min

144 times/min

107 times/min

Flow

90 L/Min

65 L/Min

50 L/Min

Pressure

1 Mpa

2 Mpa

3 Mpa

Power

5.5 KW

Shape Size

1220x590x550 mm

Weight

210 Kgs

High Quality BW 90 Mud Pump for Construction and Geothermal Water Well Drilling
