Multiple Usage Engineering Prospection Geological Drill Rig for Engineering Geo-Prospection
Multiple Usage Engineering Prospection Geological Drill Rig for Engineering Geo-Prospection
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST-200
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-10 days
Packaging Details :
Standard Export Package
Type :
Core Drilling Rig
Power Type :
Diesel
Power(W) :
15KW
Dimension(L*W*H) :
1820*980*1650MM
Weight :
750KGS
Warranty :
1 Year
Description

Multiple Usage Engineering Prospection Geological Drill Rig for Engineering Geo-Prospection

Product Application:

The rig is a multiple usage engineering prospection drill rig with large spindle through hole, which is suitable for engineering geo-prospection in construction of industrial and civil engineering projects, railways, bridges, hydroelectric etc., as well as small diameter piling works.

Product Parameter:

Drilling Capability
Spindle Turnable Angle 0°~360°

Wire-line Core Drill Rods

 BQ 245m
NQ 200m
HQ 160m
Rotary Table

Speed(r/min)

 Forward 900 475 388 205 157 68
Reverse 256 85
Max Torque 2000N·m
Feeding Travel 400mm
Max Feeding Force 29KN
Max Lifting Force 39KN
3, Hoist
Bobbin Dia φ135mm
Rope Dia φ12.5mm
Bobbin Capacity 30m

Single Rope Hoisting Capacity

 30KN
Single Rope Max Hoisting Speed(2nd Layer) (m/s) 0.27 0.64 0.83 1.58 1.64
4Oil Pump
Model CBF-F420-ALPLCBF-F420-ALPL Gear Pump
Displacement 20mL/r
Nominal Speed 2500r/min

Nominal Pressure

 20MPa
Max Pressure 25MPa
5 Engine

Model

Power

Speed

Weight
(1) Electro-motor Y160L-4 15KW 1460r/min 144kg

(2)

Diesel Engine

ZS1110

CHANGCHAI ZS1110

 14.7KW 2200r/min 180kg
Frame
Type: Sliding(with sliding frame base)
Rig Travel 400mm
Distance Away from Hole 270mm
7Dimension(L*W*H) 1820×980×1650mm

8,

Rig Weight(without engine)

 750kg

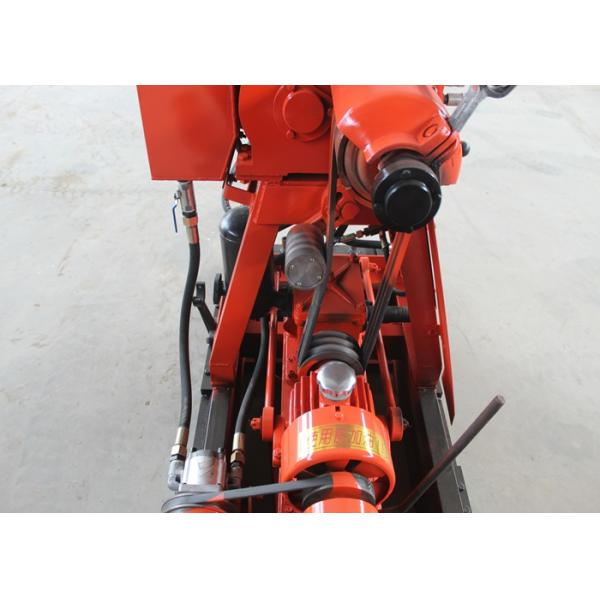

Multiple Usage Engineering Prospection Geological Drill Rig for Engineering Geo-Prospection
