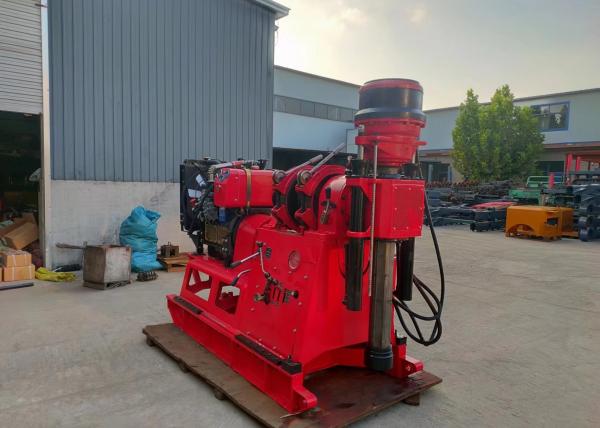

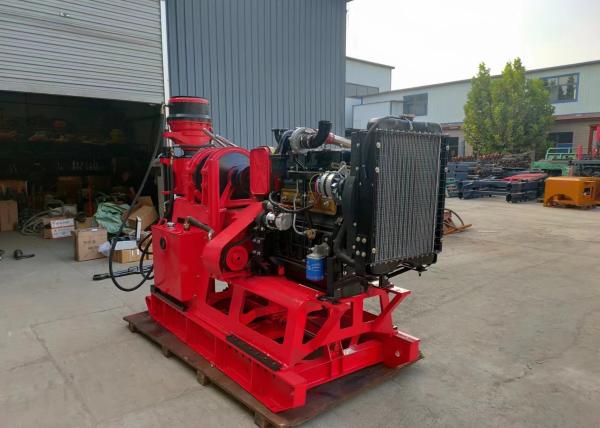

Professional Core Drill Rig XY-2B Diesel Power Type For Geological Investigation
Professional Core Drill Rig XY-2B Diesel Power Type For Geological Investigation
Professional Core Drill Rig XY-2B Diesel Power Type For Geological Investigation
Professional Core Drill Rig XY-2B Diesel Power Type For Geological Investigation
Specifications
Brand Name :
ShiTan
Model Number :
XY-2B Core Drill Rig
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
2000set/year
Delivery Time :
Within 7-12 days
Packaging Details :
Standard Export package
Voltage :
380V
Power(W) :
22kw
Dimension(L*W*H) :
2150,900,1690mm
Usage :
engineering geological
Spindle stroke: :
560mm
color :
red
Power Type :
Diesel
Description
Professional Core Drill Rig XY-2B Diesel Power Type For Geological Investigation
XY-2B Core Drill Rig Product Description

XY-2B drilling rig is a kind of medium shallow hole core drilling machine. The utility model has the advantages of small size, light weight, large power and wide range. It is especially available for constructions of hydroelectric power station, highway, railroad and harbor etc.

Technical Specifications about xy-2b drilling machine

Drilling capacity (m) 73 rod 100
60 rod 200
50 rod 380
42 rod 530

Spindle speed(r/min)		 Forward 57;99;157;217;270;470;742;1024
Reverse 45;212

Max torque(Nm)		 2760

Angle renge		 0-90°

Spindle max pull force(KN)		 60

Spindle stroke (mm)		 600

Hoist max lift capacity with single rope (KN)		 30

Spindle inner dia (mm)		 76

Oil pump		 SCB32/12

Power unit
Electric motor		 Y180L-4,22Kw

Diesel engine		 395K2,19.85Kw

Inner dia of spindle (mm)		 2150×900×1690

Drill weight(excluding power)(kg)

950

XY-2B Core Drill Rig Main Features

1. Very powerful at soil, sand, hard rock, etc. land condition.

2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available for your choice, which can drill both soft and hard ground, especially diamond drill bit effective in drilling hard rocks.

3. Hydraulic control system for greatly improving the working efficiency, saving labor force.

4. Mounted wheel or trailer, can be hauled easily by car or tractor, convenient to transport.

5. Power can be diesel engine or electric motor, as per your request.

XY-2B Core Drill Rig What is the difference between site investigation and soil investigation?

Site investigation or soil explorations are done for obtaining the information about subsurface conditions at the site of proposed construction. Soil exploration consists of determining the profile of the natural soil deposits at the site, taking the soil samples and determining the engineering properties of soils.

Professional Core Drill Rig XY-2B Diesel Power Type For Geological InvestigationProfessional Core Drill Rig XY-2B Diesel Power Type For Geological InvestigationProfessional Core Drill Rig XY-2B Diesel Power Type For Geological InvestigationProfessional Core Drill Rig XY-2B Diesel Power Type For Geological Investigation
