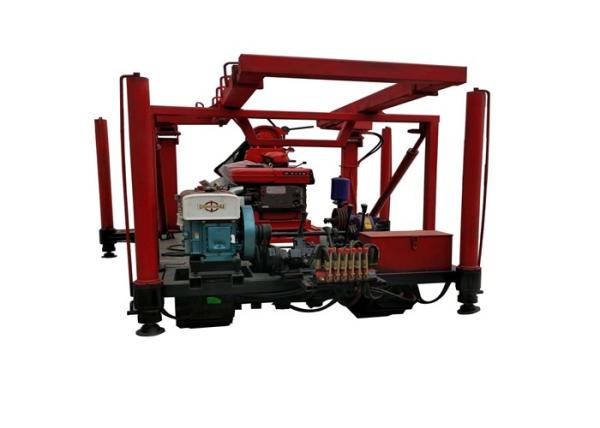

100-300m Depth Hard Rock Drilling Machine For Rock Stone Coal Mine Drilling
100-300m Depth Hard Rock Drilling Machine For Rock Stone Coal Mine Drilling
100-300m Depth Hard Rock Drilling Machine For Rock Stone Coal Mine Drilling
100-300m Depth Hard Rock Drilling Machine For Rock Stone Coal Mine Drilling
Specifications
Brand Name :
Shitan
Model Number :
ST-200
Certification :
iso
Place of Origin :
China
Packing :
as required
Drill Hole Diameter :
200mm
Drill hole depth :
200m
Struter :
sandy rock
Color :
as required
Mounted type :
TRUCK OR TRAILER
Description

Rock Drill For Rock Stone Coal Mine Drilling 100-300m Depth

We are a specialized in the drilling machine, such as the water well drilling rig, core drilling rig for geological investigation, DTH (down-the-hole) drilling rig and the anchor drilling rig.
SPECIFICATION FOR

Rock Drill For Rock Stone Coal Mine Drilling 100-300m Depth
Unity Machine Parameter
Drilling depth
30--200m
End hole caliber
500-75mm
Drill rod caliber
50mm
Drilling angle
90°~75°
Drill weight (No include power)
910kg
Unity machine dimensions
2.5×1×1.3 2.5×0.9×1.3m
Spindle
spindle speed
64,128,287,557r/min
Spindle stroke
450mm
Hoist
Max .single line hoisting capacity
2400kg
Single line lifting speed
17,35,75,151r/min
Tightrope caliber
12.5mm
Tightrope cubic measure
35m
Hug floodgate caliber
254mm
Hug floodgate belt width
70mm
Distance between drill and hole
400mm
Mud Pump
Type
Horizontal single urn twin-action
Displacement
170L/min
Diesel engine
S1115 Model 22HP
Electric motor
Y160M-4 15kw 1440r/min
Maximum pressure
1.5Mpa
Work pressure
0.7Mpa
Water inlet caliber
40mm
Water to exit caliber
30mm


100-300m Depth Hard Rock Drilling Machine For Rock Stone Coal Mine Drilling
