High Working Efficiency XY-1A 150Meters Core Drill Rig For Engineering
High Working Efficiency XY-1A 150Meters Core Drill Rig For Engineering
High Working Efficiency XY-1A 150Meters Core Drill Rig For Engineering
High Working Efficiency XY-1A 150Meters Core Drill Rig For Engineering
Specifications
Brand Name :
ShiTan
Model Number :
XY-1A
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000set/year
Delivery Time :
Within 7-12 days
Packaging Details :
Standard Export package
Type :
High Working Efficiency Shitan XY-1 A 150 Meters Engineering Core Drill Rig
Power Type :
Diesel
Weight: :
480kg
Usage :
water well,railways, core drilling
Drilling depth :
30-180m
Dimension(L*W*H) :
1620*970*1560mm
Drill pipe diameter :
42mm
Borehole dip angle :
90°~75
Spindle speed :
1010、790、470、295、140（r/min）
Model :
YBC-12/125
Rated pressure :
12.5Mpa
Model(diesel engine） :
1105
Rated power :
18KW
WEIGHT :
AROUND 600KG
Description

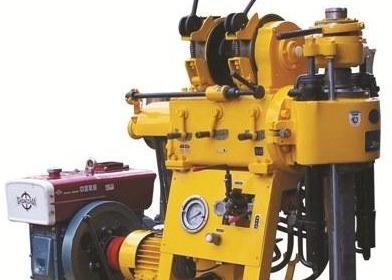

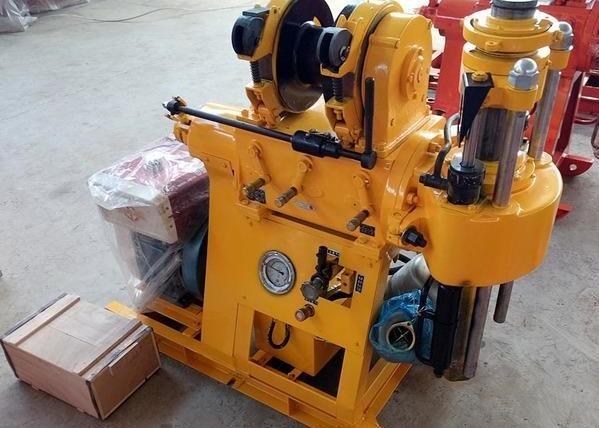

High Working Efficiency Shitan XY-1 A 150 Meters Engineering Core Drill Rig

Introduction of Shitan XY-1 A 150 Meters Engineering Core Drill Rig

This rig is light shallow hole drill rig with hydraulic automatic feeding mechanism.It is mainly applied to the exploration, geophysical exploration, road and building exploration and small water well drilling, etc. is suitable for drilling water well, soil exploration, geophysical exploration, road and building exploration and drilling blasting holes.

High Working Efficiency Shitan XY-1 A 150 Meters Engineering Core Drill Rig parameters

Drill Swivel Head

Drilling depth

 Max.150m

Spindle speed

 1010,790,470,295,140(r/min)

Hole diameter

 Max.150m Spindle stroke 450kmm
Drill rod diameter 42.50mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.25Mpa
Flow speed 8ml/r
Rated speed 1500r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine) 1105
Hoisting drum revolution

121,76,36(r/min)

 Rated power 18KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1620*970*1560mm

XY-1 A 150 Meters Engineering Core Drill Rig main features

With hydraulic automatic feeding device, elevated drilling efficiency. 2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown. 3. Centralized handles, easy operation, safe and reliable. 4. The drilling machine, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area. 5 lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.

OEM XY-1 A 150 Meters Engineering Core Drill Rig FAQ

1.. Are you factory or trading company?

We are direct factory ,we support OEM different kinds of drilling rigs.

2. What kind of projects you will work for?

Water well, Borehole, Exploration coring, Foundation Piling, Blast holes, Geothermal heat project or others?

3. Max drilling depth you want.

100m, 150m, 200m, 300m, or other depth.

4. The Min and Max borehole diameter you need.

Like Max 200mm, Min 75mm.

5. Geological condition of the working site if you know about it.

Soft ground like soil, mud, sand?

Hard ground like hard rocks?Or mixed?
