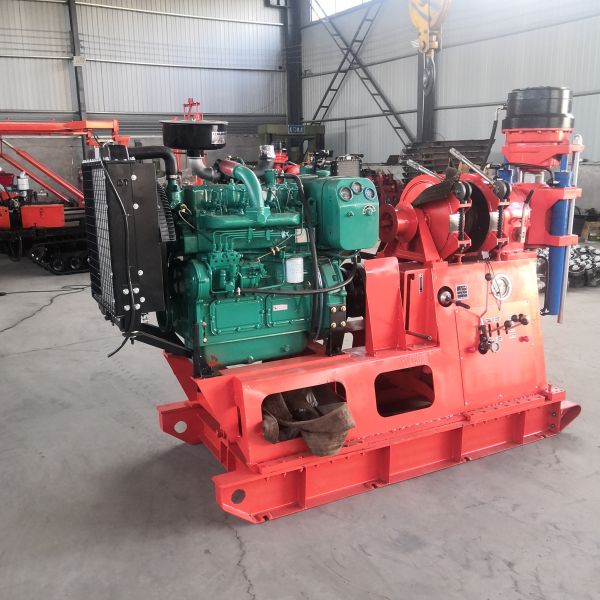

300-500m Low Pile Driving 15KW Well Drilling Rig
300-500m Low Pile Driving 15KW Well Drilling Rig
300-500m Low Pile Driving 15KW Well Drilling Rig
300-500m Low Pile Driving 15KW Well Drilling Rig
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
XY-2B
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Condition :
New
Type :
Rotary Drilling Rig
Power Type :
Diesel
Usage :
Water Well
Voltage :
380V
Power(W) :
15KW
Weight :
1200KGS
Description

XY-2B 300-500m Core Drilling Machine Water Well Drilll Rig Price Low Pile Driving

Product Description:

XY-2B drill rig is a portable medium-shallow hole core drilling machine, mainly used in large and small hole core drilling, water well, geothermal and irrigation well, geotechnical investigation, mining exploration, bridge building, geothermal wells, blast-hole, as well as large hole construction works (such as mini type pile foundation drilling). It has advantages of light weight, good quality, high installed power, strong suitability, etc.

Main Features:

1. Very powerful at soil, sand, hard rock, etc. land condition.

2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available for your choice, which can drill both soft and hard ground, especially diamond drill bit effective in drilling hard rocks.

3. Hydraulic control system for greatly improving the working efficiency, saving labor force.

4. Mounted wheel or trailer, can be hauled easily by car or tractor, convenient to transport.

5. Power can be diesel engine or electric motor, as per your request.

Technical Parameters:

Drilling depth (m)

 Φ73 rod 100
Φ60 rod 320
Φ50 rod 380
Φ42 rod 530
Spindle speed (r/min) Forward 57;99;157;217;270;470;742;1024
Reverse 45;212
Max torque (Nm) 3330
Angle renge 0-90°
Spindle max pull force(KN) 60
Spindle stroke (mm) 560
Hoist max lift capacity with single rope (KN) 30
Spindle inner dia (mm) Φ96
Oil pump CBK1020/8 twin-gear pump
Power unit Electric motor Y180L-4,22kW
Diesel engine 395K2,19.85kW
Inner dia of spindle (mm) 2220×900×1880
Drill weight(excluding power)(kg) 1200

Tips to select a right drilling rig:

1. What kind of projects you will work for?

Water well, Borehole, Exploration coring, Foundation Piling, Blast holes, Geothermal heat project or others?

2. Max drilling depth you want.

100m, 150m, 200m, 300m, or other depth.

3. The Min and Max borehole diameter you need.

Like Max 200mm, Min 75mm.

4. Geological condition of the working site if you know about it.

Soft ground like soil, mud, sand?

Hard ground like hard rocks?

Or mixed?

More details you provided, our engineer can suggest the most suitable model for you.


Product Show:

300-500m Low Pile Driving 15KW Well Drilling Rig
