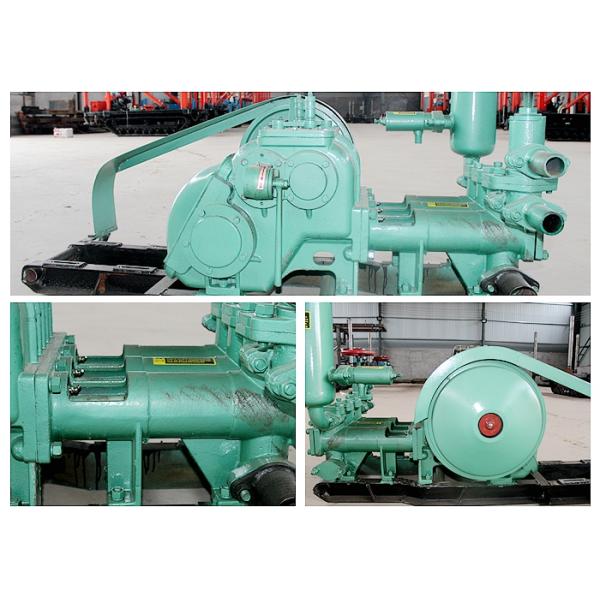

High Efficient Electric Mud Pump For Water Well Drilling Rig BW250
High Efficient Electric Mud Pump For Water Well Drilling Rig BW250
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
BW250
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Type :
Horizontal piston pump
Product Name :
Mud Pump
Cylinder diameter :
80mm
Piston Stroke :
100mm
Max. flow :
250L/min
Max. pressure :
6MPa
Dimensions :
1000*995*650
Weight :
760kg
Description

Efficient Portable BW250 Drilling Mud Pump for Water Well Drilling Rig

Product Description:

BW250 mud pump is the horizontal three-cylinder reciprocating single-acting piston pump. Mainly used for supporting the core drilling drilling mud, can also be used for other aspects of grouting, mine sewage and long-distance water supply and other purposes.

Product Characteristics:

1. BW series costing polyurethane mud pump is horizontal triplex grout pump with high stability and high pressure.

2. Eight gear shift to adjust the flow, large output capacity, simple operation.

3. High quality pump parts, less wearing parts, long service life, low construction cost.

4. Fast suction-discharge speed, high pump efficiency.

5. Less noise and dust, environmental operation.

Product Parameter:

Type Horizontal three cylinder reciprocating single acting piston pump
Stroke (mm) 100
Cylinder diameter (mm) 80 65
Pump speed (min-1) 200 116 72 42 200 116 72 42
Flow (L/min) 250 145 90 52 166 96 60 35
Pressure (MPa) 2.5 4.5 6 6 4 6 7 7
Power (KW) 15
Shape size (mm) 1000×995×650
Weight (kg) 760
