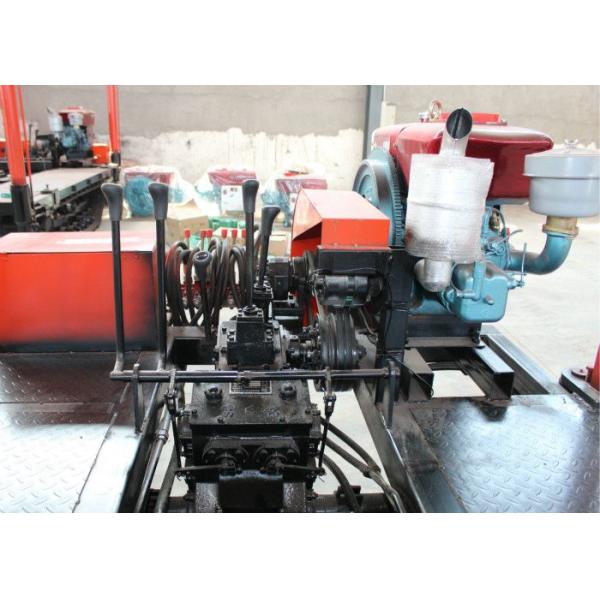

High Quality 200m Soil Test Drilling Machine with Diesel Engine for Water Well Drilling
High Quality 200m Soil Test Drilling Machine with Diesel Engine for Water Well Drilling
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST-200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Condition :
New
Type :
Core Drilling Rig
Power Type :
Diesel
Usage :
Water Well
Voltage :
Customized
Power(W) :
15KW
Dimension(L*W*H) :
7980mm*2300mm*2860mm
Drilling depth :
30-200m
Drilling diameter :
75-300mm
Description

High Quality 200m Soil Test Drilling Machine with Diesel Engine for Water Well Drilling

Product Description:

High Quality 200m Soil Test Drilling Rig Machine aims at optimizing the design of most of the same type drilling rigs in the domestic market. It is suitable for industrial and civil buildings, railways, bridges, etc. The engineering geological exploration of hydropower and other departments, as well as the construction of small diameter pile holes, have the following characteristics:

1. The speed range is wide, the gear is reasonable.

2. Low speed, large torque, can be used for drilling machine sampling and pile hole construction.

3. Equipped with front-and-back moving cylinder, so the whole rig can move freely 300 mm, which brings a lot of convenience to the drill.

4. Hydraulic feeding, easy to operate, high drilling efficiency and low labor intensity.

5. The chuck of drilling machine adopts hydraulic roller type, easy operation, reliable clamping and no damage to active drill pipe.

6. Compact structure, small size, light weight.

7. Adopt 9 spring reinforced large torque clutch, reliable clutch, larger torque transfer, strong impact resistance and long life.

8. Increase input shaft spline specifications, torsion resistance significantly improved, longer life.

Product Parameter:

Engine
Drilling depth
m
200
Drilling hole diameter
mm
75-300
Power
kw
15
Main performance parameters
Single lifting speed
m/s
1.64
Single lifting force
kN
24
Wireline capacity
m
35

Mud pump
Displacement
L/min
160
Working pressure
Mpa
1.3
Reciprocate times
times/min
165

High Quality 200m Soil Test Drilling Machine with Diesel Engine for Water Well Drilling
