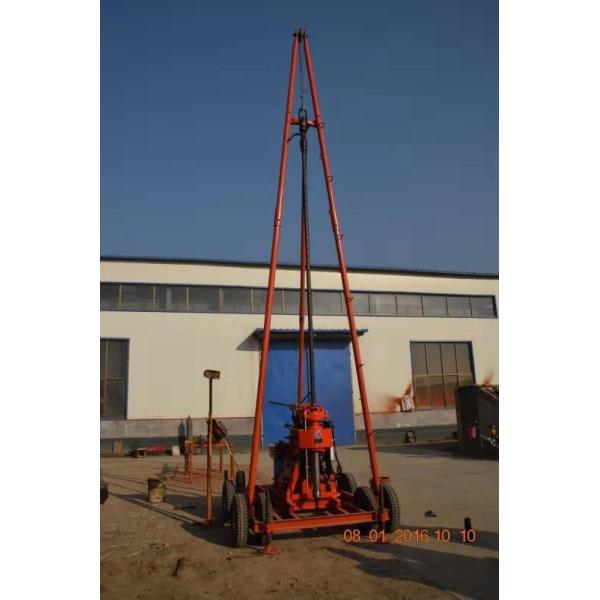

High Efficiency Soil Investigation Drilling Equipment Powerful For Industry ST-300
High Efficiency Soil Investigation Drilling Equipment Powerful For Industry ST-300
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST-300
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Condition :
New
Type :
Core Drilling Rig
Drilling Depth :
300m
Drilling Diameter :
42-300mm
Feature :
High Drilling Efficiency
Supplying Ability :
5set/month
Description

Powerful And High Efficiency ST-300 Core Drilling Equipment

Product Feature:

1. This portable drilling well equipment is widely used for drink water well drilling

2. The quality and the performance is safty and reliable

3. The drilling depth is 60-80m, the drilling diameter is 70-300mm

4. The weight and dimension of this machine is small, convenient and easy to operate, labor-saving, high efficiency and long usage life. Drilling depth 60-80m Drilling diameter 70-300mm Power Engine 7.5KW Rotary speed 200r/min Rotary table diameter 80mm Rotary table torque ***** Dimension(LXWXH) 1100X600X500mm Weight 0.135 t

Product Parameter:

Drilling depth m 300-600
Open hole caliber mm 300
End hole caliber mm 75
Drilling rod mm Φ60
Drilling angle 90°-65°
Spindle
Spindle forward speed r/min 57-1024
Spindle reverse speed r/min 45-212
Spindle stroke mm 560
Spindle inner diameter mm 96
Spindle lifting capacity KG 6000
Hoist
Single line lifting speed m/s 0.515 0.894 1.421 1.948
Hug floodgate belt width mm 90
Tightrope caliber mm 12.5 or 14
Hoist single line lifting capacity KG 3000
Reel caliber mm 200
Reel cubic measure m 30
Mud pump
Horizontal double actuator
Displacement L/min 200,125
Triangle conveyer belt type B×5
Work pressure Mpa 4.6
Water inlet caliber mm 65
Water to exit caliber mm 37
Oil pump
Duplex gear oil pump F532/F314
Front displacement,pressure 32L/min 20Mpa
Behind displacement,pressure 14L/min 20Mpa
Drilling rig Power
Diesel engine Hp 395Kz 27HP
Electric motor KW Y180L-4 22KW


High Efficiency Soil Investigation Drilling Equipment Powerful For Industry ST-300
