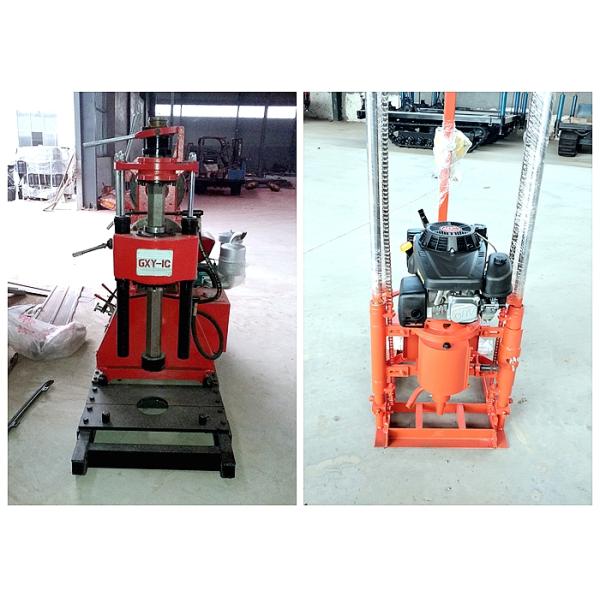

Industrial Soil Test Drilling Rig Machine For Core Borehole Drilling
Industrial Soil Test Drilling Rig Machine For Core Borehole Drilling
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST-100
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Condition :
New
Type :
Rotary Drilling Rig
Power Type :
Diesel
Usage :
Water Well
Voltage :
220v
Weight :
610kg
Warranty :
6 month
Description

Factory Offered Soil Test Drilling Rig Machine for Core Borehole Drilling

Product Application:

1. This drill for the high-speed drilling machine is suitable for the exploration, geophysical exploration, road and building exploration and blasting hole drilling engineering, etc.

2. Can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc.

3. Level 3, 2-9 drilling, sandy clay and rock formations, etc.

Main Features:

1. having hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.

2. using the ball card holding mechanism to replace chuck, can implement non-stop down rod, convenient operation, safe and reliable.

3. hoist with cage, forms the double support structure of the star wheel, can withstand strong shock.

4. four groups of axle box bearing positioning, keep gyrator rigid enough deal with gravel layer, complex geological conditions, such as pebble layer.

5. the machine adopts taper clutch of national patent technology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance.

Product Parameter:

Drilling depth

110

Maximum open hole diameter

220mm

End hole diameter

75mm

Drilling pipe diameter

50mm/42mm

Drilling angle

90

Drilling rig weight (exclude diesel engine)

610kg

Dimension

2.1*0.9*1.3m

Spindle

Rotating speed

130/300/480/730/830/1045 r/min

Stroke

450mm

Winch

Maximum lifting force

1600kg

Lifting speed

1.06/0.67/0.32 m/s

Wire-rope diameter

13mm

Roll capacity

50m

Mud pump

Type

Horizontal single cylinder double acting

Displacement (with diesel engine/electric motor)

170l/min

Max. pressure

1.5mpa

Work pressure

0.7mpa

Power

Diesel engine

S1100

Electric motor

Y160M-4 10KW

Industrial Soil Test Drilling Rig Machine For Core Borehole Drilling
