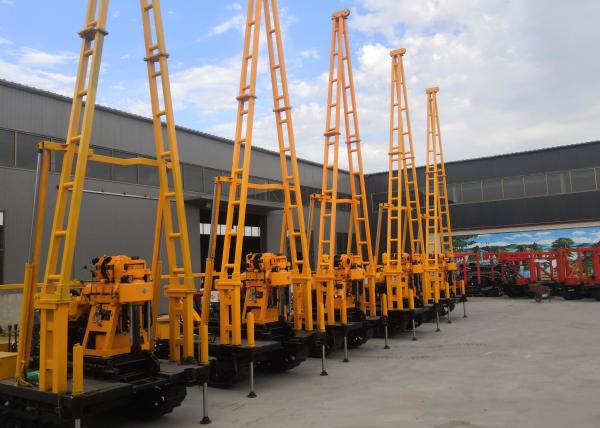

China Manufacturer XY-1 Price Small Borehole Rock Core Water Well Drilling Rigs For Sale
China Manufacturer XY-1 Price Small Borehole Rock Core Water Well Drilling Rigs For Sale
China Manufacturer XY-1 Price Small Borehole Rock Core Water Well Drilling Rigs For Sale
China Manufacturer XY-1 Price Small Borehole Rock Core Water Well Drilling Rigs For Sale
Specifications
Brand Name :
ShiTan
Model Number :
GK200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1sets
Price :
Negotiation
Payment Terms :
L/C, D/A, T/T, Western Union
Delivery Time :
Within 7-12 days
Packaging Details :
Wooden box
Type :
hydraulic crawler drilling rig
Color :
Red Yellow
Feature :
High Drilling Efficiency
Usage :
Water Well
Application :
Soil Sampling
Power Type :
Diesel
Drilling depth :
100
Mud Pump :
BW-160
Drilling angle :
90° ~75°
Warranty :
1 Year
Voltage :
220V/380V
Description
China Manufacturer XY-1 Price Small Borehole Rock Core Water Well Drilling Rigs For Sale

The scope of use:


1. Used for census exploration, geophysical exploration, road and building exploration and blasting drilling and other drilling projects;
2. According to the different strata of the choice of alloy, steel grit and steel bit drilling;
3. Can drill 2-9 grade sandy clay and bedrock layer.
Second, the main features:
1. With automatic feeding into the body, high drilling efficiency.
2. The use of the ball card clamping mechanism instead of chuck, can be implemented without down the bar.
3. Handle centralized, easy to operate, safe and reliable.
4. Compact structure, rig, pumps and diesel engines are installed in the same chassis, the occupation of small venues.
5. Light weight, strong decomposition, easy to move, suitable for plain and mountain work.

1.The Drill Rig Information:

Drilling Depth: 100m,70m,50m,30m
The Hole Diameter 75mm,91mm,110mm
Kelly 52*59*4200mm
Drill Pipe Diameter 42mm
Drilling Angle 90°-75°
Rig Dimensions(Length*Width*Height) 1640mm*1030mm*1440mm
Weight (excluding power) 500kg
Swivel Head
Spindle speed(3-speed) 142/285/570 r/min
Spindle stroke 450

upward displacement speed

of idling vertical spindle

 0.05m/s

Downward displacement speed

of idling vertical spindle

 0.067m/s
Spindle pull-down max 15KN
Spindle lifting capacity max 25KN
Gyrator
The Vertical Speed (fore steps) 71,142,310,620 r/min
The Vertical Stroke 450mm
The Maximum Speed Of Vertical Load 0.05m/s
The Vertical Load Down The Maximum Moving Speed 0.067m/s
Max Feeding Force 15KN
Max Lifting 25KN
The Vertical Maximum Moving Speed 1.25 KN.M
Hoist
Max.lifting capacity(1-speed,single rope) 10KN
Cable volume (number) of hoisting drum 27m
Wire rope dia. 9.3mm
Mud Pump
Types Horizontal reciprocating single-acting piston pump
Displacement max 95 L/min
Equipped with motor 77 L/min
Allowable working pressure max 1. 2Mpa
Continuous working pressure 0.7Mpa
Suction pipe dia 32mm
Discharge pipe dia 25mm
China Manufacturer XY-1 Price Small Borehole Rock Core Water Well Drilling Rigs For Sale
