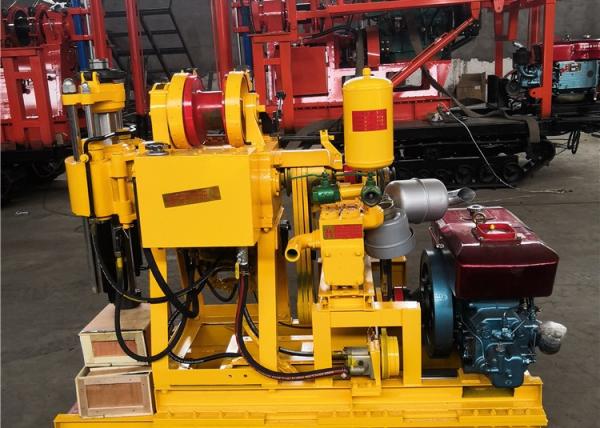

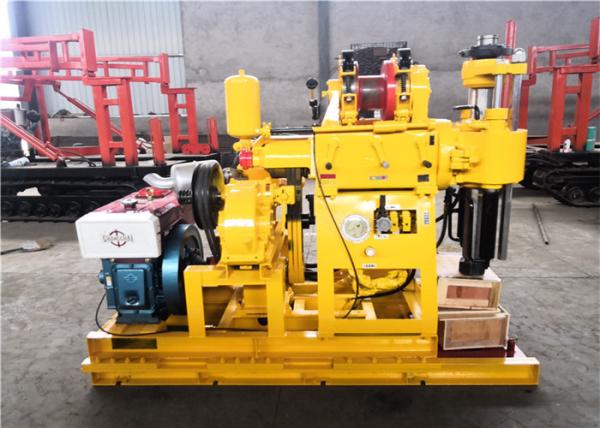

Rotary Hydraulic 200m Portable Soil Test Drilling Machine Yellow Color
Rotary Hydraulic 200m Portable Soil Test Drilling Machine Yellow Color
Rotary Hydraulic 200m Portable Soil Test Drilling Machine Yellow Color
Rotary Hydraulic 200m Portable Soil Test Drilling Machine Yellow Color
Specifications
Brand Name :
Shitan
Model Number :
XY-200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Plastic film and Standard export wooden box
Product name :
Soil Testing Drilling Rig Machine
Drilling Way :
Rotary
Geological :
soil, rock, hard rock,
Transport Package :
in Wooden Case
Chuck :
Hydraulic Chuck
Usage :
Soil sample
Net weight :
600 KG
Warranty :
1 Year
Description

Rotary Hydraulic 200m Portable Soil Test Drilling Machine Yellow Color

Soil Test Drilling Machine Applications


series drilling rig is a shallow/ medium depth hole spindle type core drilling rig. The machine is mainly used for diamond drilling and able to meet the needs of various drilling technology requests. It adopts electric motor or diesel engine as power unit. The rig owns simple structure and is easy to operate.

Drilling rig parameters

Drilling depth 200m
Open hole diameter 75-300mm
End hole diameter 75mm
Active drill rod 53/59*4200mm
Rod diameter 50,60mm
Drill angle 90°-75°
Matched power(diesel power) 15kw/2200r/min
Dimension 2800*950*1700mm

Characteristics of drilling rig

A. 53*59 drilling rod adopted,high rigidity and strong delivery torque.

the machine is equipped with national patent technology---taper clutch,with characteristic of strong transmission torque,easy operation and free maintenance.

B. for the winch,we use large module planetary gear and add supporting frame,greatly increasing hoisting and braking ability of the winch.

C. vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.

D. we are the first one to equip mud pump with the flow 160L/min in china so that it will save cost and also make the machine compact,moblie and lightweight.


Soil Test Drilling Machine advantage
1. The rig is equipped with wheeled walking mechanism and hydraulic cylinder pillar, the whole machine is easy to move, to
facilitate the level of drilling rig.
2. has a hydraulic feed mechanism to improve drilling efficiency.
3. drilling machine with a ball-type clamping mechanism instead of chuck, can be implemented non-stop inverted bar, high efficiency, easy to operate safe and reliable.
4. with a bottom hole pressure gauge indicating pressure, easy to grasp the hole situation
5. the tower for the hydraulic operation, convenient and reliable.
6. diesel engine using electric start, reduce the labor intensity of
workers.
