Farming Personal Use ST 50 Water Well Drilling Rig Machines Portable Equipment

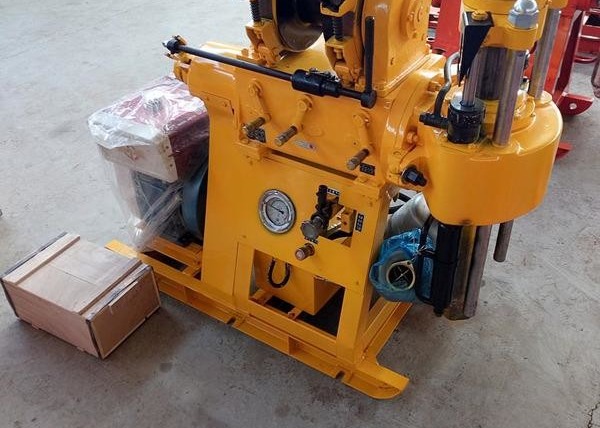

50 Meters Water Well Drilling Rig Machine Introduction

50 Meters Depth ,100mm Hole Diameter,it is a kind of widely used portable drill,easy movement ,light weight and competitive price,It is suitable for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservancy, bridges, dam foundation and other buildings .

50 Meters Water Well Drilling Rig Machine Tech Data

50 Meters Water Well Drilling Rig Machine Features

50 Meters Water Well Drilling Rig Machine Drilling Works

Push on the clutch handle and reducer handle, the mud pump starts to supply water, press the hydraulic right handle and rotate the left handle pressure regulating valve to start drilling.

When the vertical shaft of the rotator falls to the bottom, pull down the clutch handle to cut off the power. Lift the support ring, lift the right hydraulic handle up to the up position, press the left hydraulic handle, lift the vertical shaft to the highest position, press the support ring, push up the clutch handle, press the right hydraulic handle down to the down position, start drilling again, operate repeatedly according to the above operation mode until the maximum drilling depth of the active drill pipe is reached, and then replace and install the drill pipe.How can a person change the drill pipe? First, pinch one end of the locking handle with the cushion fork, pull a three meter drill pipe into the hole with the puller, remove the puller, close the closing box, pull down the operating handle of the drilling rig ect

Four aspects of rural water wells

1, Select appropriate well type

The well types of water source wells are divided into deep wells, large wells, counterpart pumping wells, foreign wells, and small-diameter tube wells. In areas with abundant deep groundwater, it is appropriate to drill deep wells. In areas with abundant shallow groundwater, it is appropriate to drill large wells, counterpart pumping or small-diameter tube wells.

2, Reasonable well layout

The location and layout of wells shall be reasonably arranged according to the local actual hydro geological conditions. If there is no hydro geological data, refer to the existing water source wells around as the basis for the layout of wells. In areas where shallow groundwater is not abundant, shallow wells should not be drilled blindly; In areas with abundant shallow groundwater, it is suitable for farmers to build their own shallow wells, but the well hole layout should not be too dense to avoid the interaction between adjacent water source wells.

3, Configure appropriate water pump

After the well is completed, measure the water level of the water outlet well and the corresponding water output according to the drainage condition of the drilling machine, and then determine the total head of the water pump according to the height difference from the ground to the dynamic water level and the irrigation method you adopt, and the required working head of the water pump. The flow of the water pump shall not exceed the water flow through the well. The corresponding water pump shall be purchased on the premise of the above two items.
