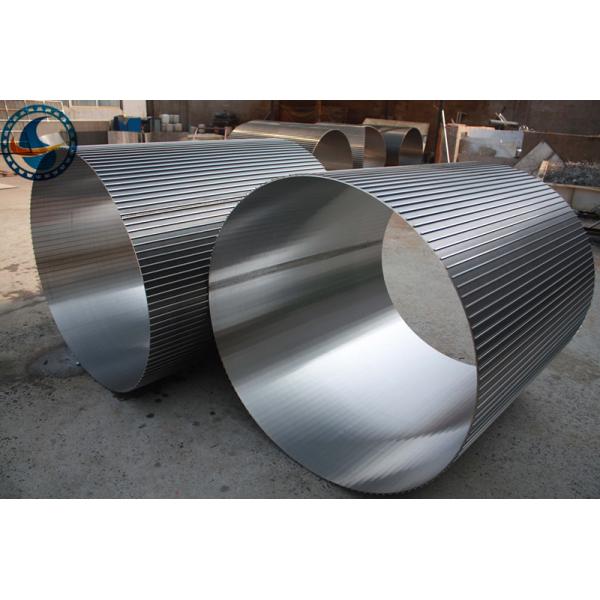

Professional Rotary Reverse Bake Flush Johnson Slot Screen Drum

Product Description:

Professional Rotary Reverse Bake Flush Johnson Slot Screen Drum is made by Johnson screen mesh through reverse welding.

From inside to outside (FITO):

Whereas,the liquid flow from inside to outside.It is with v-shaped cross-section of the stainless steel wire welded on framework, precision filter slot formed between every two adjacent wrap wire, facilitate the back flush filter residue can be ruled out smoothly, to achieve continuous water supply function.

The key point of producing the first-class seiving mesh is the welding process. And based on that, in 2001, we created our automatic welding equipment, which was testified by the practice, the seiving mesh processed have the highest screening efficiency, the strongest seismic tensile ability, need the least maintenance and get the longest life span.

Specification:

Regular Specifications:

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Filter Type: from inside to outside.
Slot type: Inside circle wire and slot. inside vertical wire and slot.
Other components : Flange, stiffener, lifting handle, and other type components by request.

Special specification can be made according to your need.

Benefits:

1. Generally, the mesh gap can reach 0.1mm.
2. Installation is very convenient and easy
3. Provide high flow capacity
4. Suitable for reactors of various sizes
5. Stronger mechanical properties
6. Uniform ring spacing ensures uniform process flow and pressure drop
7. The seal and cover connector have been included in the structure
8. There is no dead zone between the fan tubes, no carbon accumulation, which reduces catalyst inefficiency. Since there is no dead zone, the amount of catalyst required is also reduced, which in fact saves considerable cost.

Pictures:
