Low Carbon Galvanized Or Stainless Steel Wire Screen For Water / Oil Filtration
Low Carbon Galvanized Or Stainless Steel Wire Screen For Water / Oil Filtration
Low Carbon Galvanized Or Stainless Steel Wire Screen For Water / Oil Filtration
Low Carbon Galvanized Or Stainless Steel Wire Screen For Water / Oil Filtration
Specifications
Brand Name :
Heng Yuan
Model Number :
HY004
Certification :
ISO9000,SGS,CIQ,CE
Place of Origin :
Hebei,China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7-10 work days,according to the quantity
Packaging Details :
Moister-Barrier with each piece,110 pcs per 20 ft container
Material :
Stainless steel
Grade :
304 , 316
Slot size :
0.5 mm, 0.63mm, 0.75mm, 1.0mm
Diameter :
3" 4" 6" 8" 10" 12" 14"
Length :
2900mm / 5800mm , up to 6 meter
End connection :
Welded rings
Package :
Woden box,Container
Wire shape :
V shape
Filter Type :
From outside to inside
Description

Low Carbon Galvanized Or Stainless Steel 304 / 316 Wedge Wire Wrapped Slotted Screen Pipe For Filteration

Slot Water Well Johnson Screen Pipe Product Description:

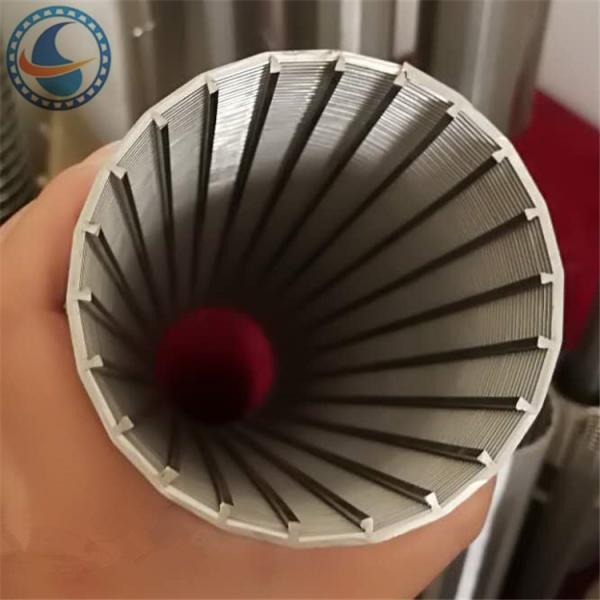

Stainless Steel 304 / 316 Wedge Wire Wrapped Slotted Screen Pipe For Filteration is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods.

The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.

The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.

There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.

Slot Water Well Johnson Screen Pipe Specification:

Stainless Steel 304 / 316 Wedge Wire Wrapped Slotted Screen Pipe For Filteration

Material Stainless steel OR Low carbon galvanized
Grade 304,316 OR Q195 Q235
O.D 89mm 117mm 219mm 273mm 325mm etc
Size 3-1/2" 4-1/2" 8-5/8 " 10-3/4" 12-3/4" etc
Slot size 0.5 mm,0.63mm, 0.75mm, 1.0mm in usal, also can be other size
Length 2.9m / 5.8 m, 100-6000mm
End connection Welded rings
Wire size 63# 93# 118 #
Support rod ø3.0-6.0mm round wire or Vee shaped wire
Wire shape V shape

Slot Water Well Johnson Screen Pipe Regular Specifications:

SIZE

(INCH)

O.D

(MM)

SLOT

(MM)

LENGTH

(M)

COLLAPSE

STRENGTH

(BAR)

TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)
3-1/2 88.9 1.0 3 ＞22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 ＞28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 ＞83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 ＞60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 ＞50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 ＞80 37.8 3.0*5.0 4.0MM/59

Slot Water Well Johnson Screen Pipe Characteristic:

Stainless Steel 304 / 316 Wedge Wire Wrapped Slotted Screen Pipe For Filteration

Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance

Slot Water Well Johnson Screen Pipe Application:

Stainless Steel 304 / 316 Wedge Wire Wrapped Slotted Screen Pipe For Filteration

1. Heavy oil, sand oil, light oil, SAGD, CBM, bitumen, thermal

2. Water injection, bi-modal sand, carbonates, thin pay

3. Horizontal, vertical , deviated oil and gas and water wells

Slot Water Well Johnson Screen Pipe OEM service:

Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.

Slot Water Well Johnson Screen Pipe Custom range

Filter pipe material: mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material.

Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.

Diameter: 2 " 3 " 4 " 5 " 6 " 8 " 10 " 12 " 14 " 16 " 20 ". 29 mm - 1000 mm.

Length: 2.9 M, 5.85 M. Up to 6 M.

Connection form: groove connection/weld ring connection or thread connection.

Slot Water Well Johnson Screen Pipe Pictures:

Low Carbon Galvanized Or Stainless Steel Wire Screen For Water / Oil Filtration

Low Carbon Galvanized Or Stainless Steel Wire Screen For Water / Oil Filtration

Low Carbon Galvanized Or Stainless Steel Wire Screen For Water / Oil FiltrationLow Carbon Galvanized Or Stainless Steel Wire Screen For Water / Oil Filtration

Package:

Low Carbon Galvanized Or Stainless Steel Wire Screen For Water / Oil Filtration
