Wire Wrap Wound Johnson Stainless Steel Well Screens For Water Well

Product Description:

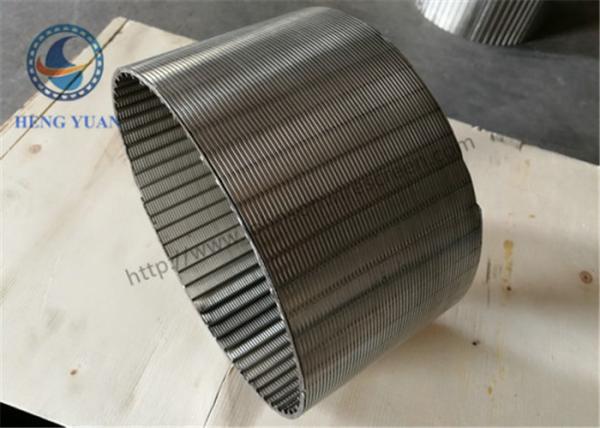

Jonson Vee wire screen is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.

Specification:

Regular Specifications:

Characteristic:

• Continuous uninterrupted gap, smooth flow
• The gap is v-shaped, the outside is small, the inside is large, and it is not easy to block.
• The length can be customized according to customer requirements, one-piece molding
• Solder joints are welded by electric resistance, and the solder joints are firm and not easy to fall off.​
• wedged wires are spirally wound around a cage of longitudinal support rods in succession which formed high-density uniformed slots and avoid clogging. So that the high production efficiency and long life service of the well are guaranteed.
• the profile can be made of different shapes like, wedge shaped, round, bar shaped, and can accompany with the wrap wire according to different application.

OEM service:

Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.

Custom range

Filter pipe material: mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material.

Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.

Diameter: 2 " 3 " 4 " 5 " 6 " 8 " 10 " 12 " 14 " 16 " 20 ". 29 mm - 1000 mm.

Length: 2.9 M, 5.85 M. Up to 6 M.

Connection form: groove connection/weld ring connection or thread connection.

Application:

Water industry

Food industry

Environmental protection

Pictures:
