Anti Rust Water Filter Nozzle For Petrochemical / Pharmaceutical Industry
Anti Rust Water Filter Nozzle For Petrochemical / Pharmaceutical Industry
Anti Rust Water Filter Nozzle For Petrochemical / Pharmaceutical Industry
Anti Rust Water Filter Nozzle For Petrochemical / Pharmaceutical Industry
Specifications
Brand Name :
HENG YUAN
Model Number :
HY006
Certification :
ISO9000
Place of Origin :
Hebei,China
MOQ :
1 pcs
Price :
Negotiate
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
20000 pcs / month
Delivery Time :
3 - 5 days, according to the quantity
Packaging Details :
Woden box, Paper box
Material :
Stainless Steel
Slot Size :
0.3 mm
Grade :
304
Diameter :
53 mm
Length :
115-110mm
Thread size :
1 1/4 "
Description

Johnson Slotted Filter Screen Nozzle Stainless Steel 1.5 T / H

Applications of Johnson screen nozzle

Wedge wire nozzles are effective in a wide range of water treatment and other industrial applications for filtering and screening. Such as, under drain media retention elements, flow distributors in demineralizers, water softeners in pressure and gravity sand filters.

Except for filtering and screening applications, wedge wire nozzles have other applications. Just install several nozzles uniformly to be used as collectors at the bottom of the vessels.

Features of wedge wire nozzle

► Non-clogging.
► High open area.
► High filtering performance.
► Corrosion and rust resistance.
► High temperature resistance.
► Economical.
► Easy to install and replacement.

Product Description:

Product Name Johnson Water Filter Nozzle
Material Stainless Steel
Grade 304
Slot size 0.3mm
Diameter 53 mm
Screen Lenth 50 - 55 mm
Total Length 115 - 110 mm
Thread Size 1 1/4 " , 32 mm
Nutsert 1 PCS, 2 PCS
Gasket 1 PCS steel gasket,1 PCS rubber mat

Characteristic:

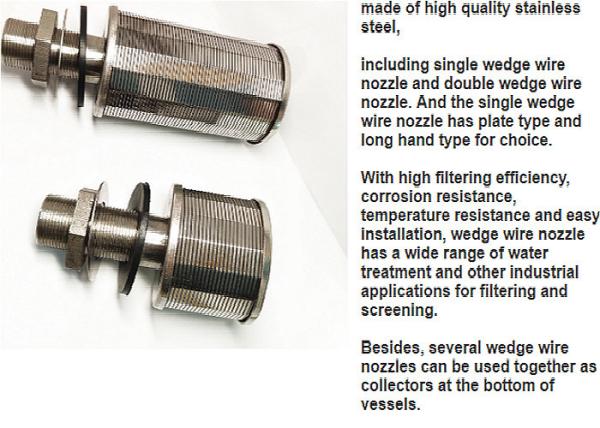

The water screen nozzle is welded with Johnson well screen, thread pipe and steel panel through special welding process. The Johnson well screen is the profile wedge wire screen ,the wire and the support rod is V shape , so the screen filter surface outside is smaller than inside, so that the screen nozzle is not easy to jam. The thread pipe is made by international standard.1 “,1 1/4 “, 2 1/4 “ and so on.

Advantages:

Strong and durable, with long service life.

The gap is even, no leakage of resin, no running material.

High opening rate can meet the requirement of large flow.

The structure is varied and meet different design requirements.

Use:

Water screen nozzle is American technology.water treatment, chemical, petrochemical, pharmaceutical, biotechnology, power plant, ion exchange, yin-yang bed, mixed bed.

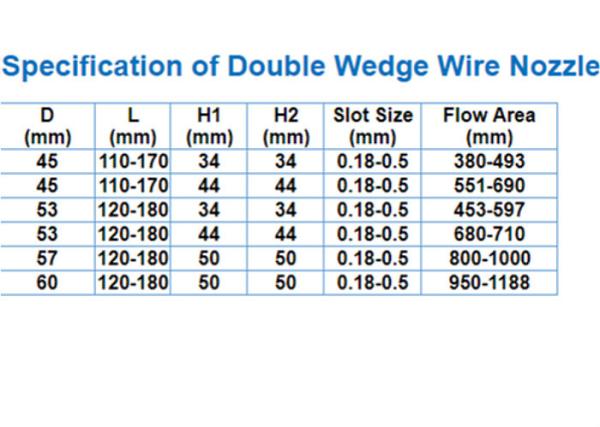

Regular Specifications:

Type Slot size Specifications Flow filter area
0.2mm slot ( reference)
D H L M
HY-PT-45-A 0.2-0.5 45 25 90 25 280
HY-PT-45-B 0.2-0.5 45 35 100 25 380
HY-PT-45-C 0.2-0.5 45 45 110 25 550
HY-PT-45-D 0.2-0.5 45 35 55 25 380
HY-PT-45-E 0.2-0.5 45 45 65 25 550
HY-PT-53-A 0.2-0.5 53 35 100 25 450
HY-PT-53-B 0.2-0.5 53 45 110 25 580
HY-PT-53-C 0.2-0.5 53 55 120 32 700
HY-PT-57-A 0.2-0.5 57 35 100 32 530
HY-PT-57-B 0.2-0.5 57 45 110 32 680
HY-PT-57-C 0.2-0.5 57 55 120 32 830
HY-PT-70-A 0.2-0.5 70 40 105 32 650
HY-PT-70-B 0.2-0.5 70 55 115 32 810
