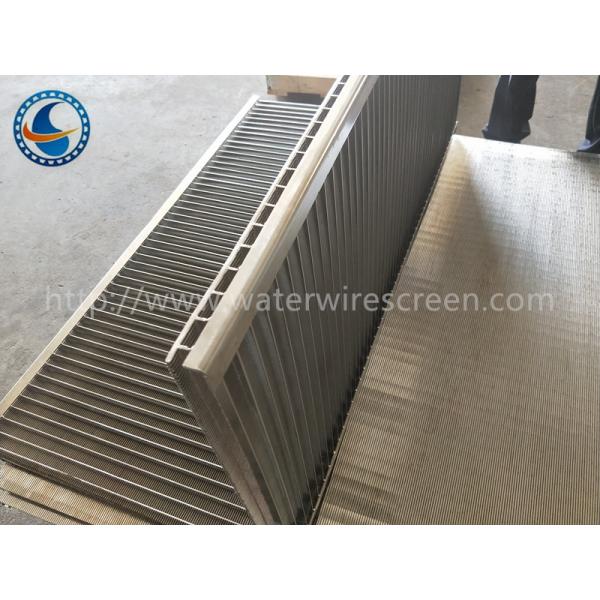

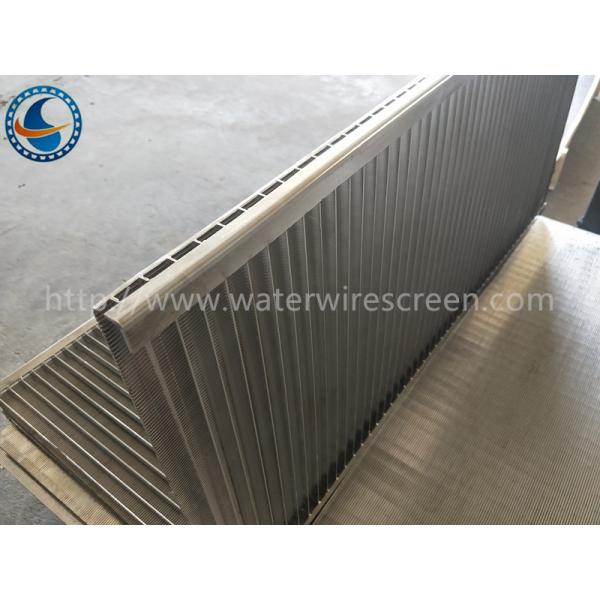

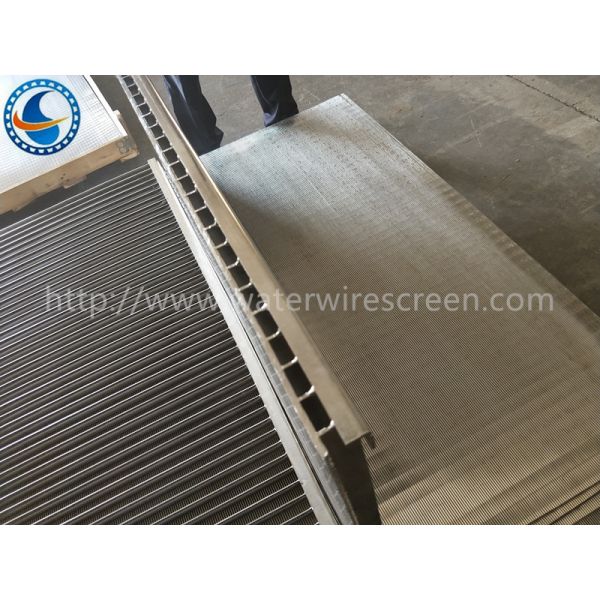

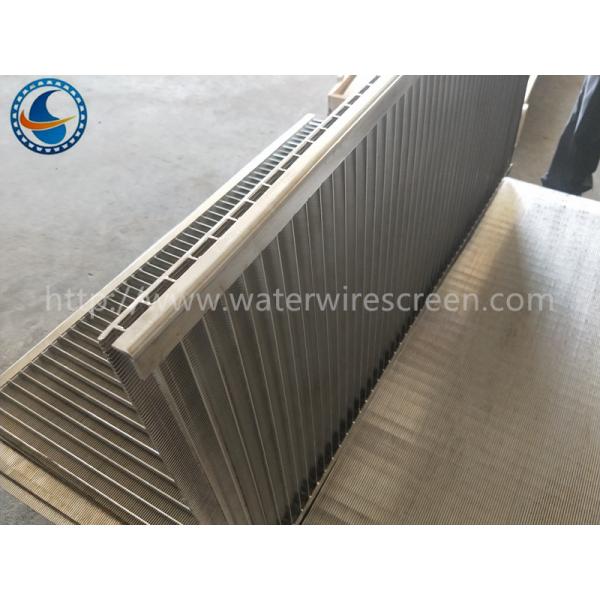

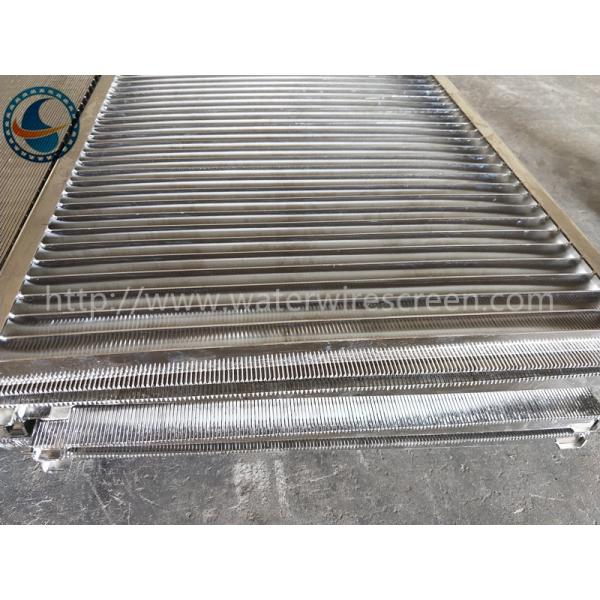

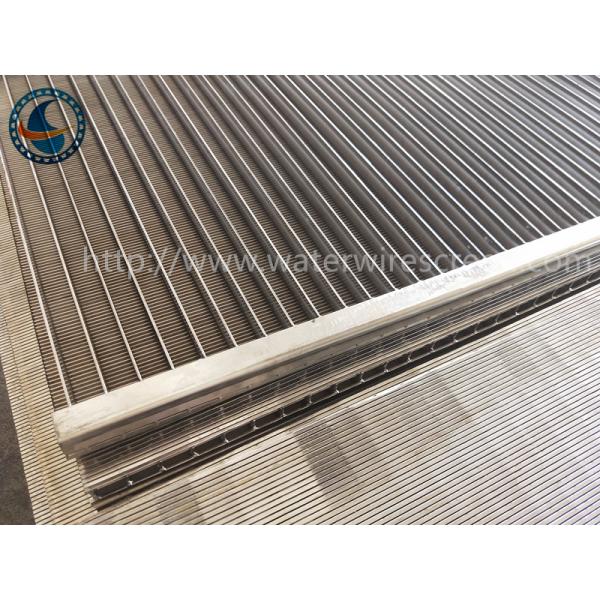

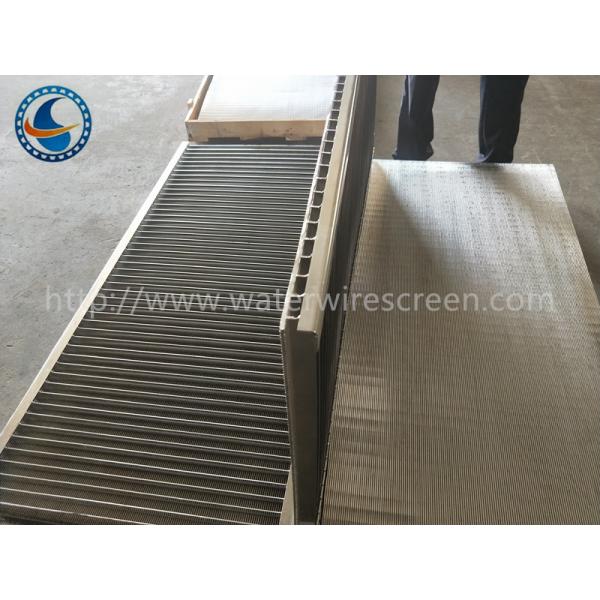

L500mm Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment
L500mm Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment
L500mm Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment
L500mm Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment
L500mm Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment
L500mm Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment
L500mm Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment
L500mm Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment
Specifications
Brand Name :
Heng Yuan
Model Number :
HY004
Certification :
ISO9000
Place of Origin :
Hebei,China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7-10 work days,according to the quantity
Packaging Details :
Moister-Barrier with each piece,64pcs per 20 ft container
Name :
Wedge Wire Screen Panels For Coal Washing Equipment
Material :
Stainless steel
Grade :
304
Slot size :
1.0mm
Width :
1500mm
Length :
500mm
Wrap wire :
3*4.6mm VEE-WIRE
Support rod :
3*4.6mm with flat steel bar
Description

Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment

Wedge Wire Screen Panels Description:

Wedge Wire Screen Panel is welded by V wire and support rod.

There is a fixed value slot between each v wire.

The support bar can be a round wire or a triangular wire or a trapezoidal wire.

Wedge Wire Screen Panels Specification:

Material Stainless steel
Grade 304
Dimension 1500 * 500 m, request
Slot Size 1.0 mm
Width up tp 4000mm
Length up to 4000mm
Type Screen plate
Wire size 3*4.6 mm
Support rod 3*4.6mm with flat steel bar
Wire shape V shape

Wedge Wire Screen Panels Regular Specifications:

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

Slot: 0.1mm - 100mm

Discrepancy: + / - 0.05mm

Dimension: width up to 4000 mm

Length up to 4000mm

Specification of the wrap wire:1*2 mm, 2*3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.

Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.

Special specification can be made according to your need.

Wedge Wire Screen Panels Feature:

1) long service life
2) high opening rating
3) Uniform screen seam, stable welding quality
4) good strength, stiffness and load capacity
5)Strong to be acidproof , alkali-resisting , bear high temperature , pulling force and wearability

Wedge Wire Screen Panels Advantages:

Wedge wire and support rod adopt the international advanced continuity resistance welding technology automation mine screen mesh welding production equipment, sieve seam even, stable welding quality, wear-resisting, long service life and has a high strength, stiffness and bearing capacity, can make various shapes of the rigid screening filter device. And the screen seam is v - shaped, easy to leak, not easy to plug.

L500mm Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment

L500mm Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment

L500mm Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment

L500mm Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment

L500mm Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment

L500mm Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment

L500mm Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment
