AISI 304 OD 114mm Sand Control Downhole Slotted Tube
AISI 304 OD 114mm Sand Control Downhole Slotted Tube
AISI 304 OD 114mm Sand Control Downhole Slotted Tube
AISI 304 OD 114mm Sand Control Downhole Slotted Tube
AISI 304 OD 114mm Sand Control Downhole Slotted Tube
AISI 304 OD 114mm Sand Control Downhole Slotted Tube
AISI 304 OD 114mm Sand Control Downhole Slotted Tube
AISI 304 OD 114mm Sand Control Downhole Slotted Tube
Specifications
Brand Name :
Heng Yuan
Model Number :
HY004
Certification :
ISO9000
Place of Origin :
Hebei,China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7-10 work days,according to the quantity
Packaging Details :
Moister-Barrier with each piece,110 pcs per 20 ft container
Name :
Downhole Slotted Tube
Material :
AISI Stainless steel 304
Diameter :
4-1/2 "
O.D :
114mm
Slot size :
1.0 mm
Length :
3000mm
Wire :
1.5*2mm Vee wire
Support rod :
2*3mm Vee wire
No. of rods :
22 PCS
End connection :
Welded rings
Weight :
11KG/piece
Package :
Wooden boxes
Description

AISI 304 O.D 114mm Downhole Slotted Tube With 1.0mm Slot For Sand Control

Downhole Slotted Tube Description:

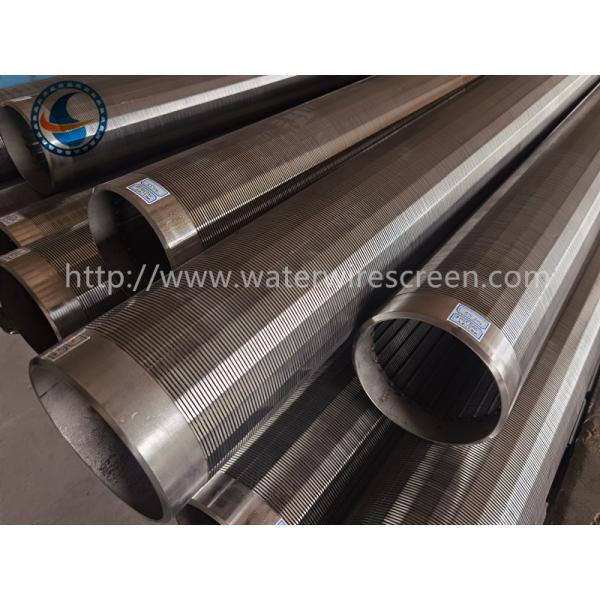

Downhole Slotted Tube is made by wrapped wire and support rods.

It is also be named: Johnson wire screen Johnson screen,Johnson well screen, Wedge wire screen,Wound screen Wire wrapped wire,Water well screen,Countinuous slot well screen,Wedge wire mesh,Sand control screen,Rotary filter drum Downhole slotted tube,Wire screen cylinder,Profile Wire Downhole Slotted Tube,Wire wrap screen,Wire wrapped screen pipe, Johnson Screen, Spiral screen tube, Welded wedge wire screen,Continuous slot wire wrap well screens,Slot wire screen tube,Strainer screen wide slit screens, Well point screens,Oil screen tube.

Downhole Slotted Tube Specification:

Name Downhole Slotted Tube
Material Stainless steel
Grade 304
O.D 114 mm
Size 4-1/2"
Slot size 1.0mm
Length 3 m
End connection Welded rings
Wire size 1.5*2mm Vee wire, 1.5mm is the width and 2mm is the height
Support rod 2*3mm Vee wire, 2mm is the width and 3mm is the height
Wire shape Vee-shaped

Downhole Slotted Tube Regular Specifications:

SIZE

(INCH)

O.D

(MM)

SLOT

(MM)

LENGTH

(M)

COLLAPSE STRENGTH

(BAR)

TENSILE WEIGHT

(TON)

WRAP WIRE

(WIDTH*HEIGHT(MM)

RODS

(MM)
3-1/2 88.9 1.0 3 ＞22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 ＞28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 ＞83 45 3.2*6.0 5.0MM*32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 ＞60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 ＞50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 ＞80 37.8 3.0*5.0 4.0MM/59

Downhole Slotted Tube Characteristic:

  • Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
  • Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down, thus to save energy consumption.
  • Reduce the abrasion of the pump
  • Under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.
  • Extend the life span of wells
  • Comparatively, groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.

Downhole Slotted Tube Application:

· Water Well

·Waste Water Treatment

.Water supply systems

·Coal & Mine

·Food Processors & Beverage Screens

·Environmental protection

·Refining & Petrochemical

·Architecture & Construction

AISI 304 OD 114mm Sand Control Downhole Slotted Tube

AISI 304 OD 114mm Sand Control Downhole Slotted Tube

AISI 304 OD 114mm Sand Control Downhole Slotted Tube

AISI 304 OD 114mm Sand Control Downhole Slotted Tube

AISI 304 OD 114mm Sand Control Downhole Slotted Tube
