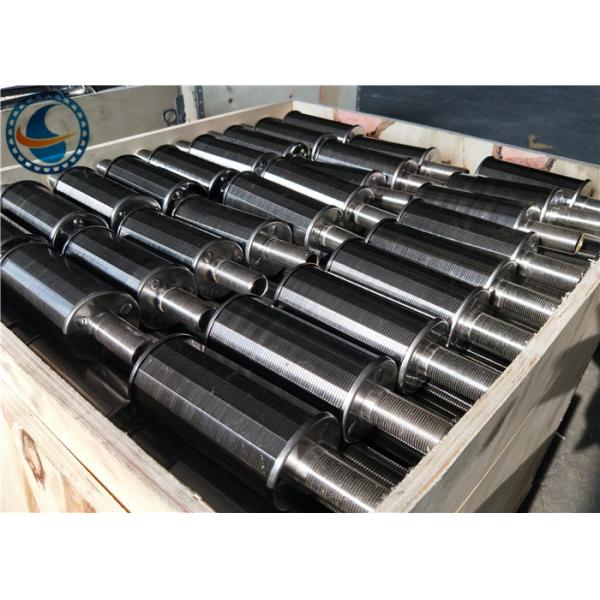

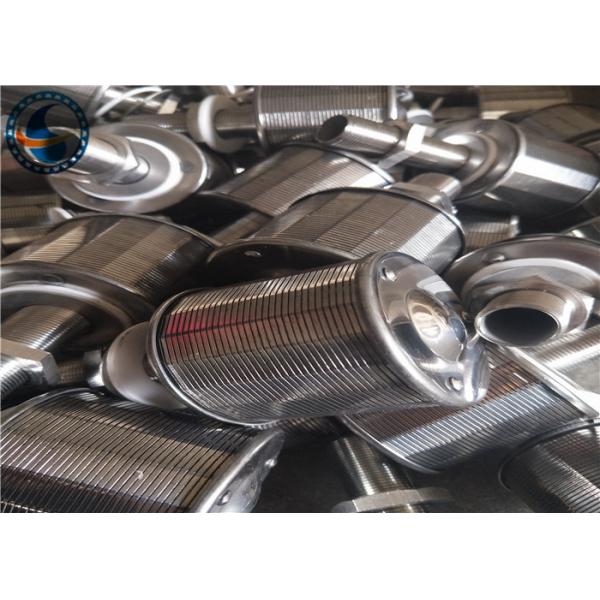

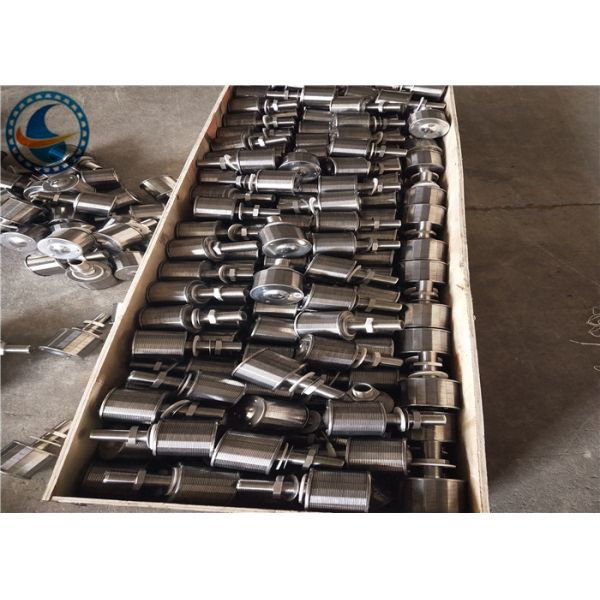

Stainless Steel Continuous slot Johnson Profile Wire Screen Filter Nozzles

Product Description:

Stainless Steel Water Treatment Wedge Wire Filter Screen Nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Construction:

Continuous slot design provides increased open area for better collection.
Standard nozzles are 2in. /51mm diameter and can be attached to the plate either with threaded end fittings or with "L" bolts.
Standard slot opening is typically range between 0.006"(0.15mm), and 0.020in. /0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
Wedge wire screen is highly resistant to plugging.
Choice of either 3/4" NPT or 1" NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
Less expensive than other screen of equal efficiency.
Small systems may be built modularly from off-the-shelf components requiring minimal customization.

Product Feature:

Metal construction.
Excellent roundness.
Great flow area.
High mechanical load capacity.
High precision slot width.
Pressure and temperature resistance.
Anti-corrosion, anti-aging.
Safe, reliable.
Environment friendly.
Easy installation.
Long service time.

Application:

The filter nozzle can be used at the filter equipment for the filtration of water, petrol resin and other medium. It can be also used in water treatment, water soft, conversion of sea water into fresh water, the filter of food chemistry and other filter industry.
Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin trap

Specificaitons:
