Stainless steel Wedge Wire Screen Panels for Filtering and Grain Drying

Introduction:

1.Wedge wire screen also be named Vee-Wire screen pipe,Continuous slot Vee-wire screen tube,Wire wrapped screen,Wire wound screen,water filter.

2.It is made up of Vee-shaped wrapped wire and round rod in each intersection,welded together.

Accurate slot and high filtration precision.

Remarks:

1. Make tubes with different material according to user requirements.

2. Slot should be bigger than 0.025mm and less that 3000mm long.

Advantages:

1.The wedge tapered opening becomes progressively wider increasing dewatering efficiency.

2.Non plugging,to make sure the smooth circulation.

3.Slot sizes ranging form0.05mm to 20mm.

4.Durable and capable of carrying heavier loads without support structures.

5.One piece construction.

6.Wide range of materials.

7.Easy to clean,long service life,safe and reliable,low comprehensive cost.

Parameters:

Gap (mm) : 0.02, 0.025, 0.03, 0.04, 0.05, 0.06, 0.08, 0.10, 0.15, 0.2, 0.25, 0.30-35, can also be made according to customer requirements

Material: low carbon steel, low carbon steel galvanized, stainless steel (304, 316L, Hastelloy, etc.)

Length: 100-4000 - mm

Width: 100-4000 - mm

Screen specifications: conventional 0.75*1.5mm, 1*2mm, 2*3mm, 2.3*3mm, 3*5mm

Applications:

1. Mining machinery: used for sand settling and dewatering coal preparation in coal preparation plant.

2. Malt machinery: suitable for malt mill grinding machine, floss machine, drying box, etc.

3. Beer machinery: applicable to beer brewery filter tank, high opening rate, long service life.

4. Chemical industry: used for sugar mill, paper mill wastewater treatment; Filtration, dehydration and supporting use of various coatings in fertilizer plants; Starch filtration in food factory;

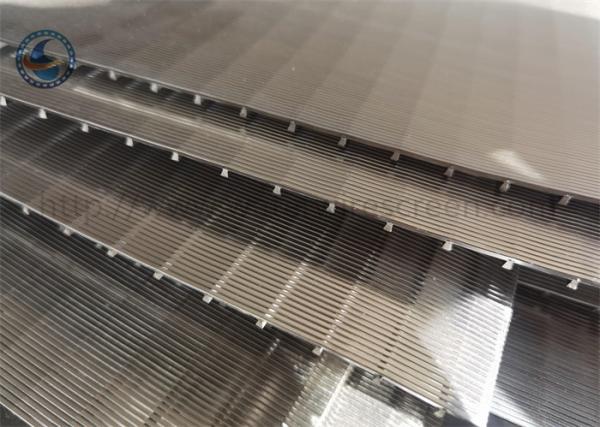

Pictures:
