Dewatering Sand Control 3-1/2 Johnson Stainless Steel Well Screen
Dewatering Sand Control 3-1/2 Johnson Stainless Steel Well Screen
Dewatering Sand Control 3-1/2 Johnson Stainless Steel Well Screen
Dewatering Sand Control 3-1/2 Johnson Stainless Steel Well Screen
Dewatering Sand Control 3-1/2 Johnson Stainless Steel Well Screen
Dewatering Sand Control 3-1/2 Johnson Stainless Steel Well Screen
Dewatering Sand Control 3-1/2 Johnson Stainless Steel Well Screen
Dewatering Sand Control 3-1/2 Johnson Stainless Steel Well Screen
Specifications
Brand Name :
HengYuan
Model Number :
HY091601
Certification :
ISO,SGS,CIQ,CE
Place of Origin :
Anping, Hebei, China
MOQ :
1 piece
Price :
negotiated price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1500 pcs / month
Delivery Time :
according to the quantity
Packaging Details :
wooden boxes , container
Name :
Dewatering Sand Control Johnson Wire Screen
Material :
Stainless steel
Diameter :
3-1/2"
Length :
2900mm
Slot :
1.0mm
Wire size :
2*3mm Vee-wire
Support rod :
2*3mm Vee-wire
Technique :
Full welded
Features :
Non-clogging
Application :
In water well for sand control
Package :
Wooden boxes
Surface :
Polished
Description

3-1/2" SS Dewatering Sand Control Johnson Wire Screen

Introduction of Dewatering Sand Control Johnson Wire Screen:

Dewatering Sand Control Johnson Wire Screen, also known as the water well screen, wire wrapped screen, wound screen, wedge wire screen, is widely used in oil, gas, water well sand control industry, especially in the water well industry prominent position, widely used in water resources filter screen pipe. Stainless steel dewatering sand control Johnson wire screen using full welding production process, the application of special trapezoidal wire winding in a circumferential arrangement of a group of supporting wire welding from.

Dewatering Sand Control Johnson Wire Screen Performance Characteristics:

The application of trapezoidal wire, so that the screen tube gap between the formation of V shaped opening.

The trapezoidal wire continuous winding forms continuous high-density uniform gaps on the supporting wires arranged in a circular manner.

The winding wire and all supporting wire are connected by electric welding, durable, long working life cycle.

According to the actual needs of the design of support wire longitudinal arrangement and the continuation of the screen gap form, the stainless steel screen high compressive performance

Dewatering Sand Control Johnson Wire Screen Parameters:

1. Gap (mm) : 0.25mm, 0.5mm, 0.63mm, 0.75mm, 1.0mm in usual. (Min slot: 0.025mm)

2. The opening area is up to 80%.

3. Material: low carbon steel, low carbon steel galvanized, stainless steel (201, 304,316, etc.)

4. The length is 5.8 meters or 2.9 meters to fit container.

5. Outside diameter from 89mm to 477mm

6. Connection type: Welded rings or male/ female threaded connection.


Dewatering Sand Control Johnson Wire Screen Information:

Name: Johnson screen,Water wire screen,Water well screen, Wire warp screen,Wedge wire screen,

Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,Sand control screen,

Wedge wire screen pipe, Rotary filter drum,Oil screen.

Material: Stainless steel 304,316L,Non-magnetic Stainless steel, Low carbon galvanized,904L,
Duplex steel etc.
Diameter: From 29-1300mm (Normal diameter is in the below table)
Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table)
Length: From 100-6000mm (Normal length is 2.9m and 5.8m, to fit container)
Wrap wire:2*3.5mm,2.2*3.5mm,2.2*4.5mm,3*4.6mm,3*5mm,3*6mm,3*6.5mm,3*7mm etc.
Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire.
Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.

Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,
Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,
Architecture & Construction etc.

Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tenslie

Strength

 Collapse Strength

Wrap wire

Vee-shaped wire(mm)

Support rod

Round wire(mm)
3-1/2 88.9 1.0 2.9 ＞22 10.2 2.2*3.5 (Width*height) ø3.8MM×22
4-1/2 114.3 1.0 2.9 ＞28 11.5 2.2*3.5(Width*height) ø3.8MM×22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.2*3.5(Width*height) ø3.8MM×32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.2*3.5(Width*height) ø3.8MM×32
6-5/8 168.3 0.63 5.8 ＞83 45 3.2*6.0(Width*height) ø6.0MM×32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.3*3.5(Width*height) ø3.8MM×48
8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0*5.0(Width*height) ø4.0MM×48
8-5/8 219.1 1.0 5.8 ＞60 46 3.2*6.0(Width*height) ø5.0MM×48
10-3/4 273.1 0.75 5.8 ＞50 32.9 2.2*3.5(Width*height) ø4.0MM×55
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0*4.6(Width*height) ø4.8MM×55
10-3/4 273.1 1.0 5.8 ＞100 48 3.2*6.0(Width*height) ø5.0MM×55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0*5.0(Width*height) ø4.0MM×56
14 355.6 1.0 2.9 ＞80 37.8 3.0*5.0(Width*height) ø4.0MM×59
16 426 1.0 2.9 ＞80 37.5 3.0*5.0(Width*height) ø4.0MM×54

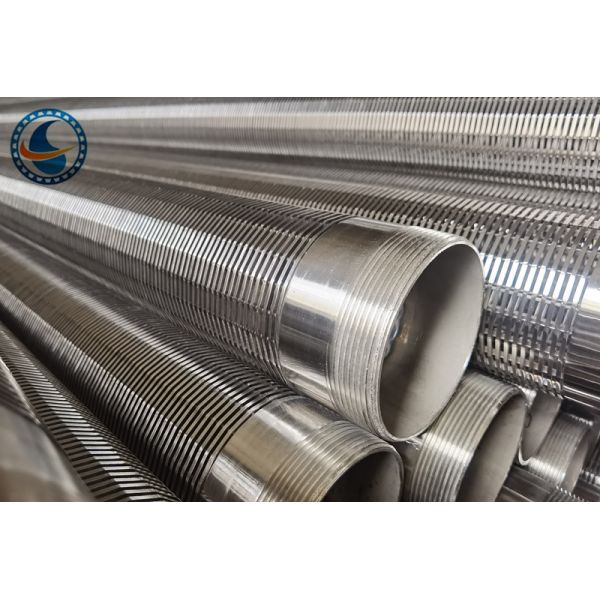

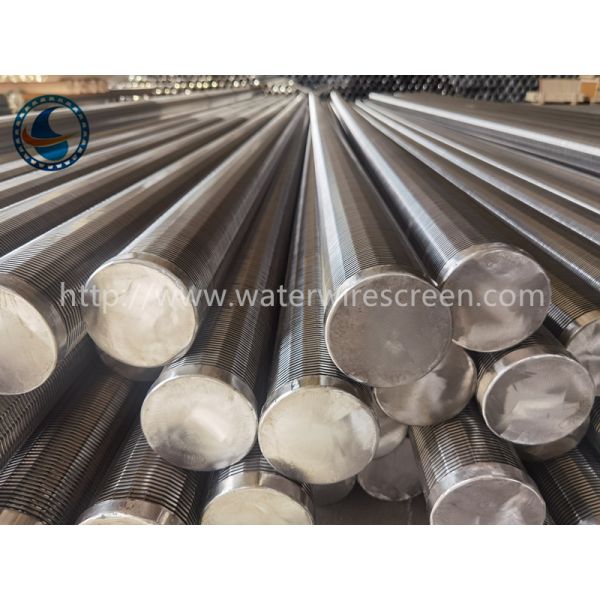

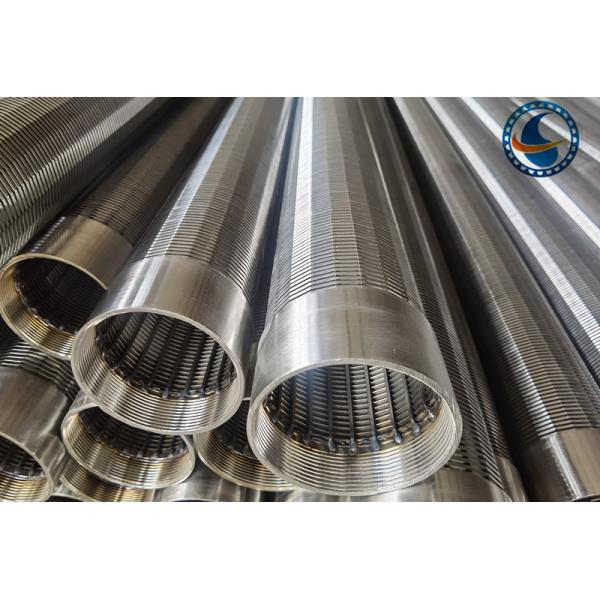

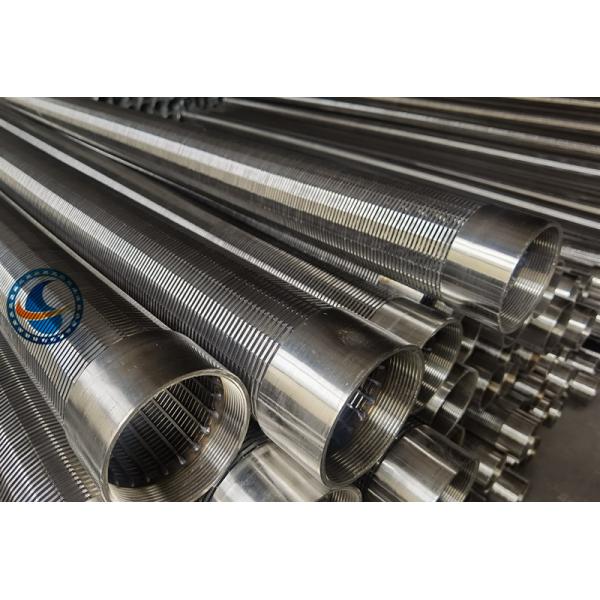

Dewatering Sand Control Johnson Wire Screen Pictures:

Dewatering Sand Control 3-1/2Dewatering Sand Control 3-1/2Dewatering Sand Control 3-1/2

Dewatering Sand Control 3-1/2Dewatering Sand Control 3-1/2
