316l 38mm Diameter Wound Stainless Steel Wedge Wire Screen With Dn25 Male Threaded
316l 38mm Diameter Wound Stainless Steel Wedge Wire Screen With Dn25 Male Threaded
316l 38mm Diameter Wound Stainless Steel Wedge Wire Screen With Dn25 Male Threaded
316l 38mm Diameter Wound Stainless Steel Wedge Wire Screen With Dn25 Male Threaded
316l 38mm Diameter Wound Stainless Steel Wedge Wire Screen With Dn25 Male Threaded
316l 38mm Diameter Wound Stainless Steel Wedge Wire Screen With Dn25 Male Threaded
316l 38mm Diameter Wound Stainless Steel Wedge Wire Screen With Dn25 Male Threaded
316l 38mm Diameter Wound Stainless Steel Wedge Wire Screen With Dn25 Male Threaded
Specifications
Brand Name :
Heng Yuan
Model Number :
HY091607
Certification :
ISO,CIQ,CE, FORM E etc
Place of Origin :
Hengshui City,Hebei,China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7-10 work days,according to the quantity
Packaging Details :
Moister-Barrier with each piece,64 pcs per 20 ft container
Name :
Wound Screen
Material :
stainless steel 316L
Diameter :
38mm
Length :
400mm
Slot size :
0.25mm
Wire :
1.5*2mm
Support rod :
2*3mm etc
Package :
Wooden box
End connection :
DN25 male threaded,
Hole shape :
Vee-shaped
Description

SS 316L 38mm Diameter Wound Screen With DN25 Male Threaded

Wound Screen Characteristics:

1. The application of wedge wire wound screen, so that the schroeder sieve tube gap between the formation of v-shaped opening. The design works more efficiently than other products and ensures smooth water filtration.

2. The trapezoidal wire continuous winding forms a continuous high-density uniform gap on the supporting wire in a circular arrangement, ensuring the opening area of schroeder sieve tube and no obstruction, and avoiding the high-density accumulation of sediment, providing a guarantee to improve the production efficiency and prolong the service life of the filter.

3. The winding wire and all supporting wires are connected by electric welding, durable, longer working life cycle.

4. Longitudinal arrangement of supporting wire and continuous gap form of screen tube designed according to actual demand make the product have higher compression performance.

Wound Screen Specification:

Name Wound Screen
Material Stainless steel 304, 304L, 316L and 321 etc.
Profile Wire

1.0 *2.0 mm 1.5*2.0mm 1.5*2.5mm 2*3mm 2.3*3.5mm 2.2*4mm 2.2*4.5mm

3*4mm 3*4.6mm etc
Support Rods 2*3mm 3*4mm 3*4.6mm 3*5mm 3*6mm 4*7mm
Round From 2.5mm to 6.0mm
Slot Size 0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc
Pipe Length Max 6 meter
Pipe diameter 25mm to 1300mm
Screen Ends Plain Beveled ends, male/female threaded, flange or close up.

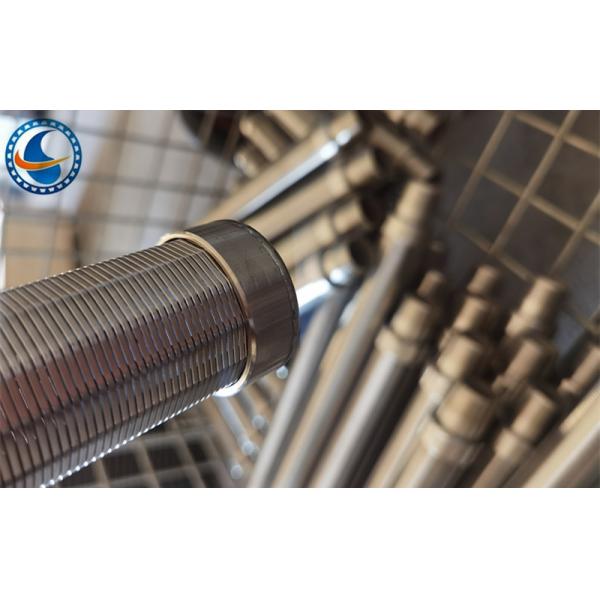

Wound Screen Pictures:

316l 38mm Diameter Wound Stainless Steel Wedge Wire Screen With Dn25 Male Threaded316l 38mm Diameter Wound Stainless Steel Wedge Wire Screen With Dn25 Male Threaded
