Specifications
Brand Name :
Hengyuan
Model Number :
HY102703
Certification :
CE,ISO,CIQ,CO,FORM E,CCPIT
Place of Origin :
Hengshui City,Hebei Province
MOQ :
2 Pieces
Price :
USD 50-200 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
More than 20 PCS per day
Delivery Time :
5-8 work day
Packaging Details :
Wooden box
Name :
Rotary Drum Wire Screens
Material :
Stainless Steel
OD :
500mm
Length :
1500mm
Slot :
0.3mm
Wire size :
1.5*2.5mm Vee wire
Support rod :
2*3mm Vee wire
Distance of rods :
20mm
Ends :
No ends
Filter type :
FITO
Surface :
Acid washing
Package :
Wooden box
Description

Rotay Drum Wire Screens In High Pressure Working Conditions

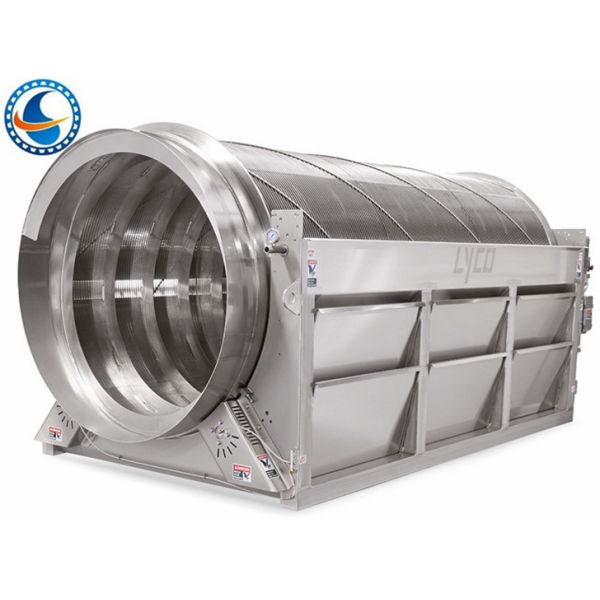

Rotary drum wire screen, also called wedge wire cylinder, is a type of cylindrical "V" shape wedge wire screen, which is made of stainless steel VEE shaped wires and support rods.

As the wedge wire rotary drum screen is working under high pressure when separation and filtration, so there is reinforced rods on the structure.

The end of rotary drum wire screen is welded flanges or welded rings for easy installation.

The slot sizes and structures may varies according to different materials and working conditions.

Rotay Drum Wire Screens Working principle:

The drum rotary wire screen is installed on the roller screen machine. Drive the internal blades by motor to compress the filtration subjects and separate the particles and liquid with rotary drum wire screen (wedge wire screen). Click for detailed working principle of rotary drum screen in water treatment.

Rotay Drum Wire Screens Use:

Gas and oil industries
Production of fuel and lubricants
Desulphurization
Drying of natural gas
Regeneration of catalysts
Catalytic reactors
Protection of fittings and compressors
Chemical industry
Processing of paint and coating
Processing of chemicals
Processing of polymers
Purification of potassium
Purification of phosphates
Food industry
Extraction
Fluidized beds
Absorption
Adsorption
Sorting
Drying

Rotary Drum Wire Screens Normal Sizes:

Outside Diameter

(mm)

Length

(mm)

Slot

(mm)

 Type of end connection

29,38,57,63,76,89,108,

150,168,320,600 etc

500,1000,2000 etc

 0.025,0.1,0.25,0.5,1.0 etc

Welded rings, male/female threaded coupling,flange,

closed up and so on

Explanation

Besides above of the specification screen pipe, we also can act according to the customer’s request. Diameter: ø29mm-ø1300mm. The length from the 100mm-6000mm.
