6-5/8 Low Carbon Galvanized Wedge Wire Screen Filter For Sand Control
6-5/8 Low Carbon Galvanized Wedge Wire Screen Filter For Sand Control
6-5/8 Low Carbon Galvanized Wedge Wire Screen Filter For Sand Control
6-5/8 Low Carbon Galvanized Wedge Wire Screen Filter For Sand Control
6-5/8 Low Carbon Galvanized Wedge Wire Screen Filter For Sand Control
6-5/8 Low Carbon Galvanized Wedge Wire Screen Filter For Sand Control
6-5/8 Low Carbon Galvanized Wedge Wire Screen Filter For Sand Control
6-5/8 Low Carbon Galvanized Wedge Wire Screen Filter For Sand Control
Specifications
Brand Name :
HengYuan
Model Number :
HY-0726
Certification :
ISO,SGS,CIQ,CE
Place of Origin :
Anping, Hebei, China
MOQ :
1 piece
Price :
negotiated price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1500 pcs / month
Delivery Time :
according to the quantity
Packaging Details :
wooden boxes , container
Name :
Johnson Wedge Wire Screen
Material :
Low carbon galvanized
Diameter :
6-5/8"
Length :
2900mm
Slot :
1.0mm
Wire size :
2*3.5mm Vee wire
Support rod :
ø3.8mm
Technique :
Full welded
Features :
Non-clogging
Application :
In water well for sand control
Package :
Container
Surface :
Galvanized
Description

6-5/8" Low Carbon Galvanized Johnson Wedge Wire Screen For Sand Control

Low Carbon Galvanized Wedge Wire Screen is welded by winding the support strip, with high welding strength, uniform gap, smooth surface, filter surface without burr, edges and corners. Because of the special wedge-shaped wire structure, compared with the sintered wire filter element and other filter elements, it is not easy to plug, easy to backwash and long service life.

Hengyuan wedge filter filter accuracy range of 0.01mm-10mm, the product is currently in fine chemical industry, beer, oil, lubricating oil, fuel, plastic, electroplating, ceramics, pharmaceutical, sugar and other industries of filtration, adsorption and precious metal catalyst and other solid recovery application.

The main material of the filter element produced by the company is Low carbon galvanized,304, 316L, and can also be designed and produced according to customer requirements.

Low Carbon Galvanized Johnson Wedge Wire Screen Information:

Name: Johnson screen,Water wire screen,Water well screen, Wire warp screen,Wedge wire screen,

Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,Sand control screen,

Wedge wire screen pipe, Rotary filter drum,Oil screen.

Material: Stainless steel 304,316L,Non-magnetic Stainless steel, Low carbon galvanized,904L,
Duplex steel etc.
Diameter: From 29-1300mm (Normal diameter is in the below table)
Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table)
Length: From 100-6000mm (Normal length is 2.9m and 5.8m, to fit container)
Wrap wire:2*3.5mm,2.2*3.5mm,2.2*4.5mm,3*4.6mm,3*5mm,3*6mm,3*6.5mm,3*7mm etc.
Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire.
Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.

Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,
Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,
Architecture & Construction etc.

Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tenslie

Strength

 Collapse Strength

Wrap wire

Vee-shaped wire(mm)

Support rod

Round wire(mm)
3-1/2 88.9 1.0 2.9 ＞22 10.2 2.2*3.5 (Width*height) ø3.8MM×22
4-1/2 114.3 1.0 2.9 ＞28 11.5 2.2*3.5(Width*height) ø3.8MM×22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.2*3.5(Width*height) ø3.8MM×32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.2*3.5(Width*height) ø3.8MM×32
6-5/8 168.3 0.63 5.8 ＞83 45 3.2*6.0(Width*height) ø6.0MM×32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.3*3.5(Width*height) ø3.8MM×48
8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0*5.0(Width*height) ø4.0MM×48
8-5/8 219.1 1.0 5.8 ＞60 46 3.2*6.0(Width*height) ø5.0MM×48
10-3/4 273.1 0.75 5.8 ＞50 32.9 2.2*3.5(Width*height) ø4.0MM×55
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0*4.6(Width*height) ø4.8MM×55
10-3/4 273.1 1.0 5.8 ＞100 48 3.2*6.0(Width*height) ø5.0MM×55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0*5.0(Width*height) ø4.0MM×56
14 355.6 1.0 2.9 ＞80 37.8 3.0*5.0(Width*height) ø4.0MM×59
16 426 1.0 2.9 ＞80 37.5 3.0*5.0(Width*height) ø4.0MM×54

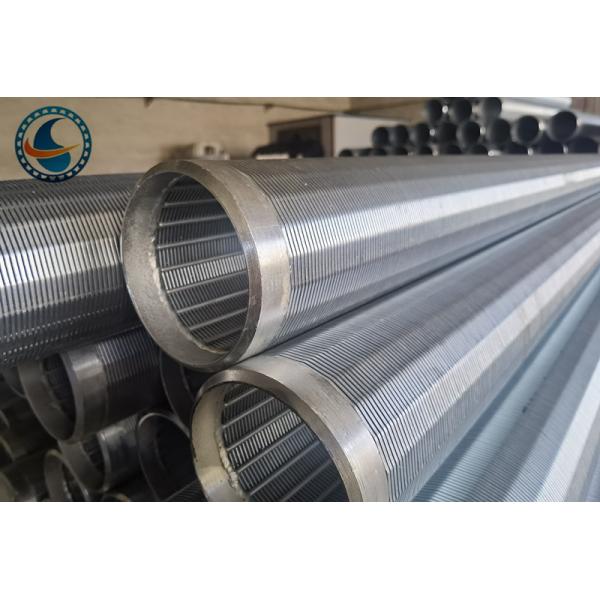

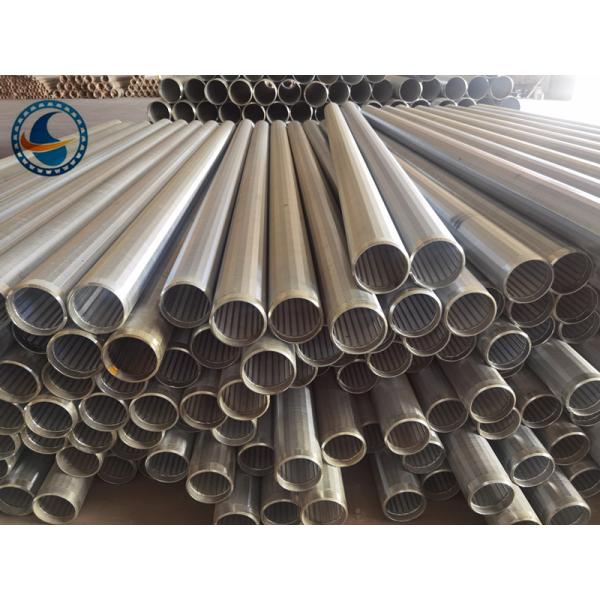

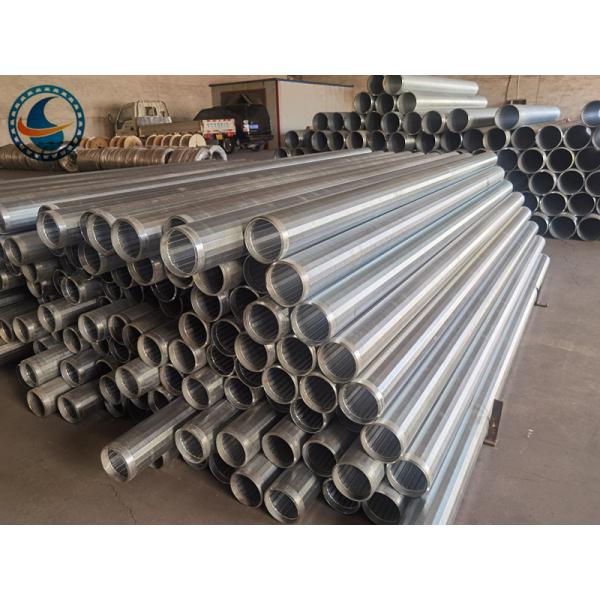

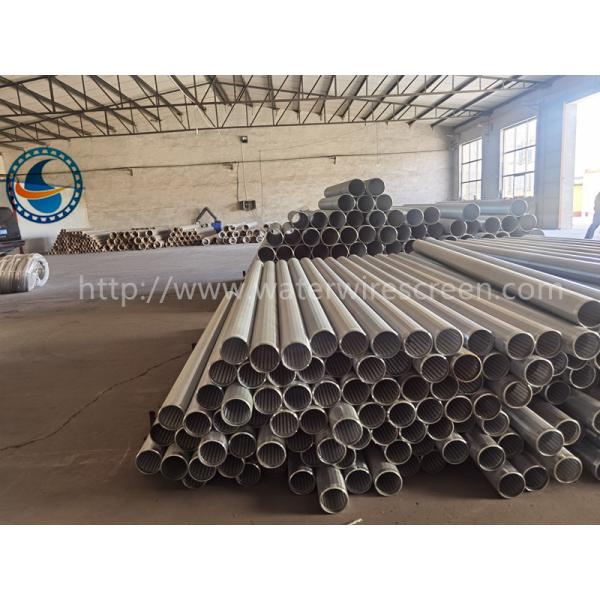

Low Carbon Galvanized Johnson Wedge Wire Screen​ Pictures:
6-5/86-5/86-5/86-5/86-5/8

Low Carbon Galvanized Johnson Wedge Wire Screen​ Appliation:
6-5/86-5/86-5/8
