Stainless Steel V Wire Wrapped 29mm Dia Gravel Pack Screen
Stainless Steel V Wire Wrapped 29mm Dia Gravel Pack Screen
Stainless Steel V Wire Wrapped 29mm Dia Gravel Pack Screen
Stainless Steel V Wire Wrapped 29mm Dia Gravel Pack Screen
Specifications
Brand Name :
Heng Yuan
Model Number :
HY005
Certification :
ISO,CIQ,CE, FORM E etc
Place of Origin :
Hebei,China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7-10 work days,according to the quantity
Packaging Details :
Moister-Barrier with each piece,64 pcs per 20 ft container
Package :
Woden box, Container
Slot size :
0.1 0.5 0.7 1.0 1.5 2.0 mm
Material :
stainless steel 304 316 L
Diameter :
29-1027 mm
Length :
up to 6 meter
Wire :
2.2*3.5mm; 3*4.6mm
End connection :
flange
Hole shape :
v-shape
Size :
2" 4" 6" 8" 10" 12" 14" 16"
Customization :
Support
Description

Wire-wound Screens

Product Description:

Wire-wound screens is composed of a "V"-shaped or wedge-shaped stainless steel wire and a stainless steel support bar. The smooth surface of the filter element is the filter surface, and the gaps are strips, which belong to the surface filter form. As a variety of automatic filters (such as automatic backwashing, scraper self-cleaning, scraper self-cleaning, suction self-cleaning filter) filter elements are widely used in fluid filtration in various industries.

Specification:

Item Wire-wound Screens
Material stainless steel 201 304 304L 316 316L 904 904L titanium etc.
Slot Size 25um-30mm
Pipe Length Max 6 meter
Pipe diameter 29mm to 1200mm
Pipe Screen Ends Plain Beveled ends, male/female threaded, flange or close up.
Application areas:

Petrochemical industry

Sewage treatment and flood system

Mineral processing, papermaking and food processing

Characteristic:


1. The application of trapezoidal (wedge-shaped) wire on the filter element creates a V-shaped opening between the screen gaps. Due to the inherent advantages of this device, it can operate more efficiently than other forms of filtration products. It not only ensures the smoothness of water filtration, but also the flow rate of the wedge-shaped filter pipe is 3 times that of the bridge-type filter pipe in terms of work efficiency. It is 9 times that of slotted water filter!
2. The structural advantages of the wire-wound tube. The arrangement of longitudinal support rods designed according to actual needs and the continuous gap form of the screen make the product have higher compressive performance. The T-shaped winding wire and all the longitudinal support rods are connected and combined by electric welding, which is strong and durable, has a longer working life cycle and low overall cost.
3. The filter tube produced by our factory has a large gap. Customers can choose the size of the screen gap between 0.02mm-60mm to meet different application conditions.

Pictures:

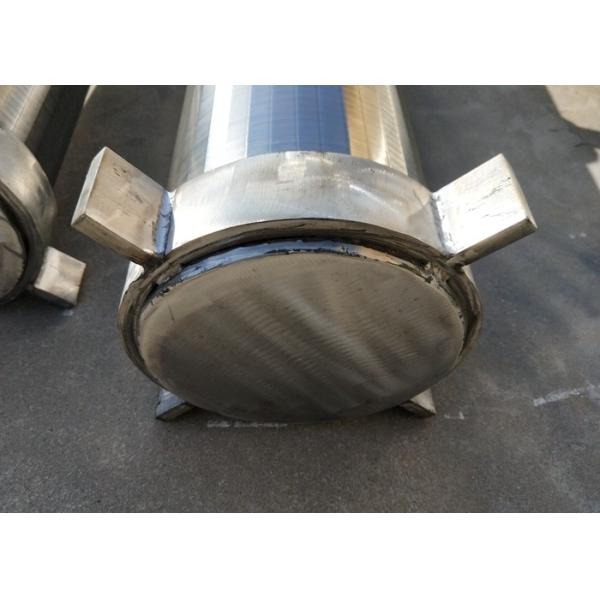

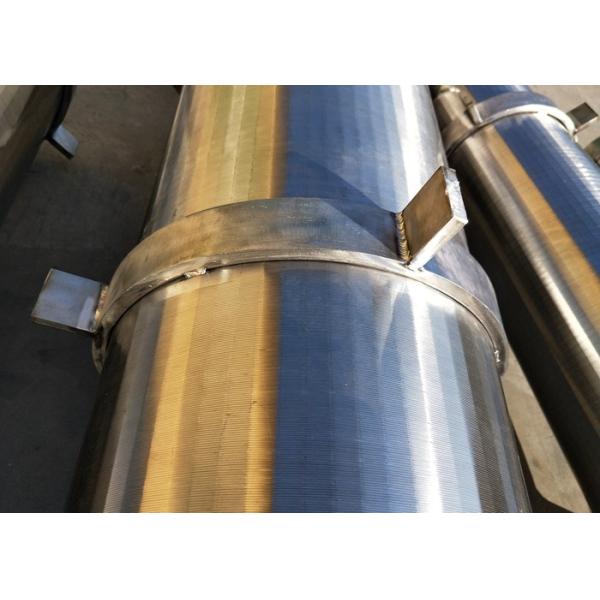

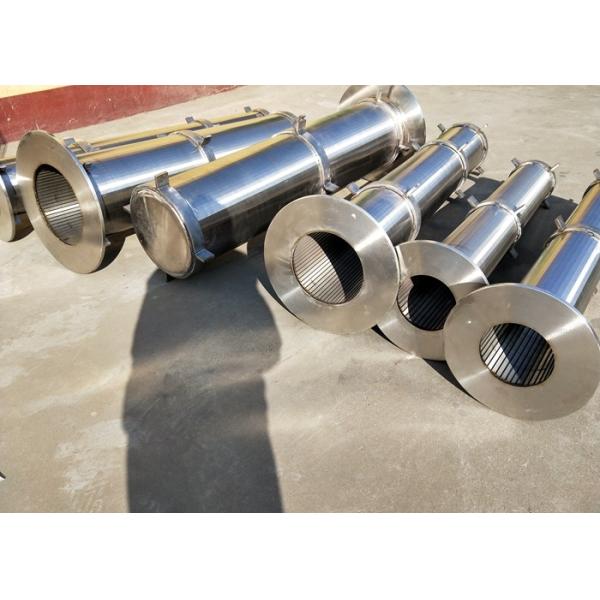

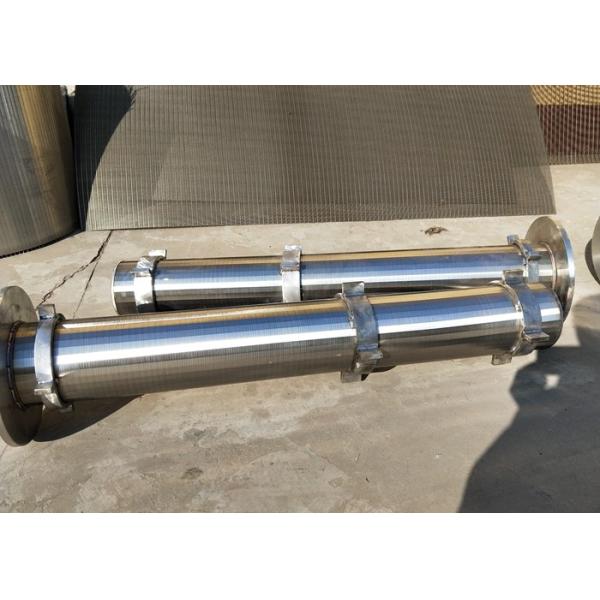

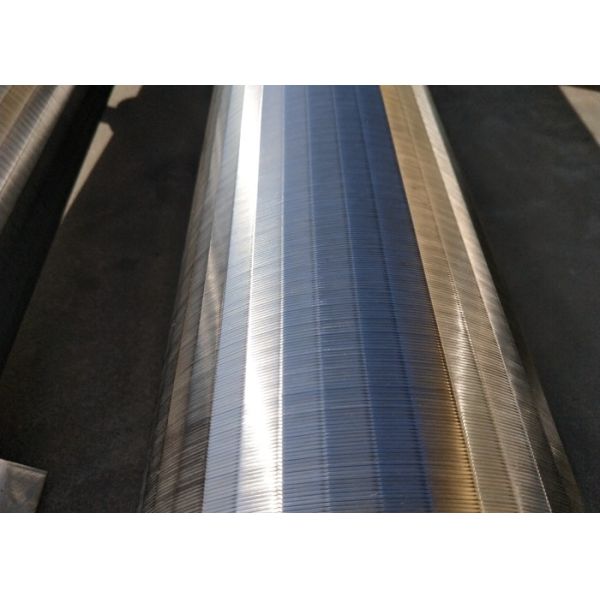

Stainless Steel V Wire Wrapped 29mm Dia Gravel Pack ScreenStainless Steel V Wire Wrapped 29mm Dia Gravel Pack ScreenStainless Steel V Wire Wrapped 29mm Dia Gravel Pack ScreenStainless Steel V Wire Wrapped 29mm Dia Gravel Pack ScreenStainless Steel V Wire Wrapped 29mm Dia Gravel Pack ScreenStainless Steel V Wire Wrapped 29mm Dia Gravel Pack Screen
