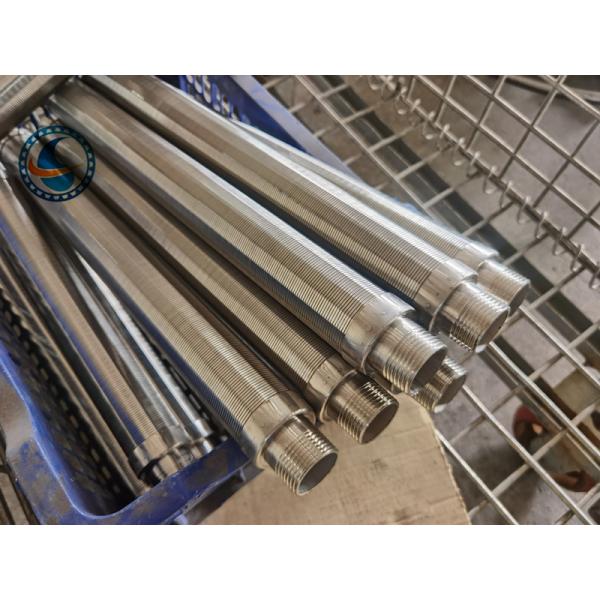

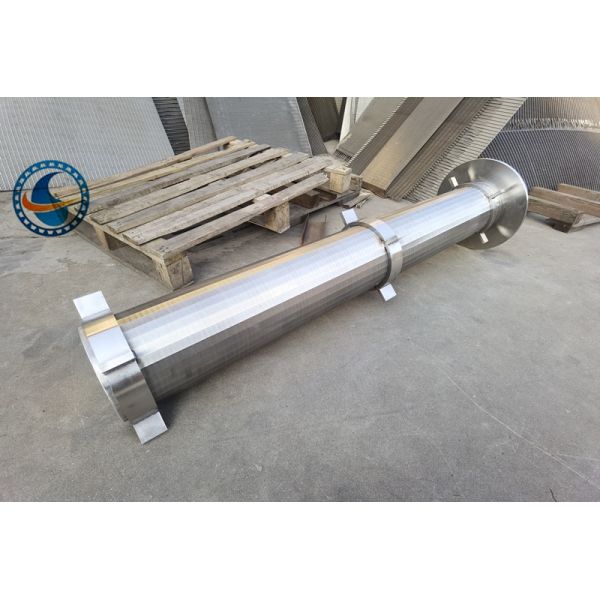

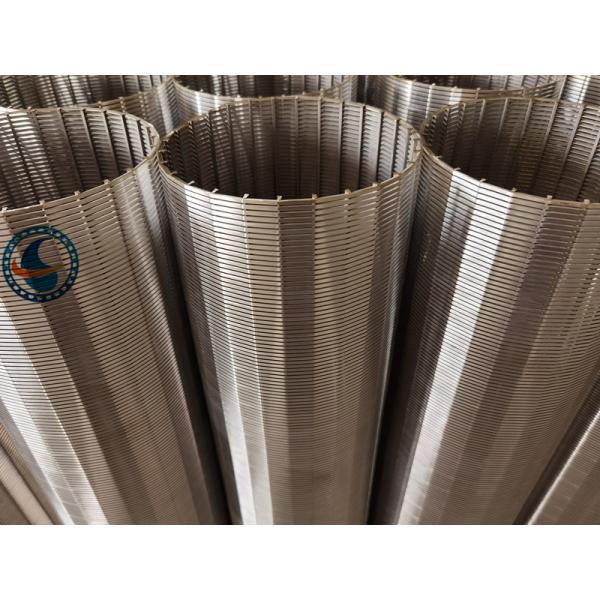

Ce Stainless Steel 316l Profile Wedge Wire Screen Pipe
Ce Stainless Steel 316l Profile Wedge Wire Screen Pipe
Ce Stainless Steel 316l Profile Wedge Wire Screen Pipe
Ce Stainless Steel 316l Profile Wedge Wire Screen Pipe
Ce Stainless Steel 316l Profile Wedge Wire Screen Pipe
Ce Stainless Steel 316l Profile Wedge Wire Screen Pipe
Ce Stainless Steel 316l Profile Wedge Wire Screen Pipe
Ce Stainless Steel 316l Profile Wedge Wire Screen Pipe
Specifications
Brand Name :
Heng Yuan
Model Number :
HY112506
Certification :
ISO,CIQ,CE, FORM E etc
Place of Origin :
Hengshui City,Hebei,China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7 days
Packaging Details :
Wooden box
Name :
Profile Wedge Wire Screen Filter
Material :
Stainless steel 316L
Diameter :
120mm
Length :
1000mm
Slot size :
0.5mm
Wire :
1.5*2.5mm
Support rod :
2*3mm
Surface :
Polished
Ends :
Without ends
Hole shape :
Vee-shaped
Description

Profile Wedge Wire Screen Filter

What is profile wedge wire screen filter ?

Profile wedge wire screen filter is a metal filter product with high mechanical strength and a self-supporting structure.
It is made of two parts: a V-shaped profile wire and T-shaped (triangular) support rod, which is welded through the ring fusion welding process.

The profile wire is the filtering surface, and the supporting rod plays a supporting role.
Compared with other metal filter cores: Firm structure, stable filtration accuracy, not blocked, high opening area.

Profile wedge wire screen filter Advantage:


1. V wire structure, the small contact area between impurities and screen.
So it has the property of not blocking and easy to clean.


2. Adopt the most advanced ring fusion welding technology on the market at present.
Compared with other kinds of metal filtration products, its strength is greater.


3. Stable filtering accuracy
As for the metal mesh filter, with the use time increases, the filter layer will be seriously worn, the hole diameter will change, and filtering accuracy will change greatly. The wedge filter element does not have this problem.


4. Pressure drop.
Low-pressure loss, energy saving.


5. Large opening area.
Continuous slotting structure, therefore, compared with other kinds of metal filter elements, its opening area is larger.


6. High capacity & flow rate.

Profile Wedge Wire Screen Filter Specification:

Name Profile Wedge Wire Screen Filter
Material Stainless steel 304, 304L, 316L and 321 etc.
Profile Wire

1.0 *2.0 mm 1.5*2mm 1.5*2.5mm 2*3mm 2.3*3.5mm 2.2*4mm 2.2*4.5mm,3*4.6mm,3*5mm etc
Support Rods 2*3mm 3*4mm 3*4.6mm 3*5mm 3*6mm 4*7mm
Round From 2.5mm to 6.0mm
Slot Size 0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc
Pipe Length Max 6 meter
Pipe diameter 25mm to 1300mm
Screen Ends

Plain Beveled ends, male/female threaded, flange or close up.

Ce Stainless Steel 316l Profile Wedge Wire Screen PipeCe Stainless Steel 316l Profile Wedge Wire Screen PipeCe Stainless Steel 316l Profile Wedge Wire Screen Pipe
