Stainless Steel Vee Dia 89mm Wedge Wire Screen Pipe
Stainless Steel Vee Dia 89mm Wedge Wire Screen Pipe
Stainless Steel Vee Dia 89mm Wedge Wire Screen Pipe
Stainless Steel Vee Dia 89mm Wedge Wire Screen Pipe
Stainless Steel Vee Dia 89mm Wedge Wire Screen Pipe
Stainless Steel Vee Dia 89mm Wedge Wire Screen Pipe
Stainless Steel Vee Dia 89mm Wedge Wire Screen Pipe
Stainless Steel Vee Dia 89mm Wedge Wire Screen Pipe
Specifications
Brand Name :
Heng Yuan
Model Number :
HY122205
Certification :
ISO,CIQ,CE, FORM E etc
Place of Origin :
Hengshui City,Hebei,China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7-10 work days,according to the quantity
Packaging Details :
Wooden boxes
Name :
Vee-Wire Wedge Wire Screen Pipes
Material :
Stainless Steel
Diameter :
89mm
Length :
1000mm
Slot size :
25μm
Wire :
1*2mm
Support rod :
2*3mm
Package :
Wooden box
Surface :
Acid washing
Description

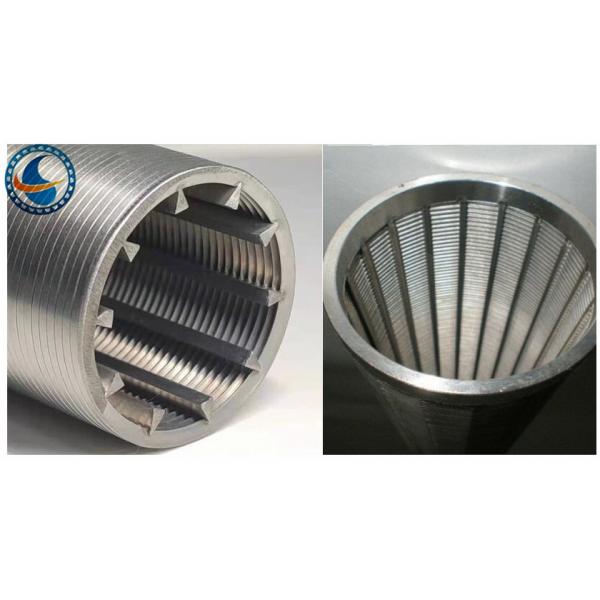

Stainless Steel Vee-Wire Wedge Wire Screen Pipe

This is a multipurpose screen with characteristics of toughness and clogging resistance where slit / slot (mesh) suitable for the application are formed by arranging "wedge wires" with a triangle shape at equal intervals. They can be used for filtration, solid-liquid separation, classification, dewatering, concentration, etc. regardless of industry or location.

Vee-Wire Wedge Wire Screen Pipes Advantage:

① Screen formation with wire diameter larger than the slit is possible.
② Because the screen surface is smooth, the degree of wear is constant.
③ The standard material is stainless steel (SUS304, 316L).Also can be other material according to your request.

Therefore, Wedge Wire Screen Tubes feature higher strength and durability than filters such as wire mesh, perforated plates or filter cloths, and depending on the usage environment and material, they can be used almost indefinitely without replacement, reducing running costs. In addition, we are also able to produce Wedge Wire Screen using special materials such as titanium or duplex stainless steel.

Vee-Wire Wedge Wire Screen Pipes Specification:

Name

Vee-Wire Wedge Wire Screen Pipes
Material Stainless steel 304, 304L, 316L and 321 etc.
Profile Wire

1.0 *2.0 mm 1.5*2mm 1.5*2.5mm 2*3mm 2.2*3.5mm 2*4mm 2.2*4.5mm,3*4.6mm,3*5mm etc
Support Rods 2*3mm 3*4.6mm 3*5mm 3*6mm
Round From 2.5mm to 6.0mm
Slot Size 0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc
Pipe Length Max 6 meter
Pipe diameter 25mm to 1300mm
Screen Ends Plain Beveled ends, male/female threaded, flange or close up.

Stainless Steel Vee Dia 89mm Wedge Wire Screen Pipe
