Full Welded Profile Wedge Wire Screen Pipe Stainless Steel
Full Welded Profile Wedge Wire Screen Pipe Stainless Steel
Full Welded Profile Wedge Wire Screen Pipe Stainless Steel
Full Welded Profile Wedge Wire Screen Pipe Stainless Steel
Full Welded Profile Wedge Wire Screen Pipe Stainless Steel
Full Welded Profile Wedge Wire Screen Pipe Stainless Steel
Full Welded Profile Wedge Wire Screen Pipe Stainless Steel
Full Welded Profile Wedge Wire Screen Pipe Stainless Steel
Specifications
Brand Name :
Heng Yuan
Model Number :
HY122206
Certification :
ISO,CIQ,CE, FORM E etc
Place of Origin :
Hengshui City,Hebei,China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7-10 work days,according to the quantity
Packaging Details :
Wooden boxes
Name :
Full Welded Wedge Wire Screen Pipe
Material :
Stainless Steel
Diameter :
108mm
Length :
1000mm
Slot size :
0.05mm
Wire :
1.5*2.5mm
Support rod :
3*5mm
Package :
Wooden box
Surface :
Acid washing
Description

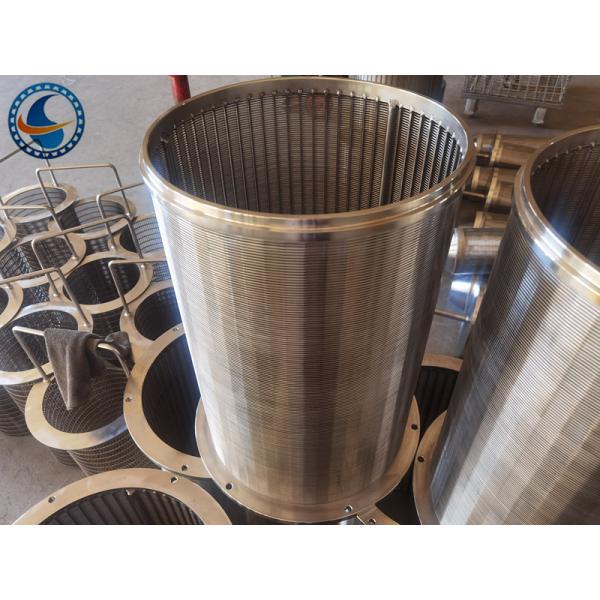

Stainless Steel Full Welded Profile Wire Wedge Wire Screen Pipe

Our Full Welded Profile Wire Wedge Wire Screen Pipes serve a number of different purposes ranging from filtering and separation of impurities in presses in the paper production process to the separation of disparate solids using our vibrating screens in the steel industry. So for whatever application you have that requires Profile Wire Screens, feel free to contact us at CP Screens for a screening solution.

Full Welded Wedge wire screen pipe has slits which are formed to fit each use by arranging wedge-shaped profile wires in parallel at equal intervals. It is a multi-purpose screen with the features of reduced possibility of clogging and sturdy and precision-made construction.

Features Of Full Welded Profile Wire Wedge Wire Screen Pipe:

1. LESS BLINDING AND HIGH DEWATERING EFFICIENCY
The wedge wire screen's blinding or clogging is reduced and therefore its dewatering efficiency becomes high, since its contact area with solids passing through is small because of the wedge-shaped profile of wires. Furthermore, the screen's backwashing efficiency is high with the result that its maintenance is easy.


2. HIGH-PRECISION AND STURDY CONSTRUCTION
As compared with conventional woven wire cloths, this screen can form finer slits with thicker wires.


3. BROAD FLEXIBILITY IN DESIGN
The wedge wire screen is so flexible in workability that it can be formed into various shapes such as flat panels, cylinders, cones, etc.


4. FLAT SURFACE
The wedge wire screen's flat surface insures the smooth flow of processing materials, catalysts, etc.

Full Welded Profile Wire Wedge Wire Screen Pipe Specification:

Name

Full Welded Profile Wire Wedge Wire Screen Pipe
Material Stainless steel 304, 304L, 316L and 321 etc.
Profile Wire

1.0 *2.0 mm 1.5*2mm 1.5*2.5mm 2*3mm 2.3*3.5mm 2.2*4mm 2.2*4.5mm,3*4.6mm,3*5mm etc
Support Rods 2*3mm 3*4mm 3*4.6mm 3*5mm 3*6mm 4*7mm
Round From 2.5mm to 6.0mm
Slot Size 0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc
Pipe Length Max 6 meter
Pipe diameter 25mm to 1300mm
Screen Ends Plain Beveled ends, male/female threaded, flange or close up.

Full Welded Profile Wedge Wire Screen Pipe Stainless Steel
