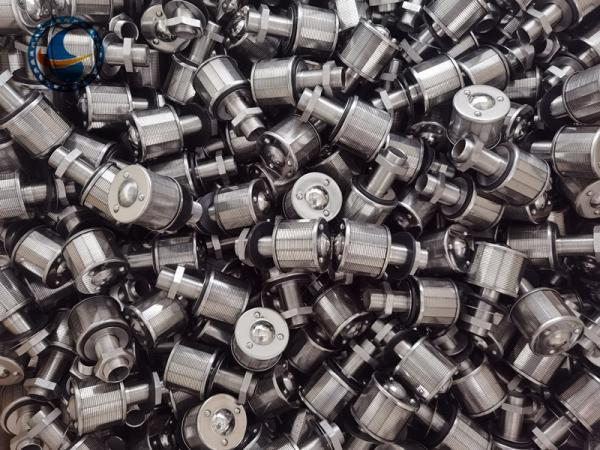

Wedge Wire Filter Cap Grade 304 Stainless Steel

The wedge wire filter cap is a backwashing device of soda water distribution system at the bottom of the filter, which can wash out the sludge debris in the filter and ensure the normal operation of the water quality and quantity of the filter.

The type of wedge wire filter cap is divided into long, medium and short handles, all made of 304 stainless steel.

The structure of the wedge wire filter cap is reasonable, the connection is firm, the pressure strength is high, the gap does not change, the use effect is good, can make the filter plate between the dead water corner area, no mud, the effect is good, the displacement per hour is 0.5 tons, 1 tons, 1.5 tons, 2 tons, 3 tons.

Stainless steel wedge wire filter cap is widely used to soften water quality of combined type, return program, ion exchange column equipment. The above 1 ton, half ton water cap is widely used in mechanical filters, live carbon adsorbent, valveless filter, water softening device and other water treatment equipment, to solve the casing and filter plate defects, filter plate production error is small, can effectively carry out filtration and gas-water recoil. It can not only prevent the outflow of Yin Yang resin, but also ensure the flow rate. Long handle water filter cap is often used in water distribution system of soda water backwash in filter tank. Short shank filter cap is used for single water backwash and gravity, pressure filter tanks and ion exchange.

Wedge Wire Filter Cap Sizes:

Material: SS 304, 316L, 904L, 2205, 2507, C276… (SS304 material can meet most of the use environment)
Wire size: 1.50mm (or other sizes as your need)
Slot size: 0.01" - 0.3"
Length: 50-100mm in usual
Diameter: 45mm, 53mm, 57mm, 70mm
Structure: Wedge wire screen pipe + Cover plate + Thread + Nuts & Gaskets
Application: Water treatment, sand filter, water softening, desalination.

Wedge Wire Filter Cap Normal Sizes:
