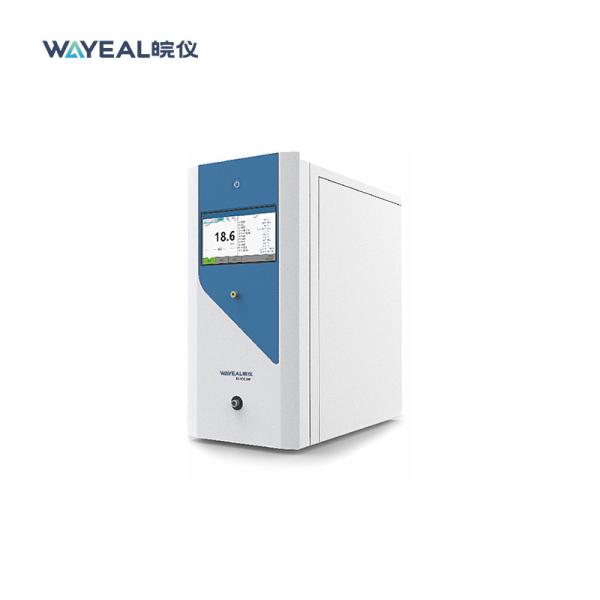

PC HPLC Machine With USB / Ethernet Interface DAD Detector Linearity >0.9999
PC HPLC Machine With USB / Ethernet Interface DAD Detector Linearity >0.9999
PC HPLC Machine With USB / Ethernet Interface DAD Detector Linearity >0.9999
PC HPLC Machine With USB / Ethernet Interface DAD Detector Linearity >0.9999
PC HPLC Machine With USB / Ethernet Interface DAD Detector Linearity >0.9999
PC HPLC Machine With USB / Ethernet Interface DAD Detector Linearity >0.9999
PC HPLC Machine With USB / Ethernet Interface DAD Detector Linearity >0.9999
PC HPLC Machine With USB / Ethernet Interface DAD Detector Linearity >0.9999
Specifications
Brand Name :
Wayeal
Model Number :
LC3200
Place of Origin :
China
Certification :
CE
MOQ :
1 Unit
Price :
Negotiate
Packaging Details :
Wooden Case
Delivery Time :
30 Days
Payment Terms :
T/T
Supply Ability :
50 Units/Month
Product Name :
High Performance Liquid Chromatography Instrument
Injection Volume :
1-100μL
Power Supply :
220V, 50Hz
Column Temperature :
4-85°C
Flow Rate Range :
0.001~10.000mL/min
Manufacturer :
Wayeal
Interface :
USB/Ethernet
Software :
SmartLab Chromatography Software
Description

Description of High Performance Liquid Chromatography Instrument:

High-performance liquid chromatography or commonly known as HPLC, is an analytical technique used to separate, identify or quantify each component in a mixture.The mixture is separated using the basic principle of column chromatography and then identified and quantified by spectroscopy.Wayeal's High Performance Liquid Chromatograph Instrument is a state-of-the-art HPLC instrument for both research and laboratory use. It features a flow rate of 0.001-10 mL/min, and has a capacity of up to 120 samples.

Technical Data of High Performance Liquid Chromatography Instrument:

Manufacturer: Wayeal
Product Name: Liquid Chromatography Instrument
Working Power Supply 220V, 50Hz
Ambient Temperature 10~40°C
Relative Humidity 20~85%
Qualitative Repeatability ≤0.2%
Quantitative Repeatability ≤0.4%
High Pressure Constant Flow Pump
Flow Rate Range 0.001~10.000mL/min
Setting Step 0.001mL/min
Pressure Range 0~42MPa
Pressure Pulsation 0.1MPa
Flow Rate Set Error ±0.2%
Flow Rate Stability RSD≤0.06%
Gradient Error ±1%
Column Oven
Temperature Control Range 4~85°C
Temperature Stability ±0.02°C
Temperature Setting Resolution 0.1°C
Autosampler
Injection Volume Repeatability ＜0.5%RSD
Linearity ＞0.9999
Cross Contamination ＜0.002%
Injection Volume Accuracy Error ±1%
Sample Positions 120
Injection Volume 1~100μL
UV Detector
Baseline Noise ≤2.0*10-6Au
Baseline Drift ≤1*10-5Au/h
Mini Detection Concentration ≤3.0*10-9g/mL (naphthalene/methanol)
Spectral Range 188~900nm
Wavelength Error ≤±0.1nm
Wavelength Repeatability ≤±0.1nm
Linearity Range ≥103
DA Detector
Baseline Noise ≤4*10-5Au
Baseline Drift ≤3*10-5Au/h
Mini Detection Concentration ≤2*10-8g/mL
Spectral Range 190~800nm
Wavelength Error ≤±0.1nm
Wavelength Repeatability ≤±0.1nm
Linearity Range ≥ 104
ELS Detector
Baseline Noise ≤ 0.0037mV
Baseline Drift ≤ 0.0026mV/30min
Evaporation Gas Flow Range (0 ~ 3) SLM
Atomization Temperature Range Room temperature ~ 90℃
Evaporation Temperature Range Room temperature～110℃
Detection Chamber Temperature Range Room temperature～60℃
Input Air Pressure (4 ~ 7) bar
FL Detector
Baseline Noise ≤ 5×10-6 FU
Baseline Drift ≤ 2 × 10-5 FU/30min
Spectral Range (200 ~ 650) nm
Wavelength Error ± 0.1 nm
Linearity Range ≥ 104
RI Detector
Detection Range 0.25 ~ 512 μRIU
Linearity Range ≥ 600 μRIU
Response Time 0.1, 0.25, 0.5, 1, 1.5, 2, 3, 6 sec;
Cell Volume 8μL

Applications of High Performance Liquid Chromatography Instrument:

Wayeal LC3200 Liquid Chromatography Instrument is the ideal choice for accurate and reliable analysis of liquid samples. It is widely used in the pharmaceutical, biochemistry, food and beverage, environmental and petrochemical industries.The Wayeal LC3200 is the perfect solution for users who need a reliable and efficient liquid chromatography instrument. With its unbeatable performance and convenient interface, it is the perfect choice for any laboratory.
