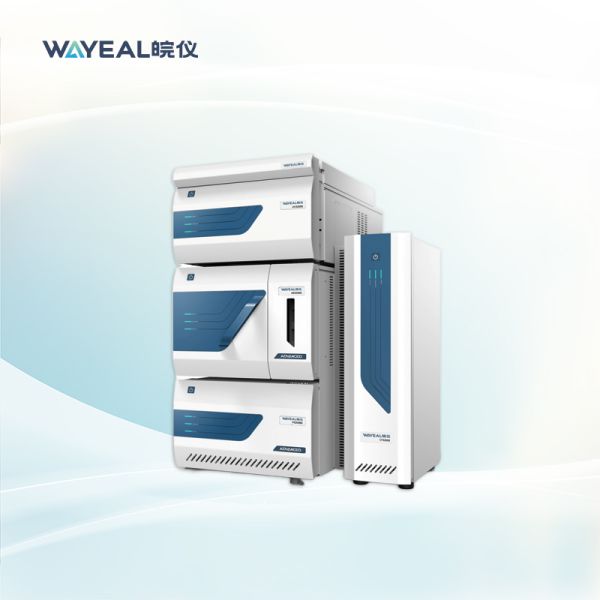

HPLC Liquid Chromatography Machine With Flow Rate 0.001 - 10 mL/Min
HPLC Liquid Chromatography Machine With Flow Rate 0.001 - 10 mL/Min
HPLC Liquid Chromatography Machine With Flow Rate 0.001 - 10 mL/Min
HPLC Liquid Chromatography Machine With Flow Rate 0.001 - 10 mL/Min
HPLC Liquid Chromatography Machine With Flow Rate 0.001 - 10 mL/Min
HPLC Liquid Chromatography Machine With Flow Rate 0.001 - 10 mL/Min
HPLC Liquid Chromatography Machine With Flow Rate 0.001 - 10 mL/Min
HPLC Liquid Chromatography Machine With Flow Rate 0.001 - 10 mL/Min
Specifications
Brand Name :
Wayeal
Model Number :
LC3200
Place of Origin :
China
Certification :
CE
MOQ :
1 Unit
Price :
Negotiate
Packaging Details :
Wooden Case
Delivery Time :
30 Days
Payment Terms :
T/T
Supply Ability :
50 Units/Month
Product Name :
High Performance Liquid Chromatography Instrument
Model :
LC3200
Column Temperature :
4-85°C
Interface :
USB/Ethernet
Weight :
158 Kg
Flow Rate :
0.001-10 mL/min
Power Supply :
220V, 50Hz
Detector :
DAD/UVD/RID/ELSD/FLD
Description

Description of High Performance Liquid Chromatography Instrument:

Wayeal's Liquid Chromatography Instrument (LC3200) is a high performance liquid chromatograph (HPLC) with advanced features to make your chromatography experiments more successful. It is equipped with the innovative SmartLab Chromatography Software, which is designed to be easy to use and intuitive, so you can quickly get your results with minimal effort. Data can be stored directly to a PC/ for further analysis and interpretation. The instrument is designed to provide reliable and accurate results in a wide variety of chromatography applications, making it an ideal choice for both research and industrial laboratories. With its robust design and intuitive software, the LC3200 is a powerful and versatile HPLC instrument that is sure to meet all your chromatographic needs.

Technical Data of High Performance Liquid Chromatography Instrument:

Manufacturer: Wayeal
Product Name: Liquid Chromatography Instrument
Working Power Supply 220V, 50Hz
Ambient Temperature 10~40°C
Relative Humidity 20~85%
Qualitative Repeatability ≤0.2%
Quantitative Repeatability ≤0.4%

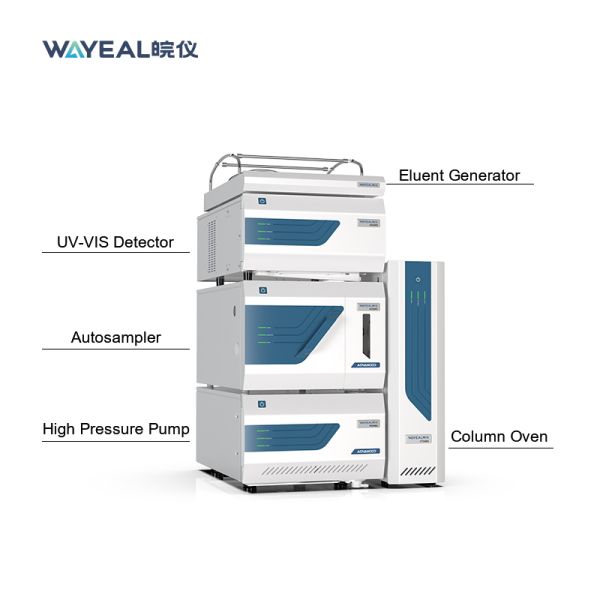

High Pressure Constant Flow Pump
Flow Rate Range 0.001~10.000mL/min
Setting Step 0.001mL/min
Pressure Range 0~42MPa
Pressure Pulsation 0.1MPa
Flow Rate Set Error ±0.2%
Flow Rate Stability RSD≤0.06%
Gradient Error ±1%
Column Oven
Temperature Control Range 4~85°C
Temperature Stability ±0.02°C
Temperature Setting Resolution 0.1°C
Autosampler
Injection Volume Repeatability ＜0.5%RSD
Linearity ＞0.9999
Cross Contamination ＜0.002%
Injection Volume Accuracy Error ±1%
Sample Positions 120
Injection Volume 1~100μL
UV Detector
Baseline Noise ≤2.0*10-6Au
Baseline Drift ≤1*10-5Au/h
Mini Detection Concentration ≤3.0*10-9g/mL (naphthalene/methanol)
Spectral Range 188~900nm
Wavelength Error ≤±0.1nm
Wavelength Repeatability ≤±0.1nm
Linearity Range ≥103
DA Detector
Baseline Noise ≤4*10-5Au
Baseline Drift ≤3*10-5Au/h
Mini Detection Concentration ≤2*10-8g/mL
Spectral Range 190~800nm
Wavelength Error ≤±0.1nm
Wavelength Repeatability ≤±0.1nm
Linearity Range ≥ 104
ELS Detector
Baseline Noise ≤ 0.0037mV
Baseline Drift ≤ 0.0026mV/30min
Evaporation Gas Flow Range (0 ~ 3) SLM
Atomization Temperature Range Room temperature ~ 90℃
Evaporation Temperature Range Room temperature～110℃
Detection Chamber Temperature Range Room temperature～60℃
Input Air Pressure (4 ~ 7) bar
FL Detector
Baseline Noise ≤ 5×10-6 FU
Baseline Drift ≤ 2 × 10-5 FU/30min
Spectral Range (200 ~ 650) nm
Wavelength Error ± 0.1 nm
Linearity Range ≥ 104
RI Detector
Detection Range 0.25 ~ 512 μRIU
Linearity Range ≥ 600 μRIU
Response Time 0.1, 0.25, 0.5, 1, 1.5, 2, 3, 6 sec;
Cell Volume 8μL

Services of High Performance Liquid Chromatography Instrument:

Liquid Chromatography Instrument offers technical support and service to meet the needs of our customers. Our team of experienced professionals are available to answer questions and provide guidance. We offer on-site or online remote control installation and maintenance, as well as remote assistance. Our technical support team is available for both pre-sales and post-sales inquiries. We also provide documentation, software updates and troubleshooting assistance.
