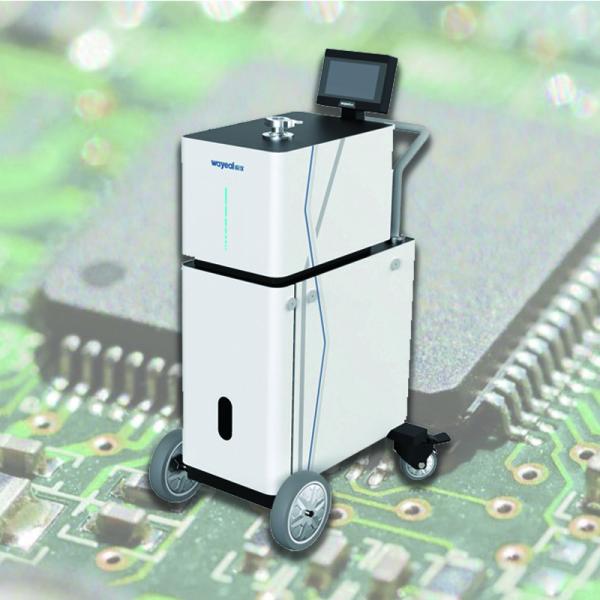

Trolley Design Helium Leak Detector For Leak Detecion Of Vacuum Pump System
Trolley Design Helium Leak Detector For Leak Detecion Of Vacuum Pump System
Trolley Design Helium Leak Detector For Leak Detecion Of Vacuum Pump System
Trolley Design Helium Leak Detector For Leak Detecion Of Vacuum Pump System
Trolley Design Helium Leak Detector For Leak Detecion Of Vacuum Pump System
Trolley Design Helium Leak Detector For Leak Detecion Of Vacuum Pump System
Trolley Design Helium Leak Detector For Leak Detecion Of Vacuum Pump System
Trolley Design Helium Leak Detector For Leak Detecion Of Vacuum Pump System
Trolley Design Helium Leak Detector For Leak Detecion Of Vacuum Pump System
Trolley Design Helium Leak Detector For Leak Detecion Of Vacuum Pump System
Specifications
Brand Name :
Wayeal
Model Number :
SFJ-16D
Place of Origin :
Anhui, China
Certification :
CE
MOQ :
1 Unit
Price :
Negotiate
Packaging Details :
Wooden Case
Delivery Time :
35 days
Payment Terms :
T/T, VISA
Supply Ability :
200 Units/Month
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode :
2.5*10-9 Pa.m3/s
Product Name :
Helium Leak Detector
Leak rate display :
Numbers, Bar Charts, Graphs
Detectable Quality :
2, 3, 4 (H2, He3, He4)
Max Allowable Leak Detection Pressure (Pa) :
1800Pa
Leak detection port :
DN25KF
Operating temperature :
0~40°C
Detection Method :
Vacuum Mode and Sniffer Mode
Description

Introduction of Helium Leak Detector:

Helium Leak Detector

The helium leak detector is an advanced product designed for vacuum detection. It utilizes the latest technology in helium leak detection systems to accurately and efficiently detect leaks in various industrial and scientific applications. With its compact size and powerful capabilities, this product is the ideal solution for detecting and locating even the smallest leaks. The Wayeal SFJ-16C helium leak detector works by using a combination of vacuum technology and mass spectrometry. The test object is placed in a vacuum chamber, and helium gas is introduced into the chamber. If there is a leak in the test object, the helium gas will flow into the chamber and be ionized by the ion source. The ions are then detected by the mass spectrometer, which can accurately locate the leak and measure its size.

Technical Parameters:

Trolley Design Helium Leak Detector for the Leak Detecion of Vacuum Pump System
Product Name Helium Leak Detector
Communication Interface RS232/485, LAN
I/O Input output interface 8 Inputs, 8 Outputs
Detection Method Helium Leak Detection
Operating Temperature 0~40°C
Mini Leak Detection Rate (Pa·m3/s)/Sniffer Mode 2.5*10-9 Pa·m3/s
Mini Leak Detection Rate (Pa·m3/s)/Vaccum Mode 5*10-13 Pa·m3/s
User Interface 7 inch Color Touch Screen
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Diamension 755*467*1180mm
Leak Rate Display Numbers, Bar Charts, Graphs
Keywords Mass Spectrometer Leak Detector, vaccum leak detection devices, vacuum detection equipment
Respones Time(s) ＜ 1s
Startup Time (min) ≤1.58min
Backing Pumps Rotary Vane Vaccum Pump
MES Interface Standard
Diamensions 755*467*1180mm
Power Supply AC220V, 50Hz/60Hz
Language Chinese and English

Applications of Helium Leak Detector:

Helium Leak Detector - Wayeal SFJ-16D

Wayeal SFJ-16D helium leak detector is widely used in industries such as aerospace, automotive, electronics, medical equipment, and more. It is suitable for detecting leaks in various components, such as valves, pipes, tanks, and seals.

Features of Helium Leak Detector

High sensitivity and accuracy - Wayeal SFJ-16C can detect leaks as small as 10^-12 mbar·l/s.

Fast detection speed - It only takes a few seconds to complete the leak detection process, greatly improving efficiency.

User-friendly interface - The leak rate can be displayed in numbers, bar charts, or graphs, making it easy for users to understand.

Durable and reliable - The ion source is made of Iridium Coated Yttrium Oxide, ensuring a long service life and stable performance.

Flexible communication interface - RS232/485 and LAN interfaces allow for easy data transfer and remote control.

Why choose Wayeal SFJ-16D Helium Leak Detector

1. High-quality components - Wayeal SFJ-16C uses imported ion sources and vacuum pumps to ensure stable and reliable performance.

2. Easy to operate - With a user-friendly interface and simple operation, it can be used by both experienced technicians and beginners.

3. Customizable settings - The leak detector can be customized according to different testing requirements, making it suitable for a wide range of applications.

4. Excellent after-sales service - Wayeal provides professional technical support and timely maintenance services to ensure customer satisfaction.

Trolley Design Helium Leak Detector For Leak Detecion Of Vacuum Pump System

Methods of Helium Leak Detection

Negative Pressure Method

Trolley Design Helium Leak Detector For Leak Detecion Of Vacuum Pump System

Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Trolley Design Helium Leak Detector For Leak Detecion Of Vacuum Pump System

Sniffer Method

Trolley Design Helium Leak Detector For Leak Detecion Of Vacuum Pump System

Trolley Design Helium Leak Detector For Leak Detecion Of Vacuum Pump SystemTrolley Design Helium Leak Detector For Leak Detecion Of Vacuum Pump System

Trolley Design Helium Leak Detector For Leak Detecion Of Vacuum Pump System
