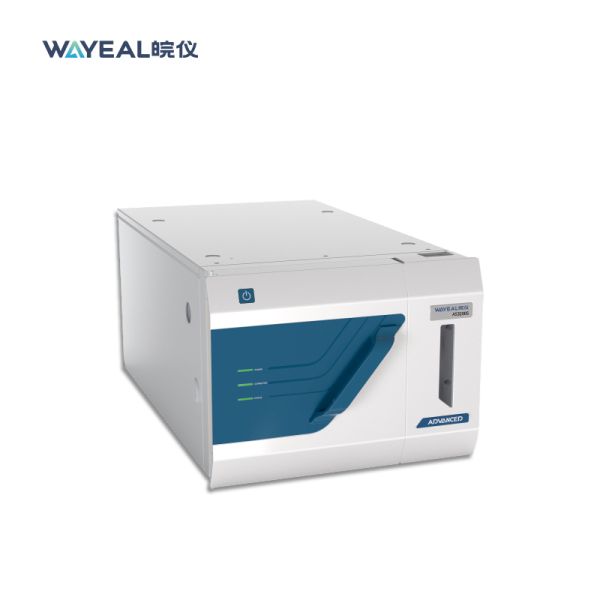

ODM FLD High Performance Liquid Chromatography Instrument System for Vitamins Analysis
ODM FLD High Performance Liquid Chromatography Instrument System for Vitamins Analysis
ODM FLD High Performance Liquid Chromatography Instrument System for Vitamins Analysis
ODM FLD High Performance Liquid Chromatography Instrument System for Vitamins Analysis
ODM FLD High Performance Liquid Chromatography Instrument System for Vitamins Analysis
ODM FLD High Performance Liquid Chromatography Instrument System for Vitamins Analysis
ODM FLD High Performance Liquid Chromatography Instrument System for Vitamins Analysis
ODM FLD High Performance Liquid Chromatography Instrument System for Vitamins Analysis
Specifications
Brand Name :
Wayeal
Model Number :
LC3200
Certification :
ISO, CE
Place of Origin :
Anhui, China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30 Pieces Per Month
Delivery Time :
20 days
Packaging Details :
One piece per wooden case
Product Name :
High Performance Liquid Chromatograph Instrument
Flow Rate Range :
0.001-10.000mL/min
Flow Setting Error :
±0.2%
Quantitative Repeatability :
≤ 0.4% RSD
Flow Rate Stability: :
RSD≤0.06%
Gradient Error :
±1%
Description

Wayeal Hplc System for Vitamins Analysis High Performance Liquid Chromatograph Instrument Price

Introduction of Liquid Chromatography Instrument

The high performance liquid chromatography instrument is mainly used for the analysis of organic compounds with high boiling point, non-volatile, heat unstable and large molecular weight. It consists of a reservoir, pump, injector, column, detector, recorder and several other parts. There are binary high pressure and quaternary low pressure modes availiable. The column oven is equipped with a refrigeration function as standard, extending the application range of the system. A variety of detectors are available, such as DAD, ELSD, FLD, etc.

Parameters of Liquid Chromatography Instrument

HPLC Liquid Chromatography Instrument with Quartnary Pump UV Detector
Physical Specifications
Power Requirements 220V, 50Hz
Ambient Temperature 10-40℃
Ambient Humidity 20-85% relative humidity
System Specification
Qualitative Repeatability RSD≤0.2%
Quantitative Repeatability RSD≤0.4%
Pump System
Flow Rate Range 0.001-10.000mL/min
Max Operating Pressure 42MPa
Pressure Pulsation 0.1MPa( Test condition: 10MPa , at 1.0mL/min methanol)
Flow Rate Set Error ±0.2%
Flow Rate Stability RSD≤0.06%
Gradient Error ±1%
Column Oven
Temperature Setting Range 4 °C ~ 85 °C
Temperature Stability ≤0.2°C/h
Temperature Controlling Precision ±0.1 °C
Autosampler
Injection Volume Repeatability < 0.5% RSD
Linearity >0.999
Cross Contamination <0.002%
Sample Positions 120
Syringe 250μL( Standard, with 500μL,1000μL, 2500μL optionals)
Sample Loop 20μL( Standard, with 50μL, 100μL, 200μL optional)
Optional Sample Chamber Cooler 4 °C ~ 30 °C(4 °C lowest)

Features of Liquid Chromatography Instrument

1. A mainstream modular design, providing a comprehensive suite of system monitoring functions to meet abroad range of detection requirement.


2. Incorporates custom-designed, acetonitrile-resistant check valves.

3. Equipped with a newly designed cam profile that uses electronic pulsation suppression and solventcompression compensation technology, reducing pressure fluctuations and ensuring higher reproducibilityof results significantly.


4. Built-in online cleaning function for the plunger rod.

5. Equipped with a 1800 lines/mm grating.


6. Offers options with Uv, ELSD (Evaporative Light Scattering Detector), FLD (Fluorescence Detector), DAD(Diode Array Detector), and RlD (Refractive Index Detector).

7. Integrates a fully intelligent chromatography workstation.

Application of Liquid Chromatography Instrument

Food, medicine, chemical industry, agriculture, etc.
