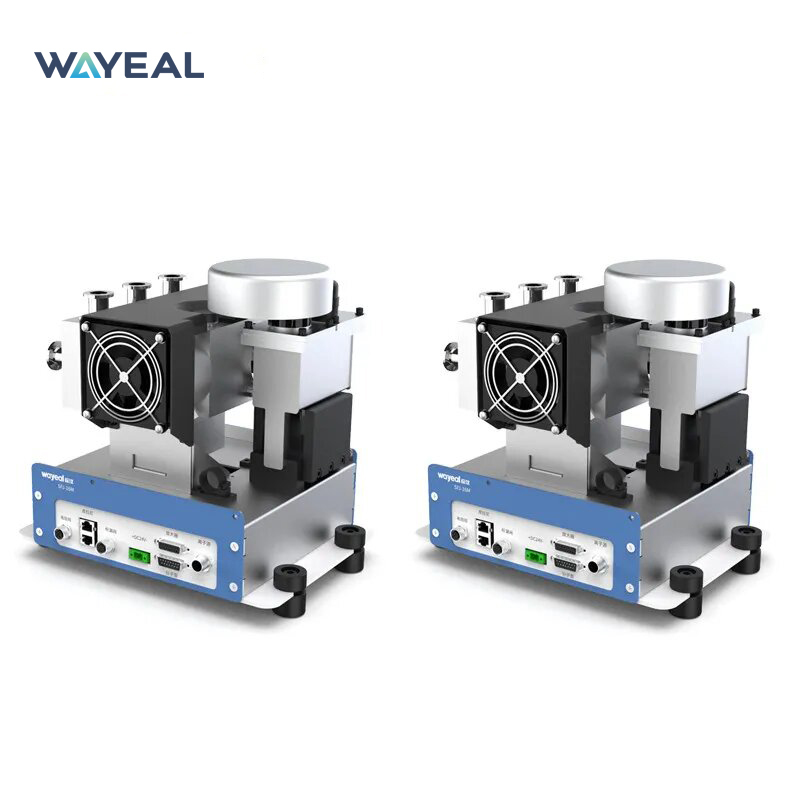

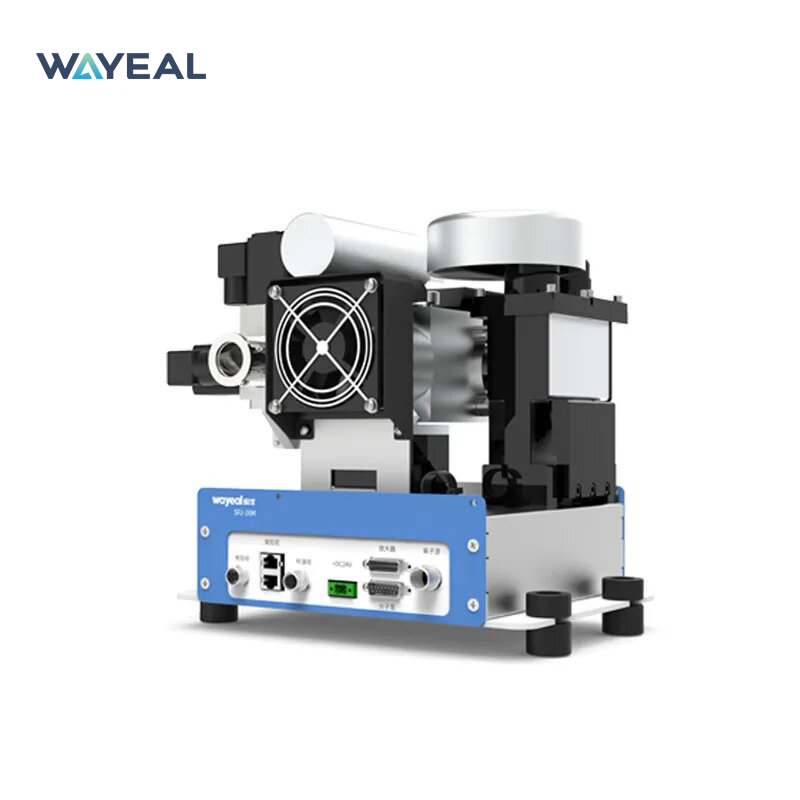

24V Modular Vacuum Helium Mass Spectrometer Leak Detector
24V Modular Vacuum Helium Mass Spectrometer Leak Detector
24V Modular Vacuum Helium Mass Spectrometer Leak Detector
24V Modular Vacuum Helium Mass Spectrometer Leak Detector
Specifications
Brand Name :
Wayeal
Model Number :
SFJ-16M
Certification :
ISO90001, CE
Place of Origin :
Anhui, China
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 Pieces Per Month
Delivery Time :
15 Days
Packaging Details :
1 Piece Per Wooden Case
Product Name :
Modular Helium Leak Detector
Voltage :
DC24V
Operation Temperature :
0-40°C
Language Support :
English
Pakaging :
Wooden case or Customized
Customized :
OEM&ODM
Description

Modular Leak Detector Vacuum Helium Leak Tester Detector

Introduction of Helium Leak Detector

The modular helium mass spectrometer leak detector adopts modular structure design, small size, light weight, easy system integration, widely used in various automated assembly lines. It is characterized by high detection sensitivity, high speed and wide application range.

Parameters of Helium Leak Detector

SFJ-16M Helium Leak Detector

Performance Indicators

Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode

Vacuum Mode (ULTRA):5.0×10-13 (helium pumping speed >5 l/s)
Vacuum mode (FINE):1.0×10-12 (helium pumping speed 2.5 L /s)

Minimum detectable leak rate
(Pa·m3/s)/ sniffer mode

5.0×10-8

Response time(s)

<1

Startup time(min)

≤95s

Leakage detection range
(Pa·m3/s)

5.0×10-13~1.0×10-3

Leakage rate display range
(Pa·m3/s)

1.0×10-13~1.0×10-3

Maximum allowable leak detection pressure(Pa)

1500

Detectable quality

2,3,4(H2 , He3, He4)

Basic Configuration

Man-machine interface

5 "color LCD Touch Screen

Ion source

2pcs, iridium coated yttrium oxide, automatic switching

I/O Input/output interface

Eight inputs and eight outputs

Communication interface

RS232/485,LAN

MES interface

Standard

Physical size of instrument
(W)×(D)×(H),mm

592 * 498 * 370mm

Specifications of leak detection port

DN16 KF/2pcs

Power Supply

DC24V

Operating temperature

0-40ºC

Power

240W

Display language

Both Chinese and English

Leakage rate display

Figure, bar chart, curve chart

Features of Helium Leak Detector

1. The leakage rate value can be read in display modes of digital, bar and trend charts;
2. One-click automatic clearing of helium background;

3. Unique gas circuit design, relatively low particulate interference;
4. Self-protection prevents the background from being polluted;

5. Imported molecular pump, double iridium band ion source

Applications of Helium Leak Detector


New energy battery
Automobile refrigeration
Analytical instruments
Power plants
Pressure vessels
Precision machining

24V Modular Vacuum Helium Mass Spectrometer Leak Detector

24V Modular Vacuum Helium Mass Spectrometer Leak Detector

24V Modular Vacuum Helium Mass Spectrometer Leak Detector

24V Modular Vacuum Helium Mass Spectrometer Leak Detector

24V Modular Vacuum Helium Mass Spectrometer Leak Detector

24V Modular Vacuum Helium Mass Spectrometer Leak Detector
