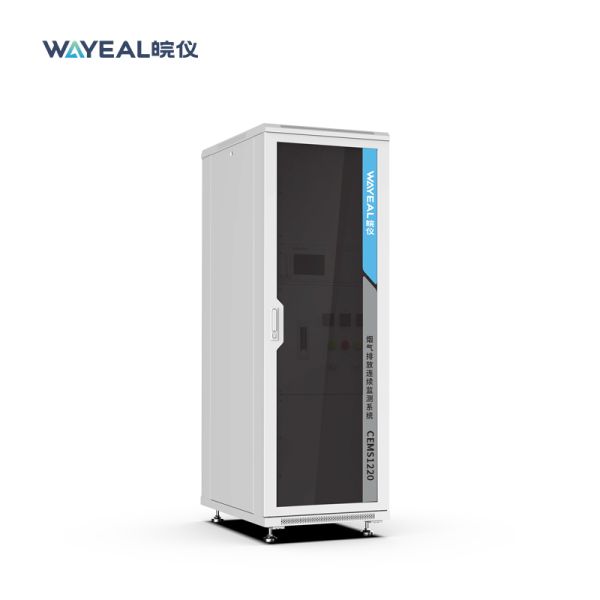

ODM Continuous Environmental Monitoring System Cems Instrument
ODM Continuous Environmental Monitoring System Cems Instrument
Specifications
Brand Name :
Wayeal
Model Number :
CEMS1250
Certification :
ISO, CE
Place of Origin :
Anhui, China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
20 Pieces Per Month
Delivery Time :
25 days
Packaging Details :
One piece per wooden case
Product Name :
Continuous Monitoring System for Flue Gas Emission
Dimension :
930*730*2010mm
Weight :
177KGS
Measure Method :
UV Differential Method
Usage :
Gaseous pollutant monitoring
Application area :
Thermal power plants
Description

Wayeal Continuous Flue Gas Emission Monitoring System for Dust Concentration Detection

Product Introduction

The CEMS1250 system consists of four sub-systems: monitoring of gaseous pollutants (SO2, NO, O2, etc.), monitoring of flue gas parameters (temperature, pressure, flow rate, humidity, etc.) and data acquisition and processing. The gaseous pollutants are measured using the UV differential method for SO2 and NO, the electrochemical method for O2, and the temperature sensor for flue gas.

Product Parameter

Continuous Flue Gas Emission Monitoring System for Dust Concentration Detection
Product Size 930*730*2010mm
Weight 177KGS
Measure Method UV Differential Method
Nitrogen Oxide Measurement Heat Resistance Moisture Meter
Contaminant Range SO2 concentration 0-45/100 mg/m3
NOX concentration 0-45/100 mg/m3
O2 content 0-25%
Pre-processing Condensing Method

Product Performance

1. Output processing system with real-time on-site data transmission, remote fault diagnosis, report statistics and graphical data analysis

2. Simple structure of the whole system, wide dynamic range, strong real-time, flexible networking and low operating costs

3. SO2, NO gas analysis using differential absorption spectroscopy (DOAS) technology, effectively solving the impact of water, and other factors on the measurement accuracy.

Industry Application

Industrial pollutant gases

Thermal power plants

Industrial kilns, industrial boilers

Residential heating boilers
