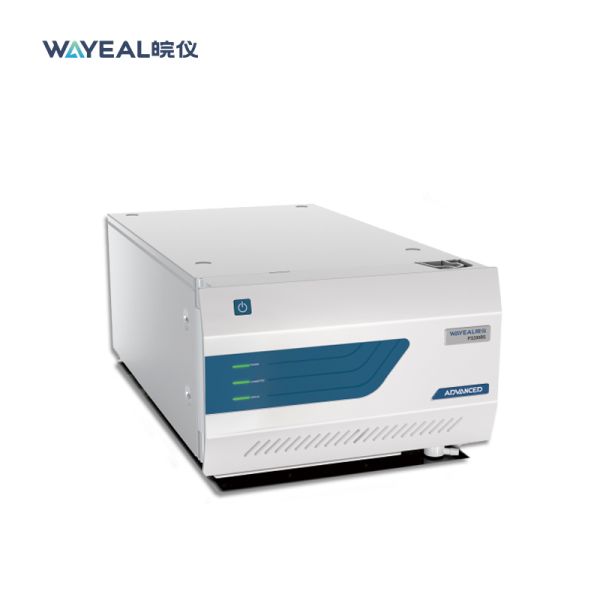

FLD Detector HPLC Chromatography Machine In Pesticide Residue Analysis
FLD Detector HPLC Chromatography Machine In Pesticide Residue Analysis
FLD Detector HPLC Chromatography Machine In Pesticide Residue Analysis
FLD Detector HPLC Chromatography Machine In Pesticide Residue Analysis
FLD Detector HPLC Chromatography Machine In Pesticide Residue Analysis
FLD Detector HPLC Chromatography Machine In Pesticide Residue Analysis
FLD Detector HPLC Chromatography Machine In Pesticide Residue Analysis
FLD Detector HPLC Chromatography Machine In Pesticide Residue Analysis
FLD Detector HPLC Chromatography Machine In Pesticide Residue Analysis
FLD Detector HPLC Chromatography Machine In Pesticide Residue Analysis
Specifications
Brand Name :
Wayeal
Model Number :
LC3200
Certification :
ISO, CE
Place of Origin :
Anhui, China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30 Pieces Per Month
Delivery Time :
30 days
Packaging Details :
Wooden Case
Product Name :
HPLC Liquid Chromatography Instruments
Sample Capacity :
120 Vials
Optional Sample chamber Cooler :
4 °C ~ 30 °C(4 °C lowest)
Injection volume Range :
1-100μL
Temperature Stability :
≤0.2°C/h
LOD :
5.0×10-9g/mL (naphthalene/methanol)
Description

FLD Detector High Pressure Liquid Chromatography Machine in Pesticide Residue Analysis

Description of Liquid Chromatography Instrument

High-performance liquid chromatography or high-pressure liquid chromatography (HPLC) is a chromatographic method that is used to separate a mixture of compounds in analytical chemistry and biochemistry so as to identify, quantify or purify the individual components of the mixture. In very small amounts, the sample mixture to be separated and tested is sent into a stream of mobile phase percolating via a column. The mixture moves through the column at varying velocities and interacts with the sorbent, also known as the stationary phase.

Parameters of Liquid Chromatography Instrument

FLD Detector High Pressure Liquid Chromatography Machine in Pesticide Residue Analysis
Physical Specification
Power Requirements 220V,50HZ
Ambient Temperature 4-40℃
Ambient Humidity 20-85% relative humidity(non-condensing)
System
Qualitative repeatability(Retention time) RSD≤0.3%
Quantitative repeatability(Area) RSD≤0.6%
Pump
Flow Rate Range 0.0001-10.000mL/min( increments :0.0001 mL/min)
Max Operating Pressure 42MPa
Pressure Pulsation <0.1MPa( Test condition: 10MPa , at 1.0ml/min methanol)
Flow Accuracy ±0.2%( Test condition: 10MPa , at 1.0ml/min methanol)
Flow Precision RSD≤0.06%( Test condition: 10MPa , at 1.0ml/min methanol)
Gradient Accuracy ±1%
Column Oven
Temperature Setting Range 5 °C ~ 85 °C
Temperature Stability ≤0.2°C/h
Temperature Controlling Precision ±0.1 °C
Autosampler
Injection Volume Precision

<0.25%RSD( full loop) ;

<0.5%RSD( partial loop) ;

<1%RSD( no waste)
Linearity >0.999
Cross Contamination(Carry Over) <0.01%
Sample Capacity 120 Samples( 1.5ml vials)
Syringe 250 μL( Standard, with 500μL,1000μL, 2500μL optionals)
Sample Loop 20μL( Standard, with 50μL, 100μL, 200μL optional)

FLD Detector
Noise 1×10-5Au
Drift 2×10-4Fu/30min
LOD 5.0×10-10g/mL (naphthalene/methanol)
Wavelength Range 200-650nm
Wavelength Reproducibility ±2 nm
Linearity ≥1.0×104

Features of Liquid Chromatography Instrument

1. Two optional modes: binary high pressure and quaternary low pressure

2. Wavelength scaning: the absorption spectrum can be scanned in the entire range of the light source.

3. A variety of detectors available, such as DAD, ELSD and FLD.

4. Dual-wavelength detection, two wavelengths canbe detected at the same time.
