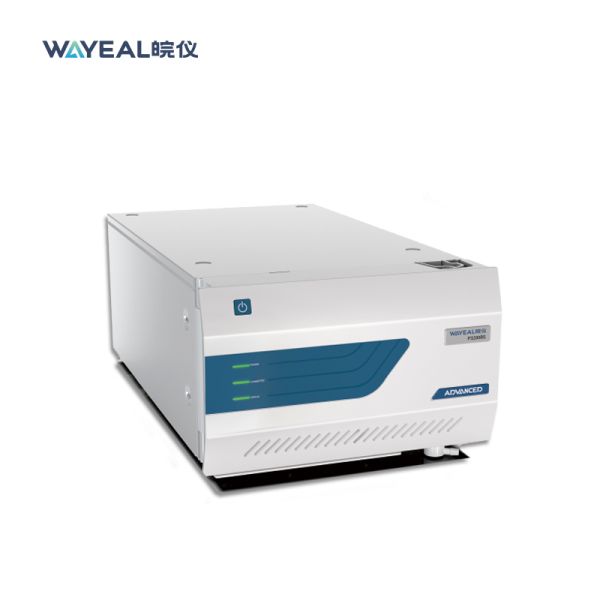

Quaternary Pump HPLC Liquid Chromatography For Pharmaceutical Analysis
Quaternary Pump HPLC Liquid Chromatography For Pharmaceutical Analysis
Quaternary Pump HPLC Liquid Chromatography For Pharmaceutical Analysis
Quaternary Pump HPLC Liquid Chromatography For Pharmaceutical Analysis
Quaternary Pump HPLC Liquid Chromatography For Pharmaceutical Analysis
Quaternary Pump HPLC Liquid Chromatography For Pharmaceutical Analysis
Quaternary Pump HPLC Liquid Chromatography For Pharmaceutical Analysis
Quaternary Pump HPLC Liquid Chromatography For Pharmaceutical Analysis
Specifications
Brand Name :
Wayeal
Model Number :
LC3200
Certification :
ISO, CE
Place of Origin :
Anhui, China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30 Pieces Per Month
Delivery Time :
30 days
Packaging Details :
Wooden Case
Product Name :
HPLC Liquid Chromatography Instrument
Detector :
UVD/ELSD/RID/FLD/DAD
Wavelength Range :
188 - 900 nm
Wavelength error :
≤ ±0.5 nm
Wavelength repeatability :
≤ ±0.1 nm
Baseline Noise :
0.8 × 10-5 AU
Description

Quatanary Pump HPLC High Performance Liquid Chromatography Instrument for Pharmaceutical Analysis

Description of Liquid Chromatography Instrument

The high performance liquid chromatography instrument is used to analyze less-volatile and thermal-unstable organic compounds with high boiling point and large molecular weight. It consists of reservoir, pump, sample injector, chromatographic column, detector and recorder.

Parameters of Liquid Chromatography Instrument

Binary Pump HPLC High Performance Liquid Chromatography With UV ELSD DAD Detetcor

Pump
Gradient Quaternary low pressure
Flow Rate Range 0-11.0000mL/min
Flow Rate Setpoint Error ±0.2%
Flow Rate Repeatability ≤ 0.08% RSD
Gradient Stability ＜ 0.5% RSD
Maximum Working Pressure 42MPa
In-line Degassing 4
Column Oven
Temperature Setting Range 4 ℃ ~ 85 ℃
Temperature Stability ≤±0.02 ℃
Autosampler
Injection Volume 0.1-20.0μL
Sample Capacity 120 Vials
Injection Linearity r ＞ 0.9999
Inlet Cross-contamination ＜ 0.002%
Accuracy Error of Injection Volume ±0.2μL
Injection Volume Repeatability ＜ 0.3% RSD
Injection Speed 15 s
UV Detector
Wavelength Range 188 - 900 nm (optional tungsten lamp)
Wavelength Error ≤ ±0.5 nm
Wavelength Repeatability ≤ ±0.1 nm
Baseline Noise 0.8 × 10-5 AU
Baseline Drift 1.0 × 10-4 AU/h
Linear Range 2.5AU
DAD Detector
Wavelength Range 190 - 800 nm
Wavelength Error ≤ ±1.0 nm
Wavelength Repeatability ≤ ±0.1 nm
Baseline Noise 6× 10-5 AU
Baseline Drift 1 × 10-3 AU/h
Linear Range 2.0 AU
Workstation SmartLab( Self-development)



Characteristics of Liquid Chromatography Instrument

1. Mainstream split design, complete system testing function, to meet most testing needs

2. The new cam curve design adopts electronic pulsation suppression technology and solvent

3. Compression compensation to further reduce pressure fluctuations and ensure higher repeatability of test results.

4. Optional UV, ELSD, FLD,DAD and RID detectors.

Quaternary Pump HPLC Liquid Chromatography For Pharmaceutical Analysis

Quaternary Pump HPLC Liquid Chromatography For Pharmaceutical Analysis

Quaternary Pump HPLC Liquid Chromatography For Pharmaceutical AnalysisQuaternary Pump HPLC Liquid Chromatography For Pharmaceutical AnalysisQuaternary Pump HPLC Liquid Chromatography For Pharmaceutical AnalysisQuaternary Pump HPLC Liquid Chromatography For Pharmaceutical Analysis
